Omnigrad T TSC310

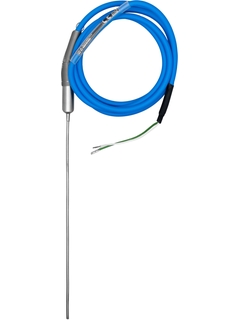

Thermocouple sensor, cable probe

Cost efficient thermocouple sensor designed for use in many process and laboratory applications

The thermocouple (TC) cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables to detect rapid temperature changes fast and accurate.

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue.

Individual configuration

Continue your selection from all possible options

Configure

Additional components

RIA45
Process meter with control unit

Multifunctional panel mounted process meter for monitoring and indication of analog measured values
More information
Compare
RIA46
Field meter with control unit

Multifunctional field meter for monitoring and indication of analog measured values
More information
Compare
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
More information
Compare

Benefits
High flexibility through user-specific insertion lengths and variable process connections
Fast response time
Different types of thermocouples according to DIN EN 60584 and ASTM E230/ANSI MC96.1: type J (Fe-CuNi), type K (NiCr-Ni)
Types of protection for...

Show more
High flexibility through user-specific insertion lengths and variable process connections
Fast response time
Different types of thermocouples according to DIN EN 60584 and ASTM E230/ANSI MC96.1: type J (Fe-CuNi), type K (NiCr-Ni)
Types of protection for use in hazardous locations: Intrinsic Safety (Ex ia) and non-Sparking (Ex nA)
NEPSI approval (Ex ia)

Show less

Field of application

The resistance thermometer is specially suited to temperature measurement in machinery, power stations and plants in gaseous or liquid media like air, steam, water and oil.

Features and specifications

Back

Details

Measuring principle

Thermocouple
Characteristic / Application

metric style

cable probe

suitable for hazardous areas

process connection as compression fitting
Thermowell / protection tube

without (not intended to use with thermowell)
Insert / probe

mineral insulated (MI), flexible
Outer diameter protection tube / Insert

2,0 mm (0,08'')

3,0 mm (0,12'')

4,5 mm (0,18'')

6,0 mm (0,24'')
Max. immersion length on request

up to 100.000,00 mm (3.937,01'')
Material protection tube/ thermowell

1.4401 (316)

Alloy 600 (2.4816)
Process connection

compression fitting:

G1/4"

G3/8"

G1/2"

NPT1/4"

NPT1/2"
Tip shape

straight
Operating temperature range

Type K:

-40 °C ...1.100 °C

(-40 °F ...2.012 °F)

Type J:

-40 °C ...750 °C

(-40 °F ...1.382 °F)
Max. process pressure (static)

at 20 °C: 25 bar (363 psi)
Accuracy

class 2 acc. to IEC 60584
Response time

t50 = 1 s

t90 = 2 s
Integration head transmitter

no
Ex - approvals

ATEX II

NEPSI

IECEx
Certification

Gost Metrology

Show more
Show less

Documents / Manuals / Software

Download type
