TA555

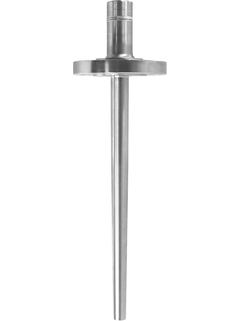

Barstock thermowell

Made of drilled barstock material. Mainly used in heavy duty or general purpose applications.

Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Sizing

Compare

Specs at a glance
Max. process pressure (static)

500 bar (7252 psi)

Maximum standard immersion length

900 mm (35,43")

Max. immersion length on request

5.000 mm (196,85")

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

TA555

Show details Hide details

Show details

Back to Quick Selection

<%feature%>

<%coding%>

<%label%>

Add to Cart

Optional add-ons

Please use the individual configurator to continue

Individual configuration

Continue your selection from all possible options

Configure

Benefits
The extension and the immersion lengths as well as the bar dimensions can be chosen according to process requirements
A wide choice of standard materials and process connections is available; other versions can be ordered according to specification
...

Show more
The extension and the immersion lengths as well as the bar dimensions can be chosen according to process requirements
A wide choice of standard materials and process connections is available; other versions can be ordered according to specification
Different grades of surface finishing are also available
The thermowell stem shape can be straight or conical
The process connection can be threaded or flanged weld

Show less

Field of application

TA555 is designed for use with resistance and thermocouple thermometers mainly in heavy duty applications.

Features and specifications

Back

Details

Measuring principle

Bar stock Thermowell
Characteristic / Application

metric style

various process connections

round extension
Head connection

internal thread:

1/2" NPT
Maximum standard immersion length

900 mm (35,43")
Max. immersion length on request

5.000 mm (196,85")
Process connection

thread:

1/2" NPT

1" NPT

flange:

ASME 1" 150 RF (B16.5)

ASME 1" 300 RF (B16.5)

ASME 1" 600 RF (B16.5)

ASME 1 1/2" 150 RF (B16.5)

ASME 1 1/2" 300 RF (B16.5)

ASME 1 1/2" 300 RTJ (B16.5)

ASME 1 1/2" 600 RF (B16.5)

ASME 1 1/2" 600 RTJ (B16.5)

ASME 2" 150 RF (B16.5)

ASME 2" 300 RF (B16.5)

ASME 2" 600 RF (B16.5)

ASME 2" 300 RTJ (B16.5)

ASME 2" 600 RTJ (B16.5)
Thermowell root diameter

24 mm (0,94")
Medium contact material

1.4401 (316)

1.4404 (316L)

1.4571 (316Ti)

2.4819 (Alloy C276)

2.4360 (Alloy 400)
Wetted part finishing (Ra)

< 0.8 μm (31.50 μin)

< 1.6 μm (63.00 μin)
Tip shape

straight

conical
Temperature range

-200...700 °C (-328...1.292 °F)
Max. process pressure (static)

500 bar (7252 psi)
Max. process pressure at 400 °C

300 bar (4351 psi)

Show more
Show less

Documents / Manuals / Software

Download type

Filter

Technical Information
Omnigrad TA series
Industrial protecting tubes

Technical Information (TI)
Technical information TA555
Industrial protecting tube
omnigrad TA555
Heavy duty - General purpose
From round bar stock - Ø 34 mm
1" NPT threaded or flanged weld type
Also ME U 819.04 - type 6

Technical Information (TI)
Technical Information
E+H
Qualified welding processes
for thermowells

Technical Information (TI)
Thermowells
Operating instructions for thermowells for EAC approval
