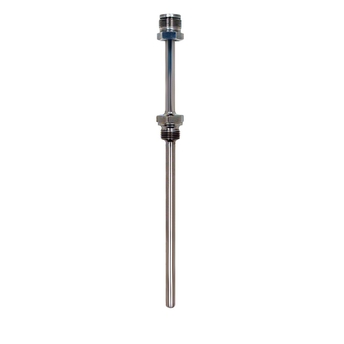

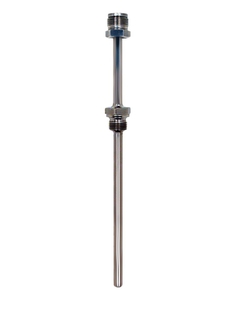

Product picture protection tube TW10

TW10
Protection tube

Designed for use in the fine chemicals industry and generally for almost all industrial processes

TW10
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Max. process pressure (static)

    50 bar (725 psi)

  • Maximum standard immersion length

    4.000 mm (157,48")

  • Max. immersion length on request

    10.000 mm (393,7")

Field of application

This protection tube is an important component for temperature measurement points for almost all industrial processes, especially for fine chemicals industries. It is used to protect the measuring insert or sensor elements from aggressive process media, high pressures and flow rates from the temperature sensor itself and thereby enables the thermometer to be exchanged during operation.

TW10 protection tubes are designed for the use in the fine chemicals industry but can also be used for generic applications.

Benefits

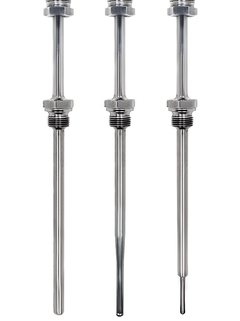

  • Tip of the protection tube with a reduced diameter or tapered for a faster response time

  • Customized immersion length

  • Surface finishing Ra < 0.8 μm

  • SS 316L/1.4404, SS 316Ti/1.4571 and Hastelloy C for the "wetted" parts

  • The common threaded process connections are supplied as standard; others are available on request

  • Material certification (3.1.B)

  • Test with penetrant liquids on welds

Predecessor

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity
