TW11

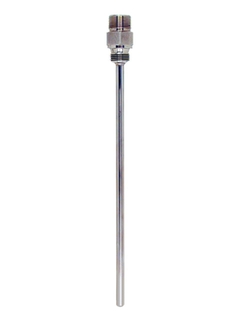

Protection tube for temperature sensors

Designed for use in the fine chemicals industry and generally for almost all industrial processes

This protection tube is an important component for temperature measurement points for almost all industrial processes, especially for fine chemicals industries. It is used to protect the measuring insert or sensor elements from aggressive process media, high pressures and flow rates from the temperature sensor itself and thereby enables the thermometer to be exchanged during operation.

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configuratorto continue
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue

Individual configuration

Continue your selection from all possible options

Configure

Benefits
Tip of the thermowell with a reduced diameter or tapered for a faster response time
Customized immersion length
Surface finishing Ra < 0.8 μm
SS 316L/1.4404 and SS 316Ti/1.4571 for the "wetted" parts
The common threaded process connections are supplied as...

Show more
Tip of the thermowell with a reduced diameter or tapered for a faster response time
Customized immersion length
Surface finishing Ra < 0.8 μm
SS 316L/1.4404 and SS 316Ti/1.4571 for the "wetted" parts
The common threaded process connections are supplied as standard; others are available on request
Material certification (3.1.B)
Test with penetrant liquids on welds

Show less

Field of application

TW11 protection tubes are designed for the use in the fine chemicals industry but can also be used for generic applications.

Features and specifications

Back

Details

Measuring principle

Fabricated Thermowell
Characteristic / Application

metric style

DIN 43772 Form 2/3

threaded process connection

without neck
Head connection

external thread:

M24 x 1.5

1/2" NPT
Maximum standard immersion length

4.000 mm (157,48")
Max. immersion length on request

10.000 mm (393,7")
Process connection

thread:

G3/8"

G1/2"

G3/4"

1/2" NPT

3/4" NPT

R1/2"

R3/4"

R1"

M20 x 1.5
Thermowell root diameter

9 mm (0,35")

11 mm (0,43")

12 mm (0,47")

14 mm (0,55")

15 mm (0,59")
Medium contact material

1.4401 (316)

1.4404 (316L)

1.4571 (316Ti)
Wetted part finishing (Ra)

< 0.8 ìm (31.50 ìin)
Tip shape

straight

reduced

tapered
Temperature range

-200...700 °C (-328...1.292 °F)
Max. process pressure (static)

50 bar (725 psi)
Max. process pressure at 400 °C

depends on process connection

Show more
Show less

Documents / Manuals / Software

Download type

Filter

Technical Information
E+H
Qualified welding processes
for thermowells

Technical Information (TI)
TW11
Pipe thermowell without extension neck, threaded process connection

Technical Information (TI)
Thermowells
Operating instructions for thermowells for EAC approval

Operating Instruction (BA)
Mesure de température
Capteurs et transmetteurs pour les industries de process

Fields of Activities (FA)

12/19

fr
温度测量
过程工业用温度传感器和温度变送器

Fields of Activities (FA)

12/14

Chinese
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznych

Fields of Activities (FA)

10/14

Polish
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.

Fields of Activities (FA)

06/13

Russian
Misura della temperatura
Termometri e trasmettitori
per l'industria di processo

Fields of Activities (FA)

04/18

Italian
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso

Fields of Activities (FA)

04/18

Spanish
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler

Fields of Activities (FA)

03/13

Turkish
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry

Fields of Activities (FA)

03/13

English
Temperature measurement
Thermometers and transmitters for the process industry

Fields of Activities (FA)

02/20

English
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie

Fields of Activities (FA)

02/20

German
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли

Competence Brochure (CP)

08/11

Russian
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленности

Competence Brochure (CP)

04/10

Russian
ACCESSORIES: PIPE THERMOWELL
Product Code: TW11-
Declaration Number: HE_00516_01.17
Manufacturer Specification: RoHS

Manufacturer Declaration

English
ACCESSORIES: BAR STOCK THERMOWELL, ACCESSORIES: HOUSING, ACCESSORIES: PIPE THERMOWELL, ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: THERMOWELLS, ACCESSORIES: T_INSERTS, Plugs TC direct contact, Terminal Head
Product Code: TT511-, TT411-, TS111-, TPR300-, TPR100-, TPC300-, TPC200-, TPC100-, TET90-, TET300-, TEC300-, TA576-, TA575-, TA572-, TA571-, TA570-, TA566-, TU111-, TU121-, TU211-, TU221-, TU51-, TU52-, TU53-, TU54-, TU67-, TW10-, TW11-, TW12-, TW13-, TW15-, TW251-, TWF11-, TWF16-, TA565-, GPTC-, MLTWS01-, OTA30A-, OTA30D-, OTA30H-, OTW92-, OTW93-, OTW94-, OTW95-, OTW96-, TA20A-, TA20B-, TA20D-, TA20J-, TA20R-, TA20W-, TA21E-, TA562-, TA560-, TA557-, TA556-, TA555-, TA550-, TA541-, TA540-, TA535-, TA414-, TA30S-, TA30R-, TA30P-, TA30H-, TA30D-, TA30A-, TA21H-
Declaration Number: EC_00544_01.17

EU Declaration

German , English , fr
ACCESSORIES: BAR STOCK THERMOWELL, ACCESSORIES: PIPE THERMOWELL, ACCESSORIES: THERMOWELLS
Product Code: TWF16-, TWF11-, TW47-, TW45-, TW251-, TW15-, TW13-, TW12-, TW11-, TW10-, TT511-, TT411-, TA576-, TA575-, TA572-, TA571-, TA570-, TA566-, TA565-, TA562-, TA560-, TA557-, TA556-, TA555-, TA550-, TA541-, TA540-, TA535-, TA414-, MLTWS01-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC RU C-IT.AZ01.B.02466

Miscellaneous

Russian
ACCESSORIES: BAR STOCK THERMOWELL, ACCESSORIES: PIPE THERMOWELL, ACCESSORIES: THERMOWELLS
Product Code: TWF16-, TWF11-, TW47-, TW251-, TW15-, TW13-, TW12-, TW11-, TW10-, TT511-, TT411-, TA576-, TA575-, TA572-, TA571-, TA570-, TA566-, TA565-, TA562-, TA560-, TA557-, TA556-, TA555-, TA550-, TA541-, TA540-, TA535-, TA414-, MLTWS01-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC RU D-IT.MU62.B.03144

Miscellaneous

Russian

Show more
Show less

Predecessor
- TA11

Successor
- Thermowell TT131

  Thermowell for RTD and TC assemblies specially designed for use in industrial applications, in particular in the chemical, oil & gas and power industries
