Measuring principle
Differential pressure
-
Product headline
Calculated volume or mass flow measurement. dp primary element (venturi).

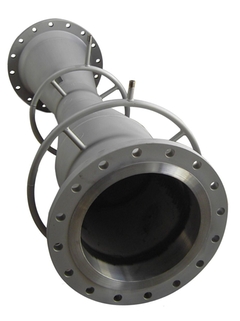

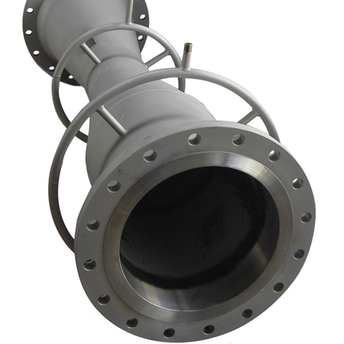

Classical venturi tube. -
Sensor features
Internationally standardized ISO5167-4.
Machined, welded (rolled) or -as cast- version.
Meter runs.
Weld-In or flanged versions.
Special materials.
Compact or remote design.
Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.
Deltabar S/M differential pressure transmitter. -
Nominal diameter range
DN 50...2000
2" ... 80" -
Max. measurement error
typically 1...2 % of calculated volume or mass acc. ISO5167 without calibration.
Uncertainty of primary element excluding uncertainty of density or compensation. -
Measuring range
15 ... 1'000'000 m³/h
-
Max. process pressure
PN2,5 ... 400
Cl.150 ... 2500 -
Medium temperature range
Compact version:
-200°C ... 200°C
-328°F ... 392°F
Remote version:
-200°C ... 1000°C
-328°F ... 1832°F -
Degree of protection
Transmitter (Deltabar):
IP67
NEMA6P -
Display/Operation
Transmitter (Deltabar):
4-line display
3 push buttons
Quick setup
HistoROM -
Outputs
Transmitter (Deltabar):
4 ... 20 mA -
Digital communication
Transmitter (Deltabar):
HART
PROFIBUS PA
FOUNDATION Fieldbus -
Hazardous area approvals
Transmitter (Deltabar):
ATEX
FM
CSA
IEC
TIIS
NEPSI
-
