Microwave flow indicator

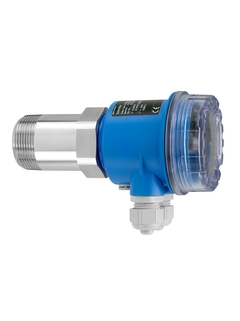

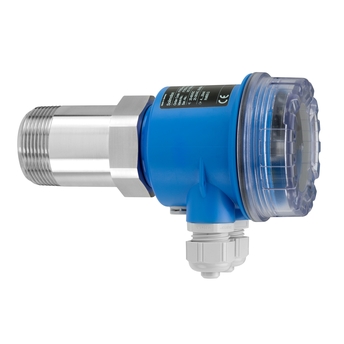

Solimotion FTR20

Solimotion FTR20 ©Endress+Hauser

For monitoring pneumatic and mechanical transport processes for bulk solids

The Solimotion FTR20 flow indicator for bulk solids is a non-contact device based on microwave technology. It is ideally suited for cost-effective monitoring of a mass flow (present or not present). The compact device can be used wherever the cost-effective monitoring of bulk solids movement is required. Individual adjustments to the application can be carried out by means of configurable functions (incl. automatic calibration).

  • Pricing after login and configuration

Quick selection

Choose from our suggested options
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

FTR20
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Optional add-ons
Please use the individual configurator to continue.
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • Sensor, transmitter and power unit mounted in one housing, which means less effort for installation and mounting

    • High safety level compliant with international explosion protection certificates

    • Flush-mounted installation, non-contact installation possible...

  • Field of application

    Building materials industry: Cement, plaster, wood chips etc.
    Chemicals: Fertilizers, plastic powder and granules, silica etc.
    Food industry: Coffee, tea, tobacco, cereals, animal feeds etc.
    Energy production: Coal, carbon dust, fly-ash, coke etc.

    • ...

Features and specifications

Back

Details

  • Measuring principle

    Microwave barrier

  • Characteristic / Application

    The flow indicator for bulk solids is a non-contact device based on microwave technology. It is ideally suited for monitoring pneumatic and mechanical transport processes for bulk solids.

  • Ambient temperature

    -40°C ... +70°C

    (-40°F...158°F)

  • Process temperature

    Standard

    -40°C ... +70°C

    (-40°F ...158°F)


    With adapter for temperature reduction:

    -40°C to +450°C

    -40°F ...+842°F)

  • Process pressure absolute / max. overpressure limit

    0.5 ... 6.8 bar abs standard

    (7.2 ... 98.6 psi abs)


    When using the adapter for temperature reduction:

    0.8 to 5.1 bar abs

    (11.6 ...74 psi abs)

  • Main wetted parts

    316Ti/1.4571

    Sensor diaphragm: PTFE or ceramic

  • Process connection

    Thread R 1½ (EN 10226)

    NPT 1½ (ASME B1.20.1)

  • Communication

    Relay SPDT

    Analog 4 - 20 mA

    Solid-state relay

  • Certificates / Approvals

    ATEX, CSA C/US, IEC Ex

  • Design approvals

    EN10204-3.1

  • Options

    Adapter for temperature reduction

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 71125444

      Electronic insert F-AA1A, FTR20, V1

      Electronic module FTR20. Non-hazardous area, relay, AC version. Compatible for devices that have been delivered until 30.04.2016. Usage: FTR20.

    • Order code 71125445

      Electronic insert F-AA1E, FTR20

      Electronic module FTR20. Non-hazardous area, relay, DC version. Compatible for devices that have been delivered until 30.04.2016. Usage: FTR20.

    • Order code 71125447

      Electronic insert F-AA2A, FTR20

      Electronic module FTR20. Non-hazardous area, 4-20mA, AC version. Usage: FTR20.

    • Order code 71125449

      Electronic insert F-AA2E, FTR20

      Electronic module FTR20. Non-hazardous area, 4-20mA, DC version. Usage: FTR20.

    • Order code 71125450

      Electronic insert F-AA3A, FTR20

      Electronic module FTR20. Non-hazardous area, solid-state-relay, AC version. Usage: FTR20.

    • Order code 71125451

      Electronic insert F-AA3E, FTR20

      Electronic module receiver. Non-hazardous area, solid-state-relay, DC version. Usage: FTR20.

    • Order code 71125452

      Electronic insert F-BA1A, FTR20

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, relay, AC version. Compatible for devices that have been delivered until 30.04.2016. Usage: FTR20.

    • Order code 71125453

      Electronic insert F-BA1E, FTR20

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, relay, DC version. Compatible for devices that have been delivered until 30.04.2016. Usage: FTR20.

    • Order code 71125454

      Electronic insert F-BA2A, FTR20

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, 4-20mA, AC version. Usage: FTR20.

    • Order code 71125455

      Electronic insert F-BA2E, FTR20

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, 4-20mA, DC version. Usage: FTR20.

    • Order code 71125456

      Electronic insert F-BA3A, FTR20

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, solid-state-relay, AC version. Usage: FTR20.

    • Order code 71125457

      Electronic insert F-BA3E, FTR20

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, solid-state-relay, DC version. Usage: FTR20.

    • Order code 71125458

      Electronic insert F-IA1A, FTR20, V1

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, relay, AC version. Compatible for devices that have been delivered until 30.04.2016. Usage: FTR20.

    • Order code 71125459

      Electronic insert F-IA1E, FTR20, V1

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, relay, DC version. Compatible for devices that have been delivered until 30.04.2016. Usage: FTR20.

    • Order code 71125460

      Electronic insert F-IA2A, FTR20

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, 4-20mA, AC version. Usage: FTR20.

    • Order code 71125461

      Electronic insert F-IA2E, FTR20

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, 4-20mA, DC version. Usage: FTR20.

    • Order code 71125462

      Electronic insert F-IA3A, FTR20

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, solid-state-relay, AC version. Usage: FTR20.

    • Order code 71125463

      Electronic insert F-IA3E, FTR20

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, solid-state-relay, DC version. Usage: FTR20.

    • Order code 71258332

      Electronic insert F-CA1E, FTR20

      Electronics FTR20. CSA General Purpose, relay, AC version. Usage: FTR20.

    • Order code 71258333

      Electronic insert F-CA1E, FTR20

      Electronics FTR20. CSA General Purpose, relay, DC version. Usage: FTR20.

    • Order code 71258334

      Electronic insert F-CA2A, FTR20

      Electronics FTR20. CSA General Purpose, 4-20mA, AC version. Usage: FTR20.

    • Order code 71258335

      Electronic insert F-CA2E, FTR20

      Electronics FTR20. CSA General Purpose, 4-20mA, DC version. Usage: FTR20.

    • Order code 71258336

      Electronic insert F-CA3A, FTR20

      Electronics FTR20. CSA General Purpose, solid-state-relay, AC version. Usage: FTR20.

    • Order code 71258337

      Electronic insert F-CA3E, FTR20

      Electronics receiver. CSA General Purpose, solid-state-relay, DC version. Usage: FTR20.

    • Order code 71258338

      Electronic insert F-CB1A, FTR20

      Electronics FTR20. CSA C/US Class II, Div. 1, Group E-G, relay, AC version. Usage: FTR20.

    • Order code 71258339

      Electronic insert F-CB1E, FTR20

      Electronics FTR20. CSA C/US Class II, Div. 1, Group E-G, relay, DC version. Usage: FTR20.

    • Order code 71258340

      Electronic insert F-CB2A, FTR20

      Electronics FTR20. CSA C/US Class II, Div. 1, Group E-G, 4-20mA, AC version. Usage: FTR20.

    • Order code 71258341

      Electronic insert F-CB2E, FTR20

      Electronics FTR20. CSA C/US Class II, Div. 1, Group E-G, 4-20mA, DC version. Usage: FTR20.

    • Order code 71258342

      Electronic insert F-CB3A, FTR20

      Electronics FTR20. CSA C/US Class II, Div. 1, Group E-G, solid-state-relay, AC version. Usage: FTR20.

    • Order code 71258344

      Electronic insert F-CB3E, FTR20

      Electronics FTR20. CSA C/US Class II, Div. 1, Group E-G, solid-state-relay, DC version. Usage: FTR20.

    • Order code 71324391

      Electronic insert F-AA1A, FTR20, V2

      Electronic module FTR20. Non-hazardous area, relay, AC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FTR20.

    • Order code 71324392

      Electronic insert F-AA1E, FTR20, V2

      Electronic module FTR20. Non-hazardous area, relay, DC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FTR20.

    • Order code 71324394

      Electronic insert F-AA1A, FTR20 (F34)

      Electronic module FTR20. Non-hazardous area, relay, AC version. Usage: FTR20.

    • Order code 71324418

      Electronic insert F-AA1E, FTR20 (F34)

      Electronic module FTR20. Non-hazardous area, relay, DC version. Usage: FTR20.

    • Order code 71324420

      Electronic insert F-AA2A, FTR20 (F34)

      Electronic module FTR20. Non-hazardous area, 4-20mA, AC version. Usage: FTR20.

    • Order code 71324423

      Electronic insert F-AA2E, FTR20 (F34)

      Electronic module FTR20. Non-hazardous area, 4-20mA, DC version. Usage: FTR20.

    • Order code 71324425

      Electronic insert F-AA3A, FTR20 (F34)

      Electronic module FTR20. Non-hazardous area, solid-state-relay, AC version. Usage: FTR20.

    • Order code 71324426

      Electronic insert F-AA3E, FTR20 (F34)

      Electronic module receiver. Non-hazardous area, solid-state-relay, DC version. Usage: FTR20.

    • Order code 71324427

      Electronic insert F-BA1A, FTR20, V2

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, relay, AC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FTR20.

    • Order code 71324428

      Electronic insert F-BA1E, FTR20, V2

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, relay, DC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FTR20.

    • Order code 71324429

      Electronic insert F-BA1A, FTR20 (F34)

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, relay, AC version. Usage: FTR20.

    • Order code 71324431

      Electronic insert F-BA1E, FTR20 (F34)

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, relay, DC version. Usage: FTR20.

    • Order code 71324433

      Electronic insert F-BA2A, FTR20 (F34)

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, 4-20mA, AC version. Usage: FTR20.

    • Order code 71324436

      Electronic insert F-BA2E, FTR20 (F34)

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, 4-20mA, DC version. Usage: FTR20.

    • Order code 71324442

      Electronic insert F-BA3A, FTR20 (F34)

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, Solid-state-relay, AC version. Usage: FTR20.

    • Order code 71324444

      Electronic insert F-BA3E, FTR20 (F34)

      Electronic module FTR20. ATEX II 1/2D IP66 T102oC, Solid-state-relay, DC version. Usage: FTR20.

    • Order code 71324447

      Electronic insert F-IA1A, FTR20, V2

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, relay, AC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FTR20.

    • Order code 71324466

      Electronic insert F-IA1E, FTR20, V2

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, relay, DC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FTR20.

    • Order code 71324468

      Electronic insert F-IA1A, FTR20 (F34)

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, relay, AC version. Usage: FTR20.

    • Order code 71324470

      Electronic insert F-IA1E, FTR20 (F34)

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, relay, DC version. Usage: FTR20.

    • Order code 71324471

      Electronic insert F-IA2A, FTR20 (F34)

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, 4-20mA, AC version. Usage: FTR20.

    • Order code 71324473

      Electronic insert F-IA2E, FTR20 (F34)

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, 4-20mA, DC version. Usage: FTR20.

    • Order code 71324476

      Electronic insert F-IA3A, FTR20 (F34)

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, Solid-state-relay, AC version. Usage: FTR20.

    • Order code 71324477

      Electronic insert F-IA3E, FTR20 (F34)

      Electronic module FTR20. IECEx II 1/2D IP66 T102oC, Solid-state-relay, DC version. Usage: FTR20.

    • Order code 71113441

      HT-adapter R1-1/2 + Rp1-1/2, 316Ti

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113449

      HT-adapter NPT1-1/2, 316Ti

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113450

      Extension 225mm, HT-adapter R1-1/2 +

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113451

      Extension 325mm, HT-adapter R1-1/2 +

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113452

      Extension 525mm, HT-adapter R1-1/2 +

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113453

      Extension 225mm, HT-Adapter NPT1-1/2

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113454

      Extension 325mm, HT-adapter NPT1-1/2

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113455

      Extension 525mm, HT-adapter NPT1-1/2

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 52017501

      Mounting bracket FQR5x/FDR5x, Aluminium

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 52017502

      Mounting bracket FQR5x/FDR5x, Plastics

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006345

      Flange DN40 PN6, Rp1-1/2, Alu

      Hole circle: 100mm. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006346

      Flange 1-1/2" 150lbs, NPT1-1/2, Alu

      Hole circle: 98.6mm. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006348

      Flange DN40 PN16, Rp1-1/2, 316Ti

      EN1092-1, A. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006349

      Flange 1-1/2" Cl.150, NPT1-1/2, 316Ti

      ASME B16.5. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006350

      Flange DN50 PN16, Rp1-1/2, 316Ti

      EN1092-1, A. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006351

      Flange NPS 2" Cl.150, NPT1-1/2, 316Ti

      ASME B16.5. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006352

      Flange DN100 PN16, Rp1-1/2, 316Ti

      EN1092-1, A. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006353

      Flange NPS 4" CL.150, NPT1-1/2, 316Ti

      ASME B16.5. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026443

      Welded fitting DN50, 200oC

      Screw assembling. Material: 316Ti, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026444

      Welded fitting DN80, 200oC

      Screw assembling. Material: 316Ti, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026445

      Welded fitting DN100, 200oC

      Screw assembling. Material: 316Ti, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026446

      Welded fitting DN50, 10bar, 200oC

      Screw assembling. Material: 316Ti/321, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026447

      Welded fitting DN80, 10bar, 200oC

      Screw assembling. Material: 316Ti/321, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026448

      Welded fitting DN100, 10bar, 200oC

      Screw assembling. Material: 316Ti/321, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026449

      Flanged fitting DIN/EN DN50, 25bar,200oC

      Screw assembling on counter flange. Material: 316Ti, PTFE, C4400. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026450

      Flanged fitting DIN/EN DN80, 25bar,200oC

      Screw assembling on counter flange. Material: 316Ti, PTFE, C4400. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026451

      Flanged fitting DIN/EN DN100,25bar,200oC

      Screw assembling on counter flange. Material: 316Ti, PTFE, C4400. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108383

      Flange DN40 PN16, Rp1-1/2, 316Ti, 3.1

      EN1092-1,A. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108387

      Flange 1-1/2" Cl.150,NPT1-1/2,316Ti,3.1

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108388

      Flange DN50 PN16, Rp1-1/2, 316Ti, 3.1

      EN1092-1,A. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108389

      Flange 2" Cl.150, NPT1-1/2,316Ti, 3.1

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108390

      Flange DN100 PN16, Rp1-1/2, 316Ti, 3.1

      EN1092-1,A. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108391

      Flange 4" Cl.150, NPT1-1/2,316Ti, 3.1

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209097

      Sightglass disc DN100, 25bar, 200oC

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209100

      Sightglass disc DN80, 25bar, 200oC

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209101

      Sightglass disc DN50, 25bar, 200oC

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209107

      Sightglass disc DN100, 10bar, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209111

      Sightglass disc DN80, 10bar, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209114

      Sightglass disc DN50, 10bar, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209115

      Sightglass disc DN100, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209116

      Sightglass disc DN80, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209118

      Sightglass disc DN50, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209119

      Sightglass disc DN100, 6bar, 200oC

      Installation on screw-type fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209121

      Sightglass disc DN80, 6bar, 200oC

      Installation on screw-type fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209122

      Sightglass disc DN50, 6bar, 200oC

      Installation on screw-type fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

Success stories

Compare products
