Point level switch
Soliswitch FTE31
Rotary paddle switch

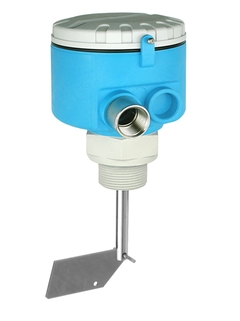

Point level switch Soliswitch FTE31 Rotary paddle switch ©Endress+Hauser

Simple mechanical mechanism, extremely robust and cost-effective point level switch for bulk solids

The economical Soliswitch FTE31 is a paddle switch for point level detection in bulk materials. Its robust polymer housing and compact design makes it an ideal sensor for full, empty and demand alarm in applications with bulk solids. The optimized materials make the unit outstandingly robust and therefore suitable for use in dust explosive areas.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Process temperature

      -20 °C ... 80 °C (-4 °F ... 170 °F)

    • Process pressure absolute / max. overpressure limit

      0.5 bar to 1.5 bar (7 psi to 22 psi)

    • Min. density of medium

      >= 100 g/l

Quick selection

Choose from our suggested options
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

FTE31
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • Reliable and economical paddle switch

    • Highest safety standard for dust-explosion-hazardous areas

    • Diverse instrument designs for use under different application conditions

    • Slip clutch prevents impact on paddle

    • Ingress protection to IP 65 / NEMA 4x / Type 4x...

  • Field of application

    The universal point level switch FTE31 is used as a full, empty and demand alarm on silos containing solids. Its construction and materials make the unit suitable for use in the food industry. The unit is suitable as a level limit switch in dust-...

Features and specifications

Back

Details

  • Measuring principle

    Paddle

  • Characteristic / Application

    universally applicable as a full, empty and demand alarm on silos containing solids

  • Specialities

    Hinged paddle for retro-fitting

  • Supply / Communication

    230V 50/60 Hz

    115V 50/60 Hz

    48V 50/60 Hz

    24V 50/60 Hz

    20 to 28 VDC

  • Ambient temperature

    -20 °C ... 60 °C (-4 °F ... 140 °F)

  • Process temperature

    -20 °C ... 80 °C (-4 °F ... 170 °F)

  • Process pressure absolute / max. overpressure limit

    0.5 bar to 1.5 bar (7 psi to 22 psi)

  • Min. density of medium

    >= 100 g/l

  • Main wetted parts

    Shaft: 1.4435

    Paddle: 1.4435

  • Process connection

    Threaded boss - thread NPT 1 1/4" or NPT 1 1/2"

  • Sensor length

    Standard:

    75 mm (3")

    100 mm (4")

    200 mm (8")

    300 mm (12")

    400 mm (16")

    500 mm (20")

    600 mm (24")

  • Communication

    Relay

  • Certificates / Approvals

    FM

    CSA

  • Application limits

    max. grain size 50 mm (2")
