Point level switch
Soliswitch FTE20
Rotary paddle switch

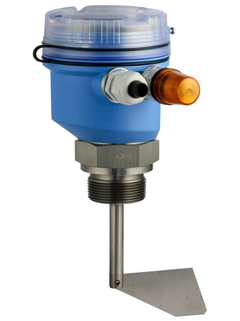

Product image paddle point level switch Soliswitch FTE20 ©Endress+Hauser

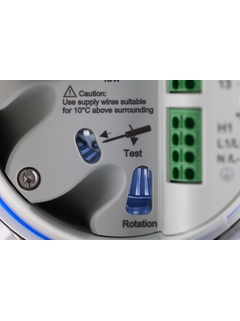

Rotation monitoring with Soliswitch FTE20 ©Endress+Hauser

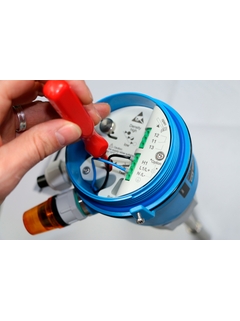

Switch test with Soliswitch FTE20 ©Endress+Hauser
  • Product image paddle point level switch Soliswitch FTE20
  • Rotation monitoring with Soliswitch FTE20
  • Switch test with Soliswitch FTE20

Simple mechanical mechanism, extremely robust and cost-effective point level switch for bulk solids

The economical Soliswitch FTE20 is a paddle switch for point level detection in bulk materials. Its robust polymer housing and compact design makes it an ideal sensor for full, empty and demand alarm in applications with bulk solids. The optimized polymers make the unit outstandingly robust and therefore suitable for use in dust explosive areas according the latest standards.

Fundamental selection
  • F
  • L
  • E
  • X

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Process temperature

      -20 °C ... 80 °C (-4 °F ... 170 °F)

    • Process pressure absolute / max. overpressure limit

      0.5 bar to 1.5 bar (7 psi ... 22 psi)

    • Min. density of medium

      >= 80 g/l

Loading alternative products

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

FTE20
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • Safety comes first - Overfill prevention with an automatic rotation monitoring system

    • Optical rotation control for a fast and easy check either for installation or for trouble shooting

    • Extremely robust polymer housing with the latest dust Ex certification...

  • Field of application

    • Process connections: NPT 1½", PBT; NPT 1¼", PBT; G 1½", PBT; NPT 1½", 1.4305; NPT 1¼", 1.4305; G 1½", 1.4305

    • Sensor length: Different standard lengths between 100 mm (4") and 600 mm (24"), additional rope length of 2000 mm (80") (can be shortened)

    • ...

Features and specifications

Back

Details

  • Measuring principle

    Paddle

  • Characteristic / Application

    universally applicable as a full, empty and demand alarm on silos containing solids

  • Specialities

    Rotation Monitoring System

    Fold-away paddle

  • Supply / Communication

    230 VAC 50/60 Hz

    115 VAC 50/60 Hz

    24 VAC 50/60 Hz

    20 bis 28 VDC

  • Ambient temperature

    -20 °C ... 60 °C (-4 °F ... 140 °F)

  • Process temperature

    -20 °C ... 80 °C (-4 °F ... 170 °F)

  • Process pressure absolute / max. overpressure limit

    0.5 bar to 1.5 bar (7 psi ... 22 psi)

  • Min. density of medium

    >= 80 g/l

  • Main wetted parts

    1.4305

  • Max. tensile strength

    Rope version >1500N

  • Process connection

    NPT 1 1/2", PBT

    NPT 1 1/4", PBT

    G 1 1/2", PBT

    NPT 1 1/2", 1.4305

    NPT 1 1/4", 1.4305

    G 1 1/2", 1.4305

  • Sensor length

    75 mm (3")

    100 mm (4")

    120 mm (4 3/4")

    200 mm (8")

    300 mm (12")

    Rope length of approx 2000 mm (80"), can be shortened

  • Communication

    Micro switch with changeover contact max. 10 A/250 VAC

  • Certificates / Approvals

    ATEX

    CSA

    FM

    EAC

    Non-hazardous area + EAC

    IECEx

    NEPSI

  • Options

    Rotation Monitoring System

    Signal Lamp

    Fold-away paddle

    Weather protection cover

  • Components

    HAW569 Surge arrester
