Micropilot NMR84

Micropilot NMR84 ©Endress+Hauser
Micropilot NMR84 ©Endress+Hauser
  • Micropilot NMR84
  • Micropilot NMR84

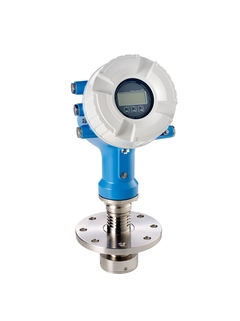

For high accurate non-contact level measurement in stilling well applications in custody transfer

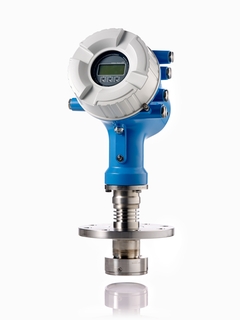

Micropilot NMR84 is used for custody transfer and inventory control applications with NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. The NMR84 free space radar with drip-off planar antenna is specifically suited for stilling well applications. The superior drip-off antenna design with proven track record eliminates problems caused by condensation.

Xpert selection
  • F
  • L
  • E
  • X

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Accuracy

      up to 0.5 mm

    • Process temperature

      -40°C…150°C
      (-40°F...302°F)

    • Process pressure absolute / max. overpressure limit

      Vacuum ... 25 bar abs

    • Max. measurement distance

      40 m (131 ft)
      For calibration to regulatory standards:
      30 m (98 ft)

    • Main wetted parts

      316L, PTFE

Loading alternative products

Quick selection

Choose from our suggested options
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

NMR84
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy) for high level of safety

    • Maximum reliability through accuracy up to ±0.5mm (±0.02")

    • Developed according to international metrology recommendations such as...

  • Field of application

    With planar antenna particularly suited for stilling well applications.

    • Process connections: Flanges

    • Temperature: -40 to +150°C (-40 to +302°F)

    • Pressure: Vacuum to +25bar (Vacuum to +362psi)

    • Maximum measuring range: 40m (131ft)

    • Accuracy: ±0.5mm (±0.02")

    • Transmitting...

Features and specifications

Back

Details

  • Measuring principle

    Level radar

  • Characteristic / Application

    Planar antenna, 6GHz: High precision measurement for for storage tanks up to 30 m (98ft)

  • Specialities

    Custody transfer level measurement

  • Supply / Communication

    85-264VAC

  • Accuracy

    up to 0.5 mm

  • Ambient temperature

    Standard:

    -40°C…60°C

    (-40°F...140°F)


    For calibration to regulatory

    standards:

    -25°C…55°C

    (-13°F...131°F)

  • Process temperature

    -40°C…150°C

    (-40°F...302°F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 25 bar abs

  • Main wetted parts

    316L, PTFE

  • Process connection

    Flange:

    DN100/4"…DN300/12"


    UNI-Flange:

    DN150/6"…DN300/12"

  • Max. measurement distance

    40 m (131 ft)

    For calibration to regulatory standards:

    30 m (98 ft)

  • Communication

    Outputs:

    Fieldbus: Modbus RS485, V1, HART

    Analog 4-20mA output (Exi/ Exd)

    Relay output (Exd)


    Inputs:

    Analog 4-20mA input (Exi/ Exd)

    2-, 3-, 4-wire RTD input

    Discrete input (Exd, passive/ active)

  • Certificates / Approvals

    ATEX, FM, IEC Ex, EAC, JPN Ex

  • Safety approvals

    Overfill protection WHG

    SIL

  • Design approvals

    EN 10204-3.1

    NACE MR0175, MR0103

    AD2000

  • Metrological approvals and certificates

    OIML, NMi, PTB

  • Options

    Redundant fieldbus

    Alu-coated or 316L housing

    Weather protection cover

  • Application limits

    Maximum measuring range is
    dependent on the tank form and/
    or application
    Strong condensate or build-up
    formation

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • 21
    • Nr 21 Order code 71312582

      O-ring, housing, 177.39x3.53, TG

      Material: FVMQ, PTFE coated. Usage: housing F35/36/37/38, NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 19
    • Nr 19 Order code 71312589

      Housing filter, PTFE, NMR8x, 2 pcs.,TG

      Consists of: 1x pressure compensation plug M18, 316L. 1x filter plug metal M12, 316L. 1x pressure compensation filter. Usage: housing F36/38, NMR81/NMR84.

  • 14
    • Nr 14 Order code 71312592

      Blind plug, M20, 316L, O-ring EPDM, TG

      Consists of: blind plug, O-ring 18.0x2.0. Usage: housing F35/36/37/38, NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 15
    • Nr 15 Order code 71312594

      O-ring, blind plug, M20, EPDM, 5pcs., TG

      Usage: housing F35/36/37/38, NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 20
    • Nr 20 Order code 71312596

      Front cover Alu, sight glas, gasket

      Material: aluminum. Consists of: cover, O-ring FVMQ, PTFE coated. Usage: housing F35/36, NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

    • Nr 20 Order code 71312607

      Front cover 316L, sight glas, gasket

      Material: 316L. Consists of: O-ring EPDM, clotted. Usage: housing F37/38. NMR81/NMR84, NRF81, NMS81/NMS83.

  • 17
    • Nr 17 Order code 71312627

      Cover clamp, 2 pcs., TG

      Usage: housing F35/36/37/38. NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 37
    • Nr 37 Order code 71324756

      Terminal set, I/O module, Push-in, TG

      Consists of: complete terminal set. Usage: NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

    • Nr 37 Order code 71324757

      Terminal set, I/O module, screw type, TG

      Consists of: complete terminal set. Usage: NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 40
    • Nr 40 Order code 71312638

      Display set, RS485, holder, TG

      Consists of: operation-module, A300, optical buttons, display holder, fixing ring, cover. Usage: NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 41
    • Nr 41 Order code 71312640

      Display holder, fixing ring, TG

      Consists of: fixing ring, holder. Usage: NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 31
    • Nr 31 Order code XPN0036-

      Electronics, mainboard

      Usage: NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 33
    • Nr 33 Order code XPN0031-

      I/O Module NMR81/84, NRF81, NMS80/81/83

      Usage: NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 39
    • Nr 39 Order code 71312653

      HF-cable, 6GHz, NMR84, TG

      Consists of: 2x ribbon cable, connector. Usage: NMR84.

  • 0
    • Nr 0 Order code 71292751

      Weather protection cover NMR8x, NRF8x

      Material: 316L. Usage: NMR81/NMR84, NRF80/NRF81.
