Prosonic FMU43 - Ultrasonic measurement

Ultrasonic measurement
Time-of-Flight

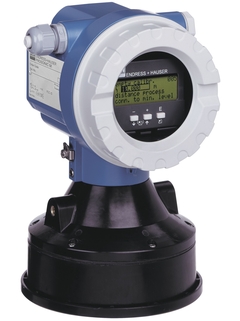

Prosonic FMU43

Cost effective device for sophisticated level measurement in liquids and bulk solids for up to 15m

FMU43
please wait
Loading price
Prices temporarily unavailable
from CHF 803.-

Specs at a glance

  • Accuracy

    +/- 4 mm or +/- 0.2 %of set measuring range

  • Process temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process pressure absolute / max. overpressure limit

    0.7 bar ... 2.5 bar abs
    (10 psi ... 36 psi)

  • Max. measurement distance

    Max. measurement distance

  • Main wetted parts

    Unsaturated Polyester, 316 Ti

Field of application

The Prosonic FMU43 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.

Two-wire or four wire instrument for continuous non-contact level and flow measurement.

  • Process connection: Flange

  • Temperature: -40 to +80°C (-40 to +176°F)

  • Pressure: +0.7 to +2.5bar (+10 to +36psi)

  • Maximum measuring distance: Liquids 15m (50ft), Solids 7m (23ft)

  • Blocking distance: Liquids and Solids 0.6m (2ft)

  • International explosion protection certificates

Benefits

  • Reliable non-contact measurement

  • Quick and simple commissioning via menu-guided on-site operation with four-line plain text display, 7 languages selectable

  • Envelope curves on the on-site display for simple diagnosis

  • Hermetically sealed and potted sensor

  • Chemically resistant sensor out of PVDF

  • Calibration without filling or discharging

  • Integrated temperature sensor for automatic correction of the temperature dependent sound velocity
