Radiometric level and density measurement Gammapilot FMG50

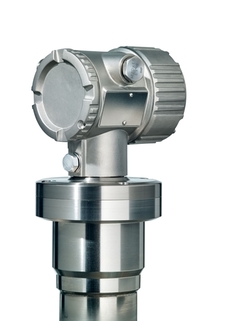

Gammapilot FMG50 stainless steel housing ©Endress+Hauser

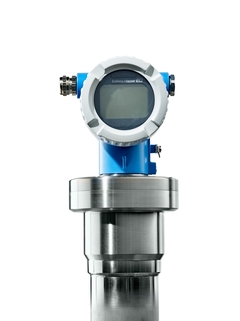

Gammapilot FMG50 aluminum housing ©Endress+Hauser

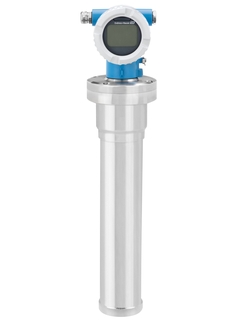

Gammapilot FMG50 aluminum housing ©Endress+Hauser

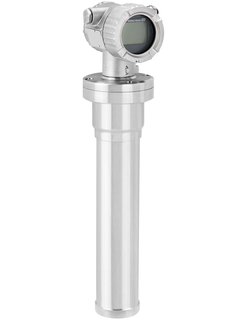

Gammapilot FMG50 stainless steel housing ©Endress+Hauser

The animation shows the radiometric measuring principle

Compact transmitter for point level detection, continuous level, interface and density measurement

The Gammapilot FMG50 compact transmitter is designed for non-contact point level detection, continuous level, interface and density measurement in liquids, solids, suspensions or sludges. As the first true 2-wire loop powered compact transmitter it minimizes engineering and installation efforts.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Process temperature

      Any

    • Process pressure absolute / max. overpressure limit

      Any

    • Max. measurement distance

      Unlimited measuring range,
      Cascade

    • Accuracy

      +/-1%

    • Main wetted parts

      Non-contact

please wait Loading alternative products

Quick selection

Choose from our suggested options
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • First real 2-wire loop-powered compact transmitter minimizes engineering and installation efforts

    • Reduced installation and engineering costs thanks to the first 2-wire loop powered compact transmitter

    • Increased plant safety, efficiency and availability...

  • Field of application

    • For all kinds of process vessels, like reactors, autoclaves, separators, acid tanks, cyclones

    • For liquids, solids, suspensions or sludges etc.

    • Extreme measuring conditions, for example corrosion, abrasion, viscosity, toxicity

    • Process temperature: No...

Details

  • Measuring principle

    Radiometric Limit

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Supply / Communication

    2-wire loop powered

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Sensor length

    PVT scintillator:

    200 mm...400 mm,

    NAI scintillator:

    50 x 50 mm,

    50 x 100 mm

  • Communication

    4...20 mA HART

  • Certificates / Approvals

    ATEX, IEC Ex, NEPSI

  • Safety approvals

    Overfill protection WHG

    SIL 2/3

  • Design approvals

    EN 10204-3.1

  • Options

    Display

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

  • Measuring principle

    Radiometric

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Interface measurement

    Interfaces liquid / liquid also with emulsion layers

    Interfaces liquid / solid

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Supply / Communication

    2-wire loop powered

  • Accuracy

    +/-1%

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Sensor length

    PVT scintillator

    400 mm...3000 mm,

    >3000 mm cascade mode

  • Max. measurement distance

    Unlimited measuring range,

    Cascade

  • Communication

    4...20 mA HART

  • Certificates / Approvals

    ATEX, IEC Ex, NEPSI

  • Safety approvals

    Overfill protection WHG

    SIL 2/3

  • Design approvals

    EN 10204-3.1

  • Options

    Display

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

  • Measuring principle

    Radiometric Limit

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Supply / Communication

    2-wire loop powered

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Sensor length

    PVT scintillator:

    200 mm...400 mm,

    NAI scintillator:

    50 x 50 mm,

    50 x 100 mm

  • Communication

    4...20 mA HART

  • Certificates / Approvals

    ATEX, IEC Ex, NEPSI

  • Safety approvals

    Overfill protection WHG

    SIL 2/3

  • Design approvals

    EN 10204-3.1

  • Options

    Display

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

  • Measuring principle

    Radiometric

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Supply / Communication

    2-wire loop powered

  • Accuracy

    +/-1%

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Sensor length

    PVT scintillator

    400 mm...3000 mm,

    >3000 mm cascade mode

  • Max. measurement distance

    Unlimited measuring range,

    Cascade

  • Communication

    4...20 mA HART

  • Certificates / Approvals

    ATEX, IEC Ex, NEPSI

  • Safety approvals

    Overfill protection WHG

    SIL 2/3

  • Design approvals

    EN 10204-3.1

  • Options

    Display

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

  • Measuring principle

    Radiometric Density

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Supply / Communication

    2-wire loop powered

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute

    Any

  • Wetted parts

    Non-contact

  • Sensor length

    PVT scintillator:

    200 mm...400 mm,

    NAI scintillator:

    50 x 50 mm,

    50 x 100 mm

  • Output

    4...20 mA HART

  • Certificates / Approvals

    ATEX, IEC Ex

  • Options

    Display

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • 14
    • Nr 14 Order code 71487198

      Blind plug, M20, 316L, o-ring EPDM

      Consists of: blind plug, o-ring PTFE coated 17.0x2.0. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

    • Nr 14 Order code 71487199

      Blind plug, M20, Alu, o-ring EPDM

      Consists of: blind plug, o-ring PTFE coated 17.0x2.0. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

    • Nr 14 Order code 71487201

      Blind plug, NPT1/2, Alu

      Consists of: blind plug, PTFE coated. Usage: FMG50, NMT81, PMC51B, PMC71B PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 14 Order code 71487203

      Blind plug, NPT1/2, 316L

      Consists of: blind plug, PTFE coated. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

  • 15
    • Nr 15 Order code 71435135

      Cable gland M20, plastic

      Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435136

      Cable gland M20, brass nickel plated

      Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435137

      Cable gland M20, 316L

      Usage: FMG50, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435138

      M12 plug,CuZn-nickel plated,housing side

      Usage: M12 screw-in thread, brass nickel plated, FMG50, FTL51B, FTL62/FTL64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B,PMP51B, PMP71B.

    • Nr 15 Order code 71435139

      M12 plug, 316L, housing side

      Usage: M12 screw-in thread, FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71439098

      HAN7D plug, 90deg, housing side

      Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71474958

      HAN7D socket, cable side

      Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

  • 18
    • Nr 18 Order code 71474251

      Ground terminal Housing L+P

      Consists of: Spring washer, screw, earth handle, clamp. Usage: housing FMG50, PMC51B, PMD55B, PMD75B/PMD78B.

  • 20
    • Nr 20 Order code 71435116

      Cover, Alu, closed

      Sealing ring, HNBR. Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B,PMP51B, PMP71B.

    • Nr 20 Order code 71435118

      Cover, Alu, closed, Ex d

      Sealing ring, HNBR. Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 20 Order code 71435122

      Cover, 316L, closed, Ex d

      Sealing ring, HNBR. Usage: FMG50, FTL51B, FTL62/64, PMD75B/PMD78B, PMC71B, PMP71B.

    • Nr 20 Order code 71439086

      Cover red, Alu, closed, Ex d

      Sealing ring, HNBR. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP1B, PMP71B.

    • Nr 20 Order code 71435123

      Cover, 316L, sight window, Ex d

      Sealing ring, HNBR. Usage: FMG50, FTL51B, FTL62/FTL64, PMD75B/PMD78B, PMC71B, PMP71B.

    • Nr 20 Order code 71439089

      Cover, Alu, sight window

      Sealing ring, HNBR. Material sight window: plastic. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 20 Order code 71439090

      Cover, Alu, sight window, Ex d

      Sealing ring: HNBR. Material sight window: borosilicat. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 20 Order code 71439088

      Cover red, Alu, sight window, Ex d

      Sealing ring, HNBR. Material sight window: borosilicat. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

  • 25
    • Nr 25 Order code 71435121

      Cover, Alu, connection compartment, Ex d

      Sealing ring, HNBR. Usage: FMG50, PMC71B, PMD75B/PMD78B, PMP71B.

    • Nr 25 Order code 71435128

      Cover, 316L, connect. compartment, Ex d

      Sealing ring, HNBR. Usage: FMG50, PMD75B/PMD78B, PMC71B, PMP71B.

    • Nr 25 Order code 71439085

      Cover, Alu, connection compartment

      Sealing ring, HNBR. Usage: FMG50, PMC71B, PMD75B/PMD78B, PMP71B.

    • Nr 25 Order code 71439087

      Cover red, Alu,connect. compartment,Ex d

      Sealing ring, HNBR. Usage: FMG50, PMC71B, PMD75B/PMD78B, PMP71B.

  • 21
    • Nr 21 Order code 71435132

      Sealing set HNBR, -40oC, 5 pieces

      Usage: FMG50, FTL41, FTL51B, FTL62/64.

  • 30
  • 31
  • 35
    • Nr 35 Order code 71435766

      Terminal unit TU100B, 4-20mA

      Usage: FMG50, PMC71B, PMD75B/PMD78B, PMP71B.

    • Nr 35 Order code 71435767

      Terminal unit TU101B, 4-20mA, OVP

      Usage: FMG50, PMC71B, MD75B/PMD78B, PMP71B.

  • 40
    • Nr 40 Order code 71435772

      Segment display VU100

      W/o buttons. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

    • Nr 40 Order code 71435779

      Segment display + Bluetooth VU101

      W/o buttons. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Order code 71444532

      Mounting clamp d=80mm, FMG50

      Consists of: Pipe holder DN80, rod holder. Usage: FMG50.

    • Order code 71444539

      Mounting clamp d=95mm, FMG50

      Consists of: Pipe holder DN95, rod holder. Usage: FMG50.

    • Order code 71460674

      Thermal shielding, NaI 2"

      Usage: As heat- or sun protection, FMG50.

    • Order code 71460679

      Thermal shielding,NaI 4",200mm/400mm PVT

      Usage: As heat- or sun protection, FMG50.

    • Order code 71460682

      Thermal shielding, 800mm PVT

      Usage: As heat- or sun protection, FMG50.

    • Order code 71460684

      Thermal shielding, 1200mm/1600mm PVT

      Usage: As heat- or sun protection, FMG50.

    • Order code 71464825

      Thermal shielding, 2000/2400/3000mm PVT

      Usage: As heat- or sun protection, FMG50.

    • Order code 71465085

      Retaining bracket, FMG50

      For securing with vertical installation, together with holding clamps. Usage: FMG50.

    • Order code 52006263

      M12-female plug connector, cable side

      M12 plug socket, cable side Self confectionery connection. Usage: FMB50/FMB51/FMB52/FMB53, FMB70, FTL31/FTL33, FTW23, FTW33,PMP11, PMP21, PMP51, PTC31B, PTP31B, QMW43.

    • Order code 71114212

      M12-female plug connec.,90deg,cable side

      Self confectionery connection. Usage: M12 plug socket, cable side.

    • Order code 71437519

      Mounting clamp 1x d=80mm, 1x d=95mm

      Up to: 400mm. Usage: FMG50.

    • Order code 71437523

      Mounting clamp 2x d=80mm, 1x d=95mm

      800mm up to 1600mm. Usage: FMG50.

    • Order code 71437525

      Mounting clamp 3x d=80mm, 1x d=95mm

      2000 up to 3000mm. Usage: FMG50.

    • Order code 71438303

      Weather protection cover, 316L, XW112

      Usage: FMG50, FTL51B, FTL62/FTL64, PMC71B, PMD75B/PMD78B, PMP71B.
