COD analyzer
Liquiline System CA80COD

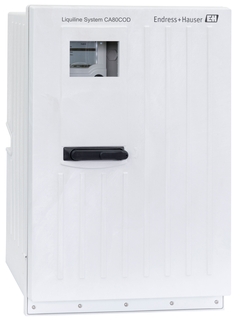

Liquiline System CA80COD - COD analyzer for environmental monitoring ©Endress+Hauser

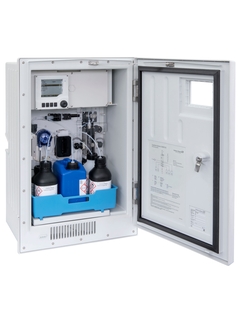

Inside view of the COD analyzer ©Endress+Hauser

The chemical oxygen demand (COD) of a liquid can be determined using chemical and thermal digestion and the colorimetric measuring principle. This video shows how this measuring principle works.

  • Liquiline System CA80COD - COD analyzer for environmental monitoring
  • Inside view of the COD analyzer

Analyzer for chemical oxygen demand in environmental monitoring, industrial and municipal wastewater

Liquiline System CA80COD offers constant online measurement of the chemical oxygen demand (COD). It supports you in monitoring the cleaning capacity of wastewater treatment plants and enables load-based billing for industrial dischargers. Automatic calibration and cleaning save operating costs while advanced diagnostics with remote access help to provide process documentation to authorities. The COD analyzer's software-controlled safety functions ensure the highest level of occupational safety.

Extended selection
  • F
  • L
  • E
  • X

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Measurement range

      10 to 5000 mg/l O2 COD
      40 to 20000 mg/l O2 COD

    • Process temperature

      4 to 40 °C (39 to 104 °F)

    • Process pressure

      Atmospheric

Loading alternative products

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

CA80COD
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • Established COD dichromate method directly comparable to laboratory results.

    • Meeting industry needs: The analyzer is perfectly suited for environmental monitoring, industrial and municipal wastewater.

    • Fast and easy process integration: Direct...

  • Field of application

    The Liquiline System COD analyzer monitors:

    • Inlet and outlet of wastewater treatment plants for documentation purposes and calculation of the cleaning capacity

    • Discharges of industrial wastewater treatment plants to determine discharge fees and to...

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Analyzer for chemical oxygen demand (COD)

  • Size

    Housing (open version):

    793 x 530 x 417 mm

    31.22 x 20.87 x 16.42 in


    Housing (closed version):

    793 x 530 x 463 mm

    31.22 x 20.87 x 18.23 in


    Housing with base:

    1723 x 530 x 463 mm

    67.83 x 20.87 x 18.23 in

  • Design

    Open design, cabinet and stand housing
    High-Performance plastic ASA-PC, additional stand coated steel

  • Process temperature

    4 to 40 °C (39 to 104 °F)

  • Ambient temperature

    5 to 40 °C (41 to 104 °F)

    Outdoor version: - 20 to 40 °C (-4 to 104 °F)

  • Process pressure

    Atmospheric

  • Sample flow rate

    min. 30 ml/min

  • Consistency of the sample

    Aqueous homogeneous sample

  • Specials

    Easy upgrade to measuring station with up to four digital Memosens sensors
    Automatic calibration and cleaning
    User-configurable measuring, cleaning and calibration intervals
    Self-priming analyzer with optical dosing unit l
    Dilution module (optional)
    Digital communication for remote access

  • Application

    Environmental monitoring, limit value monitoring of industrial and municipal waste water

  • Power supply

    100 to 120 VAC / 200 to 240 VAC ± 10%
    50 ± 1 oder 60 ± 1,2 Hz

  • Output / communication

    2x 0/4 to 20 mA
    Modbus RS485/TCP (optional)
    Webserver (optional)
    EtherNet/IP
    PROFIBUS DP
    Alarmrelay

  • Input

    1 measuring channel
    1 to 4 digital sensor inputs for sensors with Memosens protocol (optional)

  • Measurement range

    10 to 5000 mg/l O2 COD
    40 to 20000 mg/l O2 COD

  • Consumables

    Reagents and standard solutions CY80COD are necessary for the operation

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code

      Maintenance booklet CA80xx for download

    • Order code CY80COD-

      Reagent / Standard solution CY80COD

      Reagent set, respectively standard solution, for Liquiline System CA80COD Contains dangerous goods

    • Order code CAV880-

      CAV880 Maint. kit CA80 sum parameters

      CAV880 wear parts CA80 sum parameters

    • Order code CAC880-

      CAC880 Inlet and Outlet hoses CA8x

      Inlet and outlet hoses for Liquiline System CA80 in heated and unheated version.

    • Order code

      Housing

  • 223
  • 224
  • 225
  • 226
  • 312
  • 102
  • 103
  • 206
  • 108
  • 208
  • 111
  • 118
  • 207
  • 151
  • 152
  • 205
  • 198
  • 199
  • 202
  • 217
    • Nr 217 Order code 71431081

      Kit CA80COD/TP: dilution valve

      Only use with 71324153 Kit CA80COD/TP: Pharmed hose (2 m)!

  • 215
    • Nr 215 Order code 71431077

      Kit CA80COD: waste valve

      Only use with new waste hose 71431075 Kit CA80COD: Use the waste hose!

  • 211
  • 203
  • 221
  • 200
  • 210
    • Nr 210 Order code 71431075

      Kit CA80COD: waste hose

      Only use with new waste valve 71431077 Kit CA80COD: waste valve!

  • 209
  • 153
  • 219
  • 142
  • 141
  • 321
  • 146
    • Nr 146 Order code 71218507

      Kit CA8x: Interface module CM44

    • Nr 146 Order code 71465480

      Kit CA8x interface module vers. 2

      For installation in CA80 with BASE2-E module, backplane V2 and control module V2. Firmware 01.08.00 or newer needed!

    • Order code

      Additional Liquline modules

    • Order code 71135631

      Kit: module 2DS

      2x digital sensor CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71135638

      Kit: module DIO

      2x digital in, 2x digital out CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71111053

      Kit : module AOR

      2x Relay, 2x 0/4..20mA Out CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71125375

      Kit: module 2R

      2x Relay CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71125376

      Kit: module 4R

      4x Relay CM442 / CM444 / CM448 / CSF48

    • Order code 71135632

      Kit: module 2AO

      2x 0/4..20mA Out CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71135633

      Kit: module 4AO

      4x 0/4..20mA Out CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71135639

      Kit: module 2AI

      2x 0/4..20mA In CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71272410

      Kit: module ETH

      (+Webserver) extendable via upgrade code to Modbus TCP or EtherNet/IP CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

    • Order code 71135634

      Kit: module 485

      (+Webserver) Extendable via upgrade code to Profibus DP or Modbus RS485 or Modbus TCP or EtherNet/IP CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

    • Order code 71107452

      Kit: 1x set of terminals basic module

      CM442/CM444/CM448/CSF48/CSP44

    • Order code 71107453

      Kit: 1x set of terminals module AOR

      CM442/CM444/CM448/CSF48

    • Order code 71155581

      Kit: 1x set of terminals module 4R

      CM442/CM444/CM448/CSF48

    • Order code 71155582

      Kit: 1x set of terminals module 4AO

      CM442/CM444/CM448/CSF48

    • Order code 71155583

      Kit: 1x set of terminals module 2xAI,485

      CM442/CM444/CM448/CSF48

    • Order code 71219784

      Kit: 1x set of terminals module DIO

    • Order code

      Upgrade kits digital communication

    • Order code 71279809

      Upgrade Kit: Modul ETH + Modbus TCP

      (+Webserver) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

    • Order code 71279812

      Upgrade Kit: Modul ETH + EtherNet/IP

      (+Webserver) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

    • Order code 71140888

      Upgrade Kit: Modul 485 + Profibus DP

      (+Webserver) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

    • Order code 71140889

      Upgrade Kit: Modul 485 + Modbus RS485

      (+Webserver) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

    • Order code

      Activation codes for communication

    • Order code 71249548

      Kit CA80xx: 1x digital sensor inputs

    • Order code 71249555

      Kit CA80xx: 2x digital sensor inputs

    • Order code 71449918

      Upgrade code: Webserver for BASE2

      Successor kit: XPC0021 activation code Webserver for BASE2

    • Order code 71449914

      Upgr.code:EtherNet/IP+Webserver BASE2

      Successor kit: Kit: XPC0018 activation code EtherNet/IP + Webserver

    • Order code 71449915

      Upgr.code Modbus TCP+Webserver BASE2

      Successor kit: XPC0020 activation code Modbus TCP + Webserver

    • Order code 71449901

      Upgr.code: PROFINET+Webserver f. BASE2

      Successor kit: XPC0022 activation code PROFINET + Webserver

    • Order code 71279813

      Upgrade code Modbus TCP f.module ETH

      Enter this code to change active fieldbus protocol to Modbus TCP (provide serial number of device) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R Successor kit: XPC0020 activation code Modbus TCP + Webserver

    • Order code 71279830

      Upgrade code EtherNet/IP f. module ETH

      Enter this code to change active fieldbus protocol to EtherNet/IP (provide serial number of device) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R Successor kit: XPC0018 activation code EtherNet IP + Webserver

    • Order code 71135635

      Upgrade code: Profibus DP module 485

      Enter this code to change active fieldbus protocol to Profibus DP (provide serial number of device) CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R Successor kit: Activation code PROFIBUS DP f 485 module

    • Order code 71135636

      Upgrade code: Modbus RS 485 module 485

      Enter this code to change active fieldbus protocol to Modbus RS485 (provide serial number of device) CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R Successor kit: XPC0025 Activation code ModbusRS485 f 485 module

    • Order code 71219871

      Upgrade code: EtherNet/IP f.module 485

      Enter this code to change active fieldbus protocol to EtherNet/IP (provide serial number of device) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R Successor kit: XPC0018 activation code EtherNet/IP + Webserver

    • Order code 71135637

      Upgrade code: Modbus TCP f.module 485

      Enter this code to change active fieldbus protocol to Modbus TCP (provide serial number of device) CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R Successor Kit: XPC0020 activation code Modbus TCP + Webserver

    • Order code

      Upgrade Liquiline modules

    • Order code 71141366

      Kit module extention backplane

      CM444/CM448/CSF48

    • Order code 71135631

      Kit: module 2DS

      2x digital sensor CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71135638

      Kit: module DIO

      2x digital in, 2x digital out CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71111053

      Kit : module AOR

      2x Relay, 2x 0/4..20mA Out CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71125375

      Kit: module 2R

      2x Relay CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71125376

      Kit: module 4R

      4x Relay CM442 / CM444 / CM448 / CSF48

    • Order code 71135632

      Kit: module 2AO

      2x 0/4..20mA Out CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71135633

      Kit: module 4AO

      4x 0/4..20mA Out CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71135639

      Kit: module 2AI

      2x 0/4..20mA In CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code

      Upgrade additional functions

    • Order code 71367541

      Upgradecode Mathematic

    • Order code

      Service tools

    • Order code 71127100

      SD-Card with Firmware, 1GB

      Industrial Flash Drive, Liquiline firmware for 4-wire platform CM442 / CM444 / CM448 / CSF48

    • Order code 71110815

      SD-Card, 1GB, Industrial Flash Drive

      .

Success stories

  • Continuous monitoring of drinking water made easy Continuous monitoring of drinking water made easy

    The all-round carefree panel

    Water Analysis Panels make continuous monitoring of drinking water easy at the water treatment plant in Frasnacht, Switzerland.

  • Industrial WWTP at Pasfrost Industrial WWTP at Pasfrost

    Compliance made easy

    The automated phosphate monitoring with Liquiline System CA80PH helps the food company Pasfrost ensure the compliance with the strict limit values for its industrial wastewater.

  • Pasfrost plant in Passendale, Belgium Pasfrost plant in Passendale, Belgium

    Conductivity measurement in a water reuse plant

    Pasfrost relies on Memosens CLS82D for the conductivity measurements in its water reuse plant. The sensor provides precise measurements even of very low conductivity values.

  • The aeration tank of a sewage treatment plant. The aeration tank of a sewage treatment plant.

    On the trail of orthophosphate

    White Paper on Orthophosphate Measurement in Municipal Sewage Treatment Plants

  • Sustainable wastewater treatment at Emmi's milk processing plant in Dagmersellen, Switzerland Sustainable wastewater treatment at Emmi's milk processing plant in Dagmersellen, Switzerland

    Making a clean job of it at Emmi

    Efficient wastewater treatment with Oxymax COS61D in the Sequencing Batch Reactor of a dairy company

Compare products
We use cookies to store information on your device which helps us to customize and improve your interactions with us. More on cookies can be found in the privacy policy.
