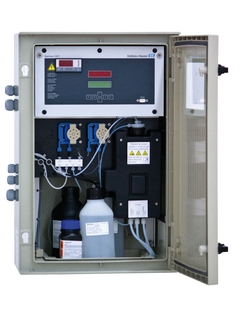

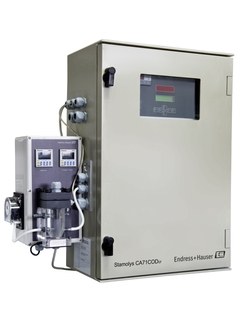

Stamolys CA71COD

The CA71COD analyzer determines the chemical oxygen demand (COD) using the dichromate method. ©Endress+Hauser

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Analyzer for the chemical oxygen demand
    Dichromat method

  • Size

    648 x 436 x 250 mm
    25.27 x 17.00 x 9.75 inch

  • Design

    GRP

  • Process temperature

    5°C ... 40°C
    40 ... 100°F

  • Ambient temperature

    10°C ... 35°C
    50 ... 95°F

  • Process pressure

    pressureless

  • Sample flow rate

    min. 5ml/min

  • Consistency of the sample

    watery and homogenized

  • Specials

    Chloride removal without Hg
    variable decomposion times

  • Application

    Wastewater / Processwater

  • Power supply

    230 V AC, 50 Hz
    230V AC 60 Hz

  • Output

    0/4 ... 20 mA
    Contacts: 2 limit contacts (per channel), 1 system alarm contact

  • Measurement range

    0 ... 200 mg/l O2
    50 ... 5000 mg/l O2

  • Consumables

    Chemicals necessary

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification

  • Successor

    • Liquiline System CA80COD - COD analyzer for environmental monitoring

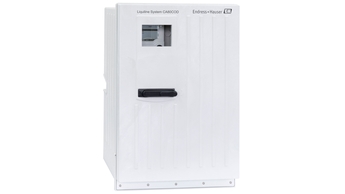

      Liquiline System CA80COD

      The analyzer offers constant online measurement of the chemical oxygen demand (COD) supporting monitoring of the cleaning capacity of WWTPs and load-based billing systems for industrial dischargers.
