Flow assembly for chlorine dioxide sensors Flowfit CCA151

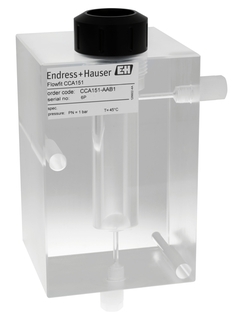

Flowfit CCA151: Flow assembly for chlorine dioxide sensors ©Endress+Hauser

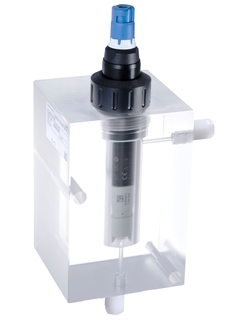

Flowfit CCA151 flow assembly with Memosens CCS50D chlorine dioxide sensor installed ©Endress+Hauser

Simple assembly for drinking and process water applications

Flowfit CCA151 is a simple flow assembly for disinfection parameters such as chlorine dioxide that do not require pH compensation. Sensors installed in the acrylic glass assembly need only a sample flow as low as 5 l/h (1.32 gph) for accurate measurement. This enables precise control of disinfection processes with minimal water loss. Thanks to flexible mounting options for panels, walls and pipes, Flowfit CCA151 places the disinfection sensor at an optimal position for best measuring results.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Process temperature

      Max. 60 °C
      (Max. 140 °F)

    • Process pressure

      Max. 4 bar relative
      (Max. 58 psi relative)

Quick selection

Choose from our suggested options
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Minimum water loss: When installed in Flowfit CCA151, sensors require a sample flow as low as 5 l/h (1.32 gph) for precise chlorine dioxide measurement. Only a very small volume of water goes to waste.

    • Reliable measurement: Flexible mounting options...

  • Field of application

    CCA151 is a flow assembly for the measurement of disinfection parameters without pH compensation, e.g. chlorine dioxide in:

    • Drinking water

    • Utilities of all industries

    • Applications with low sample volumes

Features and specifications

Back

Details

  • Measuring principle

    Free chlorine

  • Application

    Drinking water
    Utilities of all industries
    For low sample flow

  • Characteristic

    Flow through assembly for one disinfection sensor

  • Design

    Flow assembly with direct inflow to the membran

  • Material

    Plexiglas (PMMA)

  • Dimension

    85 mm x 85 mm x 220 mm
    (3.35 inch x 3.35 inch x 8.64 inch)

  • Process temperature

    Max. 60 °C
    (Max. 140 °F)

  • Process pressure

    Max. 4 bar relative
    (Max. 58 psi relative)

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 71372020

      Kit CCA151, Blind plug complete

      Content: Locking screw, blind plug with O-ring

    • Order code 71372109

      Wall fastening set CCA151

    • Order code 71372027

      Kit adapter CCS5x(D) for CYA27+CCA151

      Content: Clamp ring, thrust ring, + sealing
