Flow assembly for multi-parameter measurements Flowfit CYA27

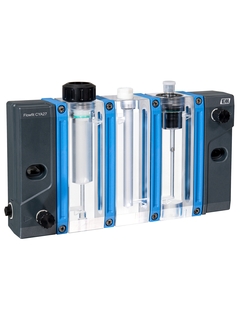

Flowfit CYA27 - Modular assembly for disinfection, pH/ORP measurement and flow indication

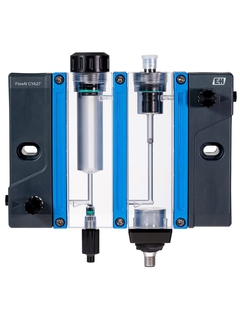

Flowfit CYA27 - Modules for disinfection sensors, flow measurement incl. flow switch, sampling valve

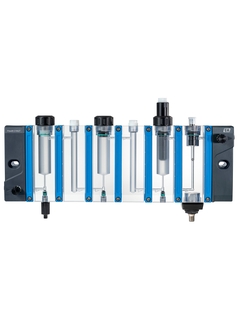

Flowfit CYA27 - Fully expanded for disinfection, pH/ORP, conductivity measurement, flow monitoring

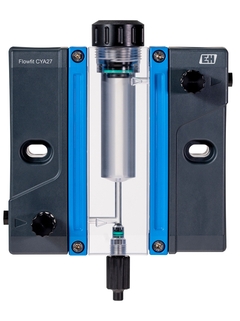

Flowfit CYA27 - Single module for disinfection sensors incl. sampling valve

Modular assembly for drinking and process water applications

Flowfit CYA27 allows for monitoring of up to 6 relevant parameters at the same time. Sensors installed in the assembly need a sample flow as low as 5 l/h (1.32 gph) for accurate measurement. This enables precise control of processes such as disinfection with minimum water loss. The assembly offers flexible mounting options, an integrated sampling valve and a cleaning and dosing module. A flow monitoring can ensure that your measurement is always operational.

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Sizing

Compare

This product is not available in this market.

Specs at a glance
Process temperature

Process temperature

Process pressure

0 to 4 bar (0 to 58 psi) relative

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

CYA27

Show details Hide details

Show details

Back to Quick Selection

<%feature%>

<%coding%>

<%label%>

Add to Cart

Optional add-ons

Please use the individual configurator to continue

Individual configuration

Continue your selection from all possible options

Configure

Benefits
Maximum flexibility: The modular design of the assembly enables perfect adaption to process requirements. You can measure up to 6 variables. Flexible mounting options allow you to position the sensor where it is needed for accurate measurement.

Minimum...

Show more
Maximum flexibility: The modular design of the assembly enables perfect adaption to process requirements. You can measure up to 6 variables. Flexible mounting options allow you to position the sensor where it is needed for accurate measurement.

Minimum water loss: When installed in Flowfit CYA27, sensors require a sample flow as low as 5 l/h (1.32 gph) for precise measurement. Only a very small volume of water goes to waste.
Reliable measurement: The integrated flow monitoring makes sure that your measurement is always operational. The optional status indication light shows if the flow is correct, allowing for direct reaction to errors.

Easy maintenance: The optional cleaning and dosing module enables automated cleaning cycles and acidification of the medium for specific disinfection process conditions.

Show less

Field of application
Flowfit CYA27 is a flow assembly for the measurement of multiple parameters such as chlorine, chlorine dioxide, bromine, ozone, pH/ORP, conductivity or oxygen mainly in bypass installations. It is suitable for the following applications:
Drinking water
...

Show more
Flowfit CYA27 is a flow assembly for the measurement of multiple parameters such as chlorine, chlorine dioxide, bromine, ozone, pH/ORP, conductivity or oxygen mainly in bypass installations. It is suitable for the following applications:
Drinking water
Process water
Seawater
Pool water

Show less

Features and specifications

Back

Details

Measuring principle

Ozone
Application

Application
Characteristic

Flow assembly for multiparameter measurement
Design

Flow through assembly with optimized flow path for disinfection sensors and for 12 mm sensors
optional: flow monitoring
optional: dosing
Material

Plexiglas (PMMA) with FKM seals
Dimension

Dimension
Process temperature

Process temperature
Process pressure

0 to 4 bar (0 to 58 psi) relative
Connection

G1/4" or adaptation

Show more
Show less

Accessories / Spare parts

Filter

Order code

Specification

- Order code XPC0014-

  Spare and upgrade modules CYA27

  Spare- and upgrade modules for flow assembly CYA27.

  Show details Show less
- Order code 71486835

  Kit CYA27 Flow switch, Non-Ex

  Show details Show less
- Order code 71486839

  Kit CYA27 Sampling valve PVC

  Show details Show less
- Order code 71486841

  Kit CYA27 Sampling valve PVDF

  Show details Show less
- Order code 71486843

  Kit CYA27 Status indication light

  Show details Show less
- Order code 71486844

  Kit CYA27 Potential matching connection

  Show details Show less
- Order code 71486845

  Kit CYA27 Wall mounting kit

  Show details Show less
- Order code 71486846

  Kit CYA27, Pipe-+railmounting kit

  Show details Show less
- Order code 71486849

  Kit CYA27 2x adapter G1/4-G1/8, PVC

  G1/8 inner thread, with O-Ring FKM

  Show details Show less
- Order code 71486850

  Kit CYA27 2x adapter G1/4-G1/2, PVC

  G1/2 inner thread, with O-Ring FKM

  Show details Show less
- Order code 71486852

  Kit CYA27 2x adapter G1/4-NPT1/4, PVC

  NPT1/4 inner thread, with O-Ring FKM

  Show details Show less
- Order code 71486855

  Kit CYA27 2x adapter G1/4-NPT1/2, PVC

  NPT1/2 inner thread, with O-Ring FKM

  Show details Show less
- Order code 71486857

  Kit CYA27 2x Adapter G1/4-G1/8, PVDF

  G1/8 inner thread, with O-Ring FKM

  Show details Show less
- Order code 71486858

  Kit CYA27 2x Adapter G1/4-G1/2, PVDF

  G1/2 inner thread, with O-Ring FKM

  Show details Show less
- Order code 71486860

  Kit CYA27 2x Adapter G1/4-NPT1/4, PVDF

  NPT1/4 inner thread, with O-Ring FKM

  Show details Show less
- Order code 71486863

  Kit CYA27 2x Adapter G1/4-NPT1/2, PVDF

  NPT1/2 inner thread, with O-Ring FKM

  Show details Show less
- Order code 71486865

  Kit CYA27 2x Adapter G1/4-6mm OD, PVDF

  Hose connection 6 mm OD/ 4 mm ID, with O-Ring FKM

  Show details Show less
- Order code 71486867

  Kit CYA27 2x Adapter G1/4-8mm OD, PVDF

  Hose connection 8 mm OD/ 6 mm ID, with O-Ring FKM

  Show details Show less
- Order code 71486871

  Kit CYA27 2x Adapter G1/4-12 mm, PVC

  Hose nozzle 12 mm OD, with O-Ring FKM

  Show details Show less
- Order code 71486872

  Kit CYA27 cable, 10 m, Non-Ex

  for flow switch or status indication light

  Show details Show less
- Order code 71486872

  Kit CYA27 cable, 10 m, Non-Ex

  for flow switch or status indication light

  Show details Show less
- Order code 71486881

  Kit CYA27 Tool set

  Content: Allen key 2.0 and 3.0, Hybrid wrench SW 17/19

  Show details Show less
- Order code 71486882

  Kit CYA27 cleaning brush set

  Show details Show less
- Order code 71486884

  Kit CYA27 sealing set modules complete

  Show details Show less
- Order code 71486885

  Kit CYA27 2x manual valve in/outlet PVC

  Show details Show less
- Order code 71486888

  Kit CYA27 Mounting clip with screws

  with counterpart for wall mounting

  Show details Show less
- Order code 71486889

  Kit CYA27 set of blind plugs PVC

  Show details Show less
- Order code 71486892

  Kit CYA27 2x spare flow body

  Show details Show less
- Order code 71488273

  Kit CYA27 2x manual valve in/outlet PVDF

  Show details Show less
- Order code 71372027

  Kit adapter CCS5x(D) for CYA27+CCA151

  Content: Clamp ring, thrust ring, + sealing
