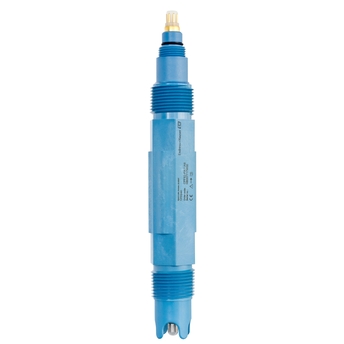

Orbipac CPF82 - Compact analog redox sensor for harsh environments ©Endress+Hauser

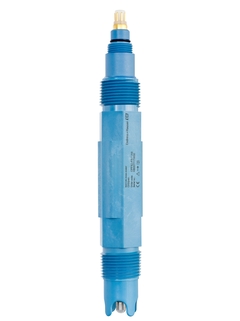

Orbipac CPF82 - Compact analog redox sensor for harsh environments ©Endress+Hauser
  • Orbipac CPF82 - Compact analog redox sensor for harsh environments
  • Orbipac CPF82 - Compact analog redox sensor for harsh environments

Compact electrode for wastewater, primaries and metal

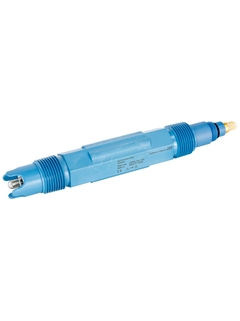

Orbipac CPF82 is the analog simple solution for ORP measurement in harsh environments. Its large, dirt-repellent PTFE diaphragm guarantees low maintenance while its integrated assembly saves space and time during flow or immersion installation.

Additional components

  • Benefits

    • Suitable for flow and immersion installation

    • Long-time stable: Second electrolyte bridge for better protection against electrode poisoning ions such as S2- or CN- ions

    • Robust polymer housing protects against mechanical damage

  • Field of application

    Orbipac CPF82 is the robust ORP sensor for treatment of industrial water and wastewater and for processes in mining industries. It monitors:

    • Inlet and outlet

    • Neutralization

    • Flotation

    • Leaching

Features and specifications

Back

Details

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Water, waste water, process, galvanic

  • Characteristic

    Resistent against electrolyte poisoning and dirt repellent gel-electrode including process connection NPT 3/4".

  • Measurement range

    -1500mV - -1500mV

  • Measuring principle

    Gel-compact electrode with double chamber reference system, kalium nitrate bridge electrolyte and PTFE-diaphragm, platinum pin

  • Design

    Compact electrode in PPS housing with NPT3/4" process connection.

  • Material

    PPS / glass / PTFE, platinum

  • Dimension

    Length: 120´mm
    (4.68 inch)

  • Process temperature

    -10°C - 110°C
    (14°F - 230°F)

  • Process pressure

    max. 10 bar
    (145 psi)

  • Connection

    TOP68 connection head

  • Ingres protection

    IP68

Documents / Manuals / Software

  • Technical Information Orbipac CPF81/CPF82 and CPF81D/CPF82D

    Compact pH / ORP electrodes, analog or digital with Memosens technology;
    For flow or immersion installation in industrial and waste water

    Technical Information (TI)
  • pH-/Redoxsensoren und Referenzhalbzellen pH/ORP sensors and reference half cells Operating Instructions

    Sensors with Memosens technology and analog sensors

    Operating Instruction (BA)
  • pH 測定セレクションガイド

    産業プロセスにおける pH 測定

    Competence Brochure (CP)
    08/15
    Japanese
  • CP00010C pH measurement in industrial processes for US market

    Selection and engineering guide for your industry and application

    Competence Brochure (CP)
    04/15
    English
  • Measurement and control aspect of pH using inductively coupled with bidirectional Memosens technology in flue gas desulfurization process

    White Paper CP971C pH measurement and control in a power utility is an
    integral part of process. The scrubber efficiency is highlydependent on
    the pH. Numerous opportunities were revealed for saving time, as well as
    the cost and materials in power plants. In afossil fuel power plant,
    the
    chemical energy stored in coal, oil, natural gas, shale oil, oxygen and
    air
    is converted into thermal, mechanical and finally into electrical
    energy. In
    other words, water is heated to steam, which spins a steam turbine. The
    steam turbine drives an electrical generator.

    Competence Brochure (CP)
    04/11
    English
  • CP01202C pH Sensors:Calibrate, clean, perform a calibration check or...?

    This white paper will address
    Knowing when to do a pH sensor calibration versus a calibration
    check
    How to properly clean a pH sensor
    How to perform a pH sensor calibration
    A decision tree for step by step guidance

    Competence Brochure (CP)
    02/12
    English
  • OrbiPac CPF82

    1 Redox measuring electrode with Pt 100 designed as combi-electrode

    Tender Text
    09/05
    English
  • TopHit, Sensor, PuriSys, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquisys pH/ORP, Liquisys Oxygen, Liquisys Chlorine, Liquiline M, Liquiline, CeraTex, Ceramax, CeraLiquid, CeraGel

    Product Code: CPS491-, CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPS42D-, CPS42-, CPS41E-, CPS41D-, CPS41-, CPS341D-, CPS31D-, CPS31-, CPS171D-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS71E-, CPS72-, CPS72D-, CPS76D-, CPS77D-, CPS91-, CPS91D-, CPS91E-, CPS92-, CPS92D-, CPS96D-, CPS97D-, CPS16D-, CCM223-, CCM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM223F-, COM253-, COM253F-, CPF201-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPM223-, CPM253-, CPS11-, CPS11D-, CPS11E-, CPS12-, CPS12D-, CPS12E-, CPS13-
    Approval Number: EAEC RU D-DE.AD07.B.01362/19
