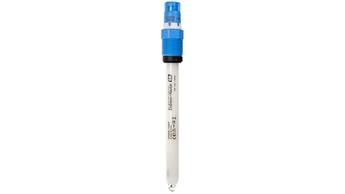

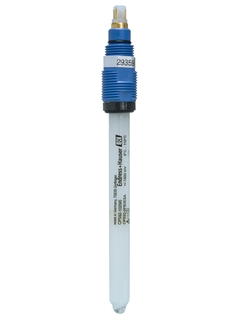

Orbipore CPS92 - Analog glass ORP electrode for heavily soiled media

Analog ORP sensor
Orbipore CPS92

Glass electrode for heavily polluted media in chemical processes, paper or paint production

CPS92
please wait
Loading price
Prices temporarily unavailable
from CHF 803.-

Specs at a glance

  • Measurement range

    -1500 mV - +1500 mV

  • Process temperature

    max. 110°C (230°F)

  • Process pressure

    max. 13bar (189psi)

Field of application

Orbipore CPS92 is the analog specialist for ORP measurement in fibrous media or media with a high content of suspended solids such as dispersions, precipitation reactions or emulsions. The open aperture prevents blocking and guarantees you the most reliable measurement under extreme process conditions.

  • Chemical processes

  • Pulp and paper industry

  • Contaminated media and suspended solids
    - Dispersions
    - Precipitation
    - Emulsions

Benefits

  • Open aperture for application in heavily soiled media

  • Low maintenance and long service life due to stabilized gel filling

  • Not affected by fluctuations in pressure or temperature

  • Simple products

  • Easy to select, install and operate
