Cell growth and biomass sensor
OUSBT66

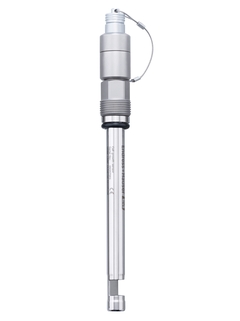

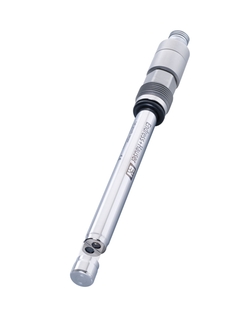

Cell growth and biomass sensor OUSBT66 ©Endress+Hauser

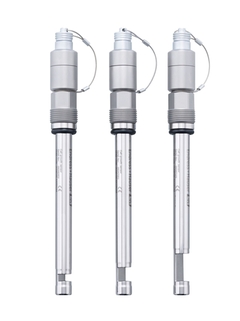

Available with three different path lengths ©Endress+Hauser

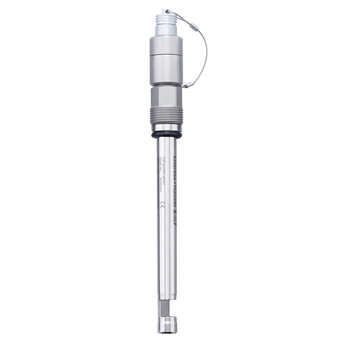

Cell growth and biomass sensor OUSBT66 ©Endress+Hauser

Hygienic NIR absorption measurement in fermentation and crystallization applications

The OUSBT66 NIR absorption sensor monitors cell growth, biomass processes, algae systems and crystallization processes. It provides you with reliable, precise measured values in real-time to optimize your process and your product yield. The sensor's hygienic design is CIP/SIP resistant and allows autoclavation. Equipped with NIST-traceable and certified clip-on filters, OUSBT66 is outstandingly easy to calibrate and verify.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Measurement range

      0 to 4 AU
      0 to 8 OD (depending on optical path length)

    • Process temperature

      0 to 90 °C (32 to 194 °F)
      Max. 135 °C for max. 2 hours

    • Process pressure

      Max. 10 bar abs at 90 °C
      (Max. 150 psi at 194 °F)

please wait Loading alternative products

Quick selection

Choose from our suggested options
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Real-time measurement for optimized processes and product yields

    • Reliable, precise measured values with excellent laboratory correlation

    • Easy verification and calibration with NIST-traceable clip-on filters - no need for complex liquid calibrations

    • ...

  • Field of application

    The OUSBT66 sensor measures the cell density, biomass and suspended solids in life sciences applications, such as:

    • Cell growth in bacterial fermentation

    • Mammalian cell culture applications

    • Biomass during fermentation processes

    • Monitoring of algae...

Features and specifications

Back

Details

  • Measuring principle

    Cell growth

  • Application

    Cell growth and biomass in fermentation processes
    Monitoring of algae concentration

    Control of crystallization processes
    Suspended solids measurement

  • Measurement range

    0 to 4 AU
    0 to 8 OD (depending on optical path length)

  • Design

    Hygienic design:
    Sterilizable and autoclaveable
    Sapphire windows without seals and crevices
    CIP/SIP resistant

  • Material

    Sensor housing: Stainless Steel 1.4435 (316L)
    Windows: Sapphire
    O-ring: EPDM

  • Process temperature

    0 to 90 °C (32 to 194 °F)
    Max. 135 °C for max. 2 hours

  • Process pressure

    Max. 10 bar abs at 90 °C
    (Max. 150 psi at 194 °F)

  • Ingres protection

    IP68
