Disinfection transmitter

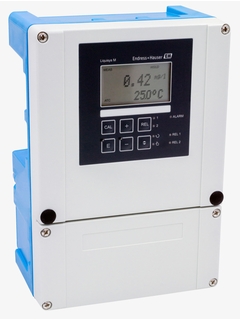

Liquisys CCM253
Compact field device for the water, wastewater, food and power industries
Liquisys CCM253 is a standard chlorine transmitter with integrated pH compensation for free chlorine. It improves your operational safety thanks to continuous plausibility, process and sensor checks. Select from numerous hardware and software modules, such as relays or fieldbus communication, to adapt it exactly to your measuring task. This modularity also allows you to upgrade the transmitter at any time. A simple menu and calibration make configuration and operation fast and easy.
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
Specs at a glance
-
Input
Chorine / Chlordioxide and pH/ORP Sensor.
-
Output
- Chlorine/Chlordioxid, pH, Temperature : 0/4-20mA- Profibus- Hart + 0/4-20mA
-
Quick selection
Individual configuration
-
Benefits
More operational safety: Continuous process check system, customized alarm configuration, calibration plausibility check.
Reliable chlorine and pH control: Current input for flow rate monitoring with controller shut off or for feedforward control.
Easy to...
-
Field of application
The Liquisys CCM253 transmitter works with all analog total chlorine, free chlorine, chlorine dioxide and pH sensors in:
Water & Wastewater
- Disinfection process control and monitoring
- Desalination with membrane technology
- Swimming and whirl pools...
Documents / Manuals / Software
-
Technical Information CCM 223/
Measurement of chlorine / chlorine dioxide / total chlorine
Transmitter for chlorine sensorsTechnical Information (TI) -
Liquisys M CCM223/253
Operating Instructions
Transmitter
Operating Instruction (BA) -
Liquisys M CLM223/253
Operating Instructions
Transmitter
Operating Instruction (BA) -
Liquisys M COM223/253
Operating Instructions
Transmitter
Operating Instruction (BA) -
Operating Instructions Liquisys M CXM223/253 PROFIBUS
Field Communikation for Liquisys M CXM223/253
Operating Instruction (BA) -
Operating Instructions Liquisys M CXM223/253 HART
Field Communication with Liquisys M CXM223/253
Operating Instruction (BA) -
Liquisys M CPM223/253
Operating Instructions
Transmitter
Operating Instruction (BA) -
Ex-safety instructions CXM2X3
Safety instructions for electrical apparatus for explosion-hazardous
areas as per EC Directive 94/9/EC (ATEX)Ex Safety Instructions (XA) -
Additional information for CSA Liquisys
Additional information for CSA Liquisys
Special Documentation (SD) -
Liquisys CCM253
Chlor/Chlordioxid- und Temperatur Messumformer
Tender Text12/16German -
Liquisys M CCM253
1 Chlorine and temperature transmitter
Tender Text09/05English -
GSD Single, GSD_EH_DP_AN_Liquisys_0x151D_V02_10_DPLIB, 14.04.2014 (Analysis, Liquisys M, 0x151D)
PROFIBUS DP,
PROFIBUS System Version: AnyGeneral Station Description (GSD)2.10.00Language neutral -
GSD Single, GSD_EH_PA_AN_Liquisys_0x1519_V02_1x_PALIB, 22.04.2014 (Analysis, Liquisys M, 0x1519)
PROFIBUS PA,
PROFIBUS System Version: AnyGeneral Station Description (GSD)2.10.00Language neutral -
DTM Single, LiquisysMCL_CCM2x3_DP_2_04, 19.10.2020 (Analysis, Liquisys M, 0x151D)
PROFIBUS DP,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.5.157.88Language neutral -
DTM Single, LiquisysMCL_CCM2x3_PA_2_40, 21.10.2020 (Analysis, Liquisys M, 0x1519)
PROFIBUS PA,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.5.157.88Language neutral -
DTM Single, LiquisysMCL_CCM2x3_PA_2_30, 20.10.2020 (Analysis, Liquisys M, 0x1519)
PROFIBUS PA,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.5.153.348Language neutral -
DTM Single, LiquisysMCL_CCM2x3_DP_2_30, 28.10.2020 (Analysis, Liquisys M, 0x151D)
PROFIBUS DP,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.5.153.348Language neutral -
DTM Single, LiquisysM_CCM2x3_PA_V2_20___V2_21, 20.10.2020 (Analysis, Liquisys M, 0x1519)
PROFIBUS PA,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.5.153.348Language neutral -
DTM Single, LiquisysM_CCM2x3_DP_V2_20___V2_21, 28.10.2020 (Analysis, Liquisys M, 0x151D)
PROFIBUS DP,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.5.153.348Language neutral -
DTM Single, LiquisysMChlorine_CCM2x3_V2_50, 26.10.2020 (Analysis, Liquisys M, 0x0096)
HART,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.85Language neutral -
DTM Single, LiquisysMChlorine_CCM2x3_V2_30, 26.10.2020 (Analysis, Liquisys M, 0x0096)
HART,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.39Language neutral -
DTM Single, LiquisysMChlorine_CCM2x3_V2_4x, 26.10.2020 (Analysis, Liquisys M, 0x0096)
HART,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.39Language neutral -
Liquisys Chlorine, Liquisys Conductivity, Liquisys Oxygen, Liquisys pH/ORP
Product Code: CCM223-, CCM253-, CLM223-, CLM253-, COM223-, COM253-, CPM223-, CPM253-
Declaration Number: EC_00575_01.17EU DeclarationGerman , English , fr -
TopHit, Sensor, PuriSys, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquisys pH/ORP, Liquisys Oxygen, Liquisys Chlorine, Liquiline M, Liquiline, CeraTex, Ceramax, CeraLiquid, CeraGel
Product Code: CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPS42D-, CPS42-, CPS41E-, CPS41D-, CPS41-, CPS341D-, CPS31D-, CPS31-, CPS171D-, CPS16D-, CPS491-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS71E-, CPS72-, CPS72D-, CPS76D-, CPS77D-, CPS91-, CPS91E-, CPS92-, CPS92D-, CPS96D-, CPS97D-, CCM223-, CCM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM223F-, COM253-, COM253F-, CPF201-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPM223-, CPM253-, CPS11-, CPS11D-, CPS11E-, CPS12-, CPS12D-, CPS12E-, CPS13-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: EAEC D-DE.AD07.B.01363/19MiscellaneousRussian -
TopHit, Sensor, PuriSys, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquisys pH/ORP, Liquisys Oxygen, Liquisys Chlorine, Liquiline M, Liquiline, CeraTex, Ceramax, CeraLiquid, CeraGel
Product Code: CPS491-, CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPS42D-, CPS42-, CPS41E-, CPS41D-, CPS41-, CPS341D-, CPS31D-, CPS31-, CPS171D-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS71E-, CPS72-, CPS72D-, CPS76D-, CPS77D-, CPS91-, CPS91D-, CPS91E-, CPS92-, CPS92D-, CPS96D-, CPS97D-, CPS16D-, CCM223-, CCM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM223F-, COM253-, COM253F-, CPF201-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPM223-, CPM253-, CPS11-, CPS11D-, CPS11E-, CPS12-, CPS12D-, CPS12E-, CPS13-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: EAEC RU D-DE.AD07.B.01362/19MiscellaneousRussian -
LIQUISYS M, Sensor
Product Code: CCM223-, CCM253-, CCS120-, CCS140-, CCS141-, CCS240-, CCS241-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: DE.C.31.004.A_46267MetrologyRussian -
Liquisys M, Sensor
Product Code: CCM223-, CCM253-, CCS120-, CCS140-, CCS141-, CCS240-, CCS241-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: DE.C.31.004.A_46267MetrologyRussian -
Liquisys Chlorine, Liquisys Conductivity, LIQUISYS M, Liquisys Oxygen, Liquisys Turbidity, SmarTec S
Product Code: CUM253-, CUM223-, CPM253-, CPM223-, COM253F-, COM253-, COM223F-, COM223-, CLM253-, CLM223F-, CLM223-, CLD134-, CCM253-, CCM223-
Region/Country: Canada, USA
Approval Agency: CSAOrdinary Location Product SafetyEnglish
Accessories / Spare parts
-
-
Order code 51500320
Kit CXM2X3 Relaismod. 2rel
Upgrade of LIQUISYS-M basis version by 2 floating changeover contacts.
-
-
-
Nr 30 Order code 51511446
KIT CXM2X3 relay mod. 2rel / CSA
Upgrade of LIQUISYS-M basis version by 2 floating changeover contacts.
-
-
-
Nr 35 Order code 51500321
Kit CXM2X3 Relaismodule 4rel
Upgrade of LIQUISYS-M basic version by 4 floating changeover contacts.
-
Nr 35 Order code 51511447
KIT CXM2X3 relay mod. 4rel / CSA
-
-
-
Nr 40 Order code 51504304
Kit CXM2X3 Relais Mod. 2rel.+I/CSA
Upgrade of LIQUISYS-M basic version by 2 contacts and current input 4-20mA.
-
-
-
Nr 45 Order code 51504305
Kit CXM2X3 Relais Mod. 4Rel+I/CSA
Upgrade of LIQUISYS-M basic version by 4 contacts and current input 4-20mA.
-
-
-
Nr 50 Order code 51502467
Kit CCM2x3 Central module I1
-
-
-
Nr 70 Order code 51502497
Kit CCM2x3 central module I1 HART
-
-
-
Nr 60 Order code 51502468
Kit CCM2x3 Central module I2
-
-
-
Nr 80 Order code 51502496
Kit CCM2x3 central module I2 HART
-
-
-
Nr 90 Order code 51502495
Kit CCM2X3 central module Profibus PA
-
-
-
Nr 100 Order code 51502498
Kit CCM2X3 central module Profibus DP
-
Nr 100 Order code 71134731
Kit CCM2x3: Central mod. PB DP; H/W 2.1x
-
-
-
Nr 35 Order code 71134732
Kit CxM2x3: Relay mod. for PBDP; H/W2.1x
Content: 1x Relay module Profibus DP 2x Relay, 1x Current input DP connection qualified from H/W 2.10
-
-
-
Nr 10 Order code 51500317
KIT CXM2X3 power supply 100..230 V AC
-
-
-
Nr 20 Order code 51500318
-
-
-
Nr 110 Order code 51502466
KIT MKC1 MEK transmitter Cl wo pH non Ex
-
-
-
Nr 120 Order code 51502465
Kit MKC1 MEK transmitter Cl+pH non Ex
-
-
-
Nr 410,420,46 Order code 51501068
KIT CXM253 housing cover
-
-
-
Nr 335 Order code 71071446
Kit CxM253: Front foil + 6 key lifters
-
-
-
Nr 330,340,45 Order code 51501073
KIT CXM253 Internal housing parts
-
-
-
Order code 51502184
Transmitter connector set M12 Fieldbus
-
-
-
Nr 230 Order code 51501072
KIT CXM253 bottom of housing
-
-
-
Nr 260 Order code 51501069
KIT CXM/153/253: 2 pair of hinges
-
-
-
Nr 270 Order code 51501079
KIT CXM253 terminal strip power supply
-
-
-
Nr 250 Order code 51501074
KIT CXM253 Ribbon cables
-
-
-
Order code 50086842
Post mounting kit for LIQUISYS
for mounting the field-transmitters on horizontal or vertical pipes (max. diam. 60 mm). Material: stainless steel V2A
-
Order code 51500385
Upgrade "Plus-Package" for LIQUISYS-M
Upgrade of LIQUISYS-M basic version (parameter pH,Cond.,Tu,CL,O2 (WX to WS)) to S-version (plus-package). Serial number of instrument needed.
-
Order code 51500963
Upgrade cleaning for LIQUISYS-M
Upgrade of LIQUISYS-M basic version by cleaning functionality (Chemoclean) (serial number of instrument needed). If not yet installed, a 4-relay board must be ordered separately (51500321).
-
Order code 51502460
Upgrade "pH-Package for CCM 2X3-EK"
Upgrade kit for retrofitting a basic version Liquisys S CCM2X3-EK to pH or ORP measurement with added features. The serial number of the instrument has to be included to the order.
-
Order code 51503526
Upgrade "pH-Package for CCM 2X3-ES"
Upgrade kit for retrofitting Liquisys S CCM2X3-ES to pH or ORP measurement with added features.
-
-
Predecessor
