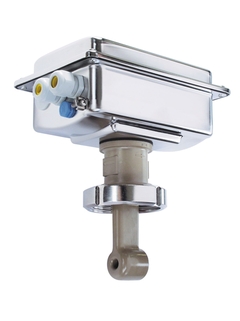

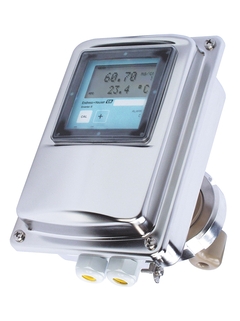

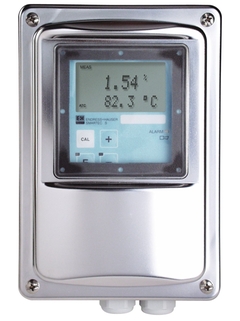

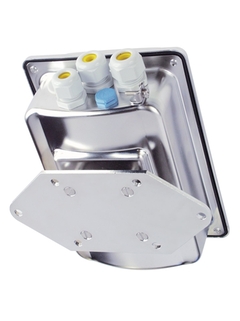

Conductivity compact device
Smartec CLD132

Conductivity compact device
Smartec CLD132 ©Endress+Hauser
Conductivity compact device
Smartec CLD132 ©Endress+Hauser
Conductivity compact device
Smartec CLD132 ©Endress+Hauser
Conductivity compact device
Smartec CLD132 ©Endress+Hauser

The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

Toroidal conductivity measuring system for hygienic applications

Smartec CLD132 is a measuring system for inductive conductivity in the food & beverage industry. The combination of a transmitter and a sensor is interference-free, easy-to-use and features a hygienic design that protects your products and processes from contamination. Moreover, Smartec CLD132 is equipped with a stainless steel temperature sensor that gives you an ultrafast temperature response for reliable measurement in separation applications.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Measurement range

      100 µS/cm - 2000 mS/cm

    • Process temperature

      max. 140°C (max. 30 min.)
      284°F (max. 30 min.)

    • Process pressure

      max. 12 bar (90°C)
      (174 psi(194°F))

Quick selection

Choose from our suggested options
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Engineered for quick temperature response

    • Hygienic design avoids recontamination

    • Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)

    • Low risk of soiling due to encapsulated sensor

  • Field of application

    Smartec CLD132 measures toroidal conductivity particularly in food & beverage applications, where a fast temperature response is needed, such as:

    • Alkaline/acid concentration control in remaking

    • Phase separation of product/water and product/product...

Features and specifications

Back

Details

  • Measuring principle

    Inductive

  • Application

    - Alkali/acid concentration control - phase separation in pipe systems - monitoring and control of bottle cleaning systems - product monitoring in breweries, dairies and the beverage industry - CIP system control

  • Characteristic

    Compact measuring system for an inductive conductivity measurement special made for media with a high conductivity.

  • Measurement range

    100 µS/cm - 2000 mS/cm

  • Measuring principle

    Inductive measuring system including transmitter and sensor.

  • Design

    Compact transmitter made of stainless steel with an inductive sensor made of PEEK in a separate or compact version.

  • Material

    Housing: Stainless steel 1.4301 polished Window: Polycarbonate Sensor: PEEK, stainless steel 1.4435 Sealing: Chemraz

  • Process temperature

    max. 140°C (max. 30 min.)
    284°F (max. 30 min.)

  • Process pressure

    max. 12 bar (90°C)
    (174 psi(194°F))

  • Temperature sensor

    Pt100

  • Ex certification

    No

  • Ingres protection

    IP67

  • Input

    One-channel transmitter incl. temperature.

  • Output

    Conductivity and temperature 0/4-20 mA, HART, Profibus.

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • 10
  • 20
  • 40
  • 30
  • 120
  • 121
  • 122
  • 130
  • 140
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 51
  • 53
  • 56
  • 54
  • 60
  • 61
  • 70
  • 71
  • 72
  • 73
  • 74
  • 75
    • Nr 75 Order code 51502381

      Kit CLD132 Main module Profibus DP

    • Nr 75 Order code 71134733

      Kit CLD132: Central mod. PB DP; H/W 2.1x

      Content: 1x Central module Profibus DP Module name: LSCP-DP qualified from H/W 2.10

    • Order code 71134735

      Kit CLD13x: Terminal module for PB DP

      Content: 1x Terminal module Profibus DP Module name : LSKB qualified for central mod. from H/W 2.10

  • 80
  • 90
  • 91
  • 100
  • 101
  • 110
    • Order code 51501643

      Upgrade"Extended Functions"for Smartec

    • Order code CLS52-

      Indumax CLS52

      Conductivity, inductive sensor. Application: hygienic, food. CIP control, phase separation. Process temp. max 125oC (short 140oC). Process pressure max. 16 bar (90oC). Sensor material: PEEK. Quality certificate.

    • Order code CLS54-

      Indumax CLS54

      Conductivity, inductive sensor Application: hygienic Food, pharma CIP control, phase separation Process temp. max.120oC (short 150oC) Process pressure max.12 bar (20oC) Sensor material: PEEK Quality certificate

    • Order code 50081902

      Calibration solution CLY11-A, 74,0 uS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081903

      Calibration solution CLY11-B,149,6 uS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO.

    • Order code 50081904

      Calibration solution CLY11-C,1,406mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081905

      Calibration solution CLY11-D,12,64 mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM to NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081906

      Calibration solution CLY11-E,107,00mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO
