Analog conductivity sensor
Indumax CLS50

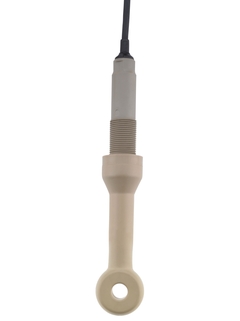

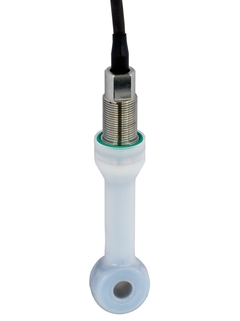

Analog conductivity sensor Indumax CLS50 ©Endress+Hauser
Analog conductivity sensor Indumax CLS50 ©Endress+Hauser

The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

  • Analog conductivity sensor Indumax CLS50
  • Analog conductivity sensor Indumax CLS50

Toroidal conductivity sensor for chemical applications

Indumax CLS50 is an inductive conductivity sensor for standard, hazardous and high-temperature applications. Benefit from high chemical resistance and long durability thanks to robust materials (PFA, PEEK). Moreover, it is insensitive to soiling and performs reliable and repeatable even in harsh and aggressive media. The wide temperature range of -20 to +180 °C leaves nothing to be desired.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Measurement range

      2µS/cm - 2000 mS/cm

    • Process temperature

      max. 180°C (PEEK)
      (356°F)max. 125°C (PFA)
      (254°F)

    • Process pressure

      max. 20 bar (PEEK)
      (290 psi) max. 16 bar (PFA)
      (233 psi)

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

CLS50
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • High durability and chemical resistance even under harsh conditions

    • Dirt-repellent materials and large sensor opening avoid soiling

    • Wide temperature range and highly resistant materials make the sensor suitable for virtual any application

    • Robust design...

  • Field of application

    Indumax CLS50 measures toroidal conductivity in:

    • Chemicals:
      - Concentration measurement of acids and bases
      - Quality monitoring of chemical products in tanks and pipes

    • Food & beverages:
      - Phase separation of product/product mixtures in...

Features and specifications

Back

Details

  • Measuring principle

    Inductive

  • Application

    Waste water, process

  • Characteristic

    Inductive conductivity cell made of highly resistant material for conductivity and concentration neasurements in process applications.

  • Measurement range

    2µS/cm - 2000 mS/cm

  • Measuring principle

    Inductive conductivity measurement

  • Design

    - No direct contact with the media because of the sensor coating made of highly resistant material.

  • Material

    PEEK or PFA

  • Dimension

    Electrode: outside diameter: appr. 47 mm inside diameter: appr. 15 mm

  • Process temperature

    max. 180°C (PEEK)
    (356°F)max. 125°C (PFA)
    (254°F)

  • Process pressure

    max. 20 bar (PEEK)
    (290 psi) max. 16 bar (PFA)
    (233 psi)

  • Temperature sensor

    Integrated Pt100

  • Ex certification

    ATEX

  • Connection

    Process connection: NPT1", DN50, AINSI, JIScable: fixed cable connection.

  • Ingres protection

    IP67

  • Additional certifications

    Calibration certification of the cell constant.

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • 255
    • Nr 255 Order code 51500482

      Kit CLS50 PTFE gasket

      Contents: 2 pcs. PTFE gaskets, 1 pcs. 3/4" nut Max clamping torque of 20 Nm

    • Nr 255 Order code 71086368

      Kit CLS50 >20081001: CHEMRAZ O-rings

  • 250
  • 260
  • 270
  • 280
  • 285
  • 286
  • 293
  • 291
  • 292
    • Order code 51500753

      Accessories for cable CLS 50 / CLS 52

    • Order code 50081902

      Calibration solution CLY11-A, 74,0 uS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081903

      Calibration solution CLY11-B,149,6 uS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO.

    • Order code 50081904

      Calibration solution CLY11-C,1,406mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081905

      Calibration solution CLY11-D,12,64 mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM to NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081906

      Calibration solution CLY11-E,107,00mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

  • Predecessor
