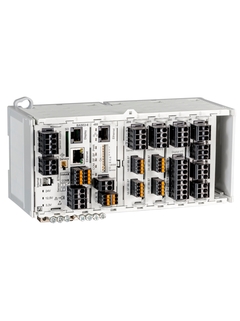

Liquiline CM444R is a compact DIN-Rail transmitter for pH, ORP, conductivity, oxygen, turbidity ...

4-channel transmitter
Liquiline CM444R

Expandable multiparameter DIN-rail and cabinet device for all industries

CM444R
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
Liquiline CM444R is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen and more.
  • F
  • L
  • E
  • X
©Endress+Hauser

Liquiline CM444R is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen, chlorine, turbidity, sludge level, SAC, nitrate and many other parameters.

An optional display enables configuration, maintenance and operation of the measuring point on-site.
  • F
  • L
  • E
  • X
©Endress+Hauser

An optional display enables configuration, maintenance and operation of the measuring point on-site.

Heartbeat Technology offers diagnostics, verification and monitoring of the measuring point.
  • F
  • L
  • E
  • X
©Endress+Hauser

Liquiline transmitters with Heartbeat Technology offer status-oriented maintenance and easy verification of the measuring point and help you to carry out optimization measures.

Liquiline CM444R is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen, chlorine, turbidity, sludge level, SAC, nitrate and many other parameters.

Memosens technology Heartbeat Technology

Specs at a glance

  • Input

    1 to 4x Memosens digital input
    2x 0/4 to 20mA Input optional
    2 to 4x Digital input optional

  • Output / communication

    2 to 8x 0/4 to 20 mA current outputs, alarmrelay,
    4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet

  • Ingress protection

    Transmitter: IP20
    Optional Display: IP66

Field of application

Liquiline CM444R allows you to connect up to 4 Memosens sensors of your choice from over 12 measurement parameters. With its compact design, it fits into any cabinet and can be expanded at any time with inputs, outputs, controllers, math modules, and sensor channels. The transmitter belongs to the Liquiline platform with standardized system integration, operation, and spare parts. Heartbeat Technology helps you find the ideal balance between measurement point availability and maintenance costs.

Liquiline CM444R is suitable for all industries and their utilities, such as:

  • Food & Beverages

  • Life Sciences

  • Power & Energy

  • Water, Wastewater & Waste

  • Chemicals

  • Marine

It features the following communication protocols and interfaces:

  • 0/4...20 mA

  • HART

  • PROFIBUS DP

  • Modbus RS485/RTU

  • Modbus TCP

  • EtherNet/IP

  • PROFINET

  • Webserver

The transmitter can be extended with a module whose explosion protection approvals, such as IECEx, ATEX, and CSA, allow the connection of sensors installed in hazardous areas.

Benefits

  • Saves space, saves money:
    Small footprint, 4 channels in one device, expandable at any time, saves space in cabinets – perfect for skids.

  • High-speed installation:
    No cut-out in cabinet door, one-click DIN-rail mounting, minimized wiring.

  • Simple and safe commissioning:
    Saving configuration on SD card enables fast set-up on duplicate installations.

  • Easy to operate and service:
    Intuitive user interface, hot plug & play with pre-calibrated Memosens sensors, universal components fit all parameters.

  • Process control from a distance:
    Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser - even via Smartphone.

  • Higher availability, lower costs:
    Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures.

  • Drive connectivity: Liquiline Edge Module CYY7 transfers process data to Netilion, independently of the fieldbus. This allows remote overview and the use of IIoT services. It’s available in new products or as upgrade to installed Liquiline platforms.

Videos

  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

  • Memosens technology
    Memosens 2.0: Cutting-edge sensor technology reloaded

    Make life easier, increase process safety and stay connected with Memosens 2.0 digital technology.

  • Heartbeat Technology
    Smart instrumentation through Heartbeat Technology

    You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.

Extended selection

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

FLEX: Extended ©Endress+Hauser

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
Loading alternative products

Success stories

  • Dow plant in Stade, Germany Dow plant in Stade, Germany

    Automated pH measuring point in wastewater

    The Dow plant in Stade relies on Endress+Hauser solutions for pH monitoring in the treatment of production wastewater.

  • real-time monitoring of critical parameters in fermentation processes real-time monitoring of critical parameters in fermentation processes

    Advanced bioprocess control

    From time consuming sample analysis to real-time monitoring of critical parameters in fermentation processes thanks to complete solutions from hardware to development and analytical services.

  • Butoniga Reservoir Croatia Butoniga Reservoir Croatia

    How Istria is quenching its thirst

    Endress+Hauser enables fast and reliable water analysis at Butoniga Reservoir, ensuring optimal layer selection, improved water quality and reduced operating costs.

  • Disinfection of bottles and crates Disinfection of bottles and crates

    Cheers!

    The disinfection panel offers Maisel Brewery a stable, low-maintenance and reliable disinfection measurement system that enables optimal dosing and saves costs.

  • Wastewater treatment at Belgium Wastewater treatment at Belgium

    50% less precipitant - 100% reliability and cooperation

    IDEA achieved tremendous cost savings through continous monitoring with the CA80PH Analyzer at their site in Wallonia
