CYK10 measuring cable is used with all sensors with Memosens plug-in head.

Digital measuring cable
CYK10

Memosens data cable for all sensors with Memosens plug-in head

CYK10
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information

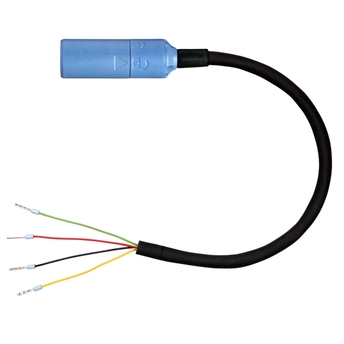

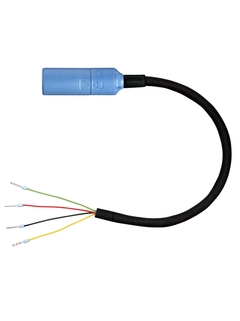

CYK10 measuring cable is used with all sensors with Memosens plug-in head. ©Endress+Hauser

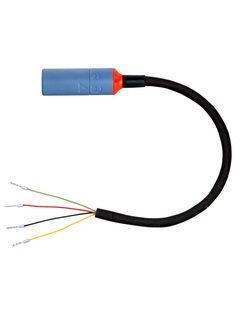

Ex-version of CYK10: indicated by an orange ring ©Endress+Hauser

Specs at a glance

  • Installation

    Inductive plug- head for digital sensors with Memosens technology and wire terminals or M12 plug to connect to the transmitter

  • Ex certification

    ATEX II 1G Ex ia IIC T3/T4/T6
    FM, CSA IS Cl.1 Div 1 Gr. A-D
    ATEX, NEPSI II 3G Ex ic IIC

  • Ingress protection

    IP68

Field of application

CYK10 guarantees absolute water-proof connection of Memosens sensors to the transmitter. Its inductive coupling shows no contact corrosion and guarantees galvanic isolation of transmitter and medium. Simply forget about limited cable length, interfering potentials or moisture and benefit from completely safe and reliable signal transmission.

The Memosens data cable CYK10 is applied in Memosens systems measuring the following parameters:

  • pH/ORP

  • Dissolved oxygen (amperometric)

  • Conductive conductivity

  • Disinfection

Benefits

  • Maximum process safety through non-contact, inductive and digital signal transmission: No contact corrosion, absolutely watertight, no interference potential.

  • Increased availability of the measuring point: Digital data transmission provides an automatic error message if the signal is lost.

  • More flexibility in plant planning and installation: Cable length up to 100 m is possible.

  • Approved for hazardous area use.

Get this product as part of a bundle

  • Free chlorine panel for process and pool water and utilities Free chlorine panel for process and pool water and utilities
    • Bundle

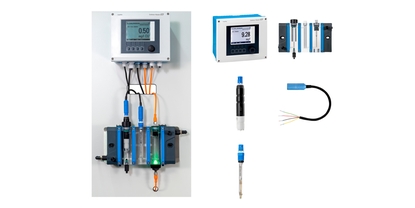

    Free chlorine process water panel

    Ready-to-use panel bundle for reliable and precise monitoring of disinfection processes

    Loading price
    Prices temporarily unavailable
    Price on request
    activating price
    price: provide information
    Price after configuration in cart
  • pH measuring point for abrasive media and cyanide leaching in Mining, Minerals and Metals industry pH measuring point for abrasive media and cyanide leaching in Mining, Minerals and Metals industry
    • Bundle

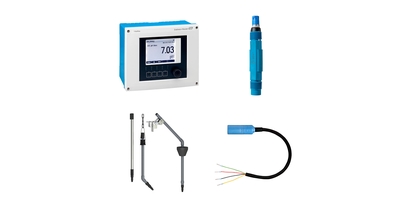

    pH measurement in abrasive media and cyanide leaching
