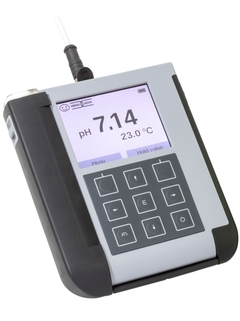

Multiparameter handheld
Liquiline To Go CYM290

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Portable device for pH/ORP, conductivity, oxygen and temperature measurement in all industries

With Liquiline To Go CYM290 you get the information you need, where you need it. The robust multiparameter handheld enables you to control any measuring point in your plant with the identical Memosens sensors that you use in your process. This guarantees full data consistency between your measurements with results you can trust: reliable measuring values that allow you to quickly take any remedial actions necessary to keep your process running under optimal conditions.

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configuratorto continue
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue

Individual configuration

Continue your selection from all possible options

Configure

Additional components

RNB130
Primary switched-mode power supply for DIN rail

Power supply for one 4 wire sensor or transmitter.
More information
Compare
Memograph M RSG45
Advanced Data Manager

Saves, visualizes, analyzes and communicates
More information
Compare
Ecograph T RSG35
Universal Graphic Data Manager

Paperless recording, visualization and monitoring of the process values at the same time
More information
Compare
RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
More information
Compare

Benefits
Make the right decisions for your process: the handheld's reliable measurements with 100% signal integrity help you to take the appropriate action at the right moment.

Trust your grab sample values: using the same technology for process and grab sample...

Show more
Make the right decisions for your process: the handheld's reliable measurements with 100% signal integrity help you to take the appropriate action at the right moment.

Trust your grab sample values: using the same technology for process and grab sample measurement provides you with full consistency.

Take it to any measuring point: the robust, shock-proof housing with ingress protection to IP66/67 enables fast process control even in the most challenging environments.

Simplify your daily work: hot plug & play with pre-calibrated Memosens sensors enables you to rapidly change from one parameter to another.

Show less

Field of application
Liquiline To Go CYM290 is a multiparameter handheld for the measurement of:

pH/ORP

Conductivity / conductivity trace

Oxygen / oxygen trace

Temperature

It suits all industries and their utilities allowing the reliable control of

Measuring loops

Grab...

Show more
Liquiline To Go CYM290 is a multiparameter handheld for the measurement of:

pH/ORP

Conductivity / conductivity trace

Oxygen / oxygen trace

Temperature

It suits all industries and their utilities allowing the reliable control of

Measuring loops

Grab samples (on-site as well as in the laboratory)

Process points where no online measurement is installed

Show less

Features and specifications

Back

Details

Measuring principle

Glass electrode

Measuring principle

Sensor Oxygen

Measuring principle

Glass electrode
Application

for field laboratory use
Installation

portable instrument
Characteristic

handheld instrument for pH, conductivity and dissolved oxygen Memosens sensors
Measuring principle

pH, conductivity and dissolved oxygen Memosens sensors
Design

portable handheld
Material

PA 12, GF30 + TP
Dimension

approx. (132 x156 x 30) mm
Ex certification

no
Ingres protection

IP 66/67
Input

M8 contact for Memosens lowpower protocol, one channel instrument
Output

N/a

Show more
Show less

Documents / Manuals / Software

Download type

Filter

Liquiline To Go CYM290 and Liquiline To Go Ex CYM291 Technical Information
Portable device for hazardous and non-hazardous areas

Technical Information (TI)
Liquiline To Go CYM290
Portable multiparameter meter for use with analog or digital sensors.

Operating Instruction (BA)
L’automatisation des process vaut son pesant d’or
Memosens Les sondes de pH améliorent les process chez Agnico Eagle

Case Studies (CS)

07/16

fr
Process automation worth its weight in gold
Memosens pH sensors improve processes at Agnico Eagle

Case Studies (CS)

07/16

English
Prozessautomatisierung, die Gold wert ist
Memosens pH-Sensoren verbessern Prozesse bei Agnico Eagle

Case Studies (CS)

07/16

German
Get the information you need, where you need it
Liquiline To Go handhelds for pH/ORP, conductivity and oxygen

Innovations (IN)

04/15

English
L’information dont vous avez besoin, là où vous en avez besoin
Terminal portable Liquiline To Go pour le pH/redox, la conductivité et
l'oxygène dissous

Innovations (IN)

04/15

fr
Die Informationen, die Sie brauchen – immer und überall
Die Liquiline To Go Handmessgeräte für pH/Redox, Leitfähigkeit und
Sauerstoff

Innovations (IN)

04/15

German
American version: Get the information you need, where you need it
American version: Liquiline To Go handhelds for pH/ORP, conductivity and
oxygen

Innovations (IN)

04/15

English
Liquiline
Product Code: CYM290-
Declaration Number: EC_00148_01.16

EU Declaration

German , English , fr
Liquiline
Product Code: CYM290-
Declaration Number: EC_00148_02.16

EU Declaration

German , English , fr
ANALOG, Chloromax, Liquiline, Memosens, Sensor
Product Code: CYM291-, CYM290-, CCS55D-, CCS51D-, CCS51-, CCS50D-, CCS50-, CCS241-, CCS240-, CCS142D-, CCS141-, CCS140-, CCS120D-, CCS120-
Approval Number: EAEC RU D-DE.AD07.B.01362/19

Miscellaneous

Russian
SmarTec S, SmarTec, Sensor, Memosens, Liquisys Conductivity, Liquiline, InduMax P, InduMax H, ConduMax W, ConduMax H, Chloromax, ANALOG
Product Code: CLM253-, CLS12-, CLS13-, CLS15-, CLS15D-, CLS16-, CLS16D-, CLS19-, CLS21-, CLS21D-, CLS30-, CLS50-, CLS50D-, CLS54-, CLS54D-, CLS82D-, CYM290-, CLM223F-, CLM223-, CLD18-, CLD134-, CLD132-, CCS55D-, CCS51D-, CCS51-, CCS50D-, CCS50-, CCS241-, CCS240-, CCS142D-, CCS141-, CCS140-, CCS120D-, CCS120-
Region/Country: Russia (Declaration of Conformity)
Approval Number: EAEC RU D-DE.AD07.B.01363/19

Miscellaneous

Russian
Liquiline
Product Code: CM72-, CM82-, CYM290-, CYM291-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: OC.C.31.004.A NO 76388

Metrology

Russian

Show more
Show less

Accessories / Spare parts

Filter

Order code

Specification

- Order code 71281544

  Kit CYM29x: Watering Cap

  Show details Show less
- Order code 71281551

  Kit CYM29x: Adapter sleeve

  Show details Show less
- Order code 71296856

  Kit CYM29x: carry case Ex + non Ex

  Show details Show less
- Order code CYK20-

  Memosens Lab Cable CYK20

  Memosens cable lab- and portable applications for Memosens plug-in head sensors. Connection for ex- and non hazardous sensors. Memobase Plus lab tool No connection to field transmitters ::Thin and flexible ::Optimum for lab application

  Show details Show less

Show more
Show less
