Show all products: Analysis Disinfection / Chlorine
Download as PDF

Digital service tool
Memocheck CYP02E

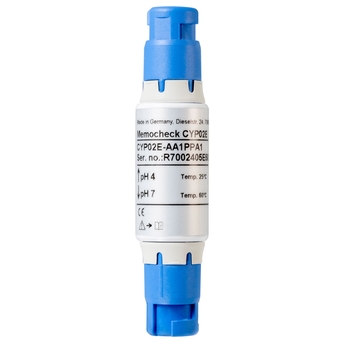

Digital service tool for non-hazardous areas ©Endress+Hauser

Memocheck CYP02E is available for non-hazardous...

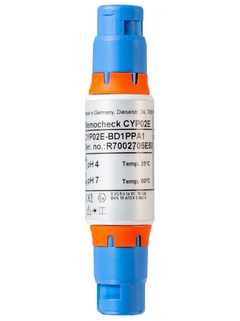

Digital service tool for hazardous areas ©Endress+Hauser

... and hazardous applications.

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

  • Digital service tool for non-hazardous areas
  • Digital service tool for hazardous areas

Measured value simulator for Memosens measuring points

Memocheck CYP02E is a service tool for fast and easy on-site checks of your measuring systems. The double plug-in head simulates two pre-defined sensor statuses. Memocheck is connected instead of the sensor and checks the complete measuring chain from cable coupling to the process control system. You can be sure that the measured values are transmitted error free.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

CYP02E
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • Fast and easy on-site checks: Twin plug-in head simulates two different sensor statuses to verify correct installation or commissioning of the measuring point.

    • Safety for your measuring chain: Checks signal transmission from cable coupling to the process...

  • Field of application

    Memocheck simulates measured values for pH and a second parameter such as pH, ORP, dissolved oxygen, conductivity or chlorine. It allows easy and reliable checks of Memosens measuring systems during:

    • Installation

    • Commissioning

    • Troubleshooting

    Memocheck...

Features and specifications

Back

Details

  • Measuring principle

    Potentiometric

  • Application

    Memocheck service tool for quick checks of measuring chains with Memosens technology

  • Measuring principle

    Amperometric oxygen measurement

  • Application

    Memocheck service tool for quick checks of measuring chains with Memosens technology

  • Measuring principle

    Potentiometric

  • Application

    Memocheck service tool for quick checks of measuring chains with Memosens technology

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Memocheck service tool for quick checks of measuring chains with Memosens technology

  • Measuring principle

    Free chlorine

  • Application

    Memocheck service tool for quick checks of measuring chains with Memosens technology

Documents / Manuals / Software

  • Memocheck CYP02E

    Service tool for fast checking of measuring systems

    Technical Information (TI)
  • Memocheck CYP02E

    Service tool for fast checking of measuring systems

    Operating Instruction (BA)
  • Memocheck CYP02E

    Supplement to BA02017C
    Safety instructions for electrical apparatus in explosion-hazardous
    areas

    Ex Safety Instructions (XA)
  • Memocheck CYP02E

    Supplement to BA02017C
    Safety instructions for electrical apparatus in explosion-hazardous
    areas

    Ex Safety Instructions (XA)
  • Memocheck CYP02E

    Service tool for fast checking of measuring systems
    Supplement to BA02017C
    Safety instructions for electrical apparatus in explosion-hazardous
    areas
    UK Ex II 2G Ex ia IIC T6 Gb

    Ex Safety Instructions (XA)
  • Memocheck CYP02E

    Supplement to BA02017C
    Safety instructions for electrical apparatus in explosion-hazardous
    areas

    Ex Safety Instructions (XA)
  • Memocheck CYP02E

    Supplement to BA02017C
    Safety instructions for electrical apparatus in explosion-hazardous
    areas

    Ex Safety Instructions (XA)
  • Memocheck CYP02E

    Supplement to BA02017C
    Safety instructions for electrical apparatus in explosion-hazardous
    areas

    Ex Safety Instructions (XA)
  • Memocheck

    Product Code: CYP02E-
    Declaration Number: EC_00851_01.20

    EU Declaration
    German , English , French
  • Memocheck

    Product Code: CYP02E-
    Declaration Number: EC_00850_01.20

    EU Declaration
    German , English , French
  • Memocheck, Memosens

    Product Code: CYP02E-, CPS97E-, CPS97D-, CPS96E-, CPS92E-, CPS91E-, CPS77E-, CPS77D-, CPS76E-, CPS72E-, CPS71E-, CPS62E-, CPS61E-, CPS47E-, CPS47D-, CPS42E-, CPS41E-, CPS31E-, CPS16E-, CPS12E-, CPS11E-
    Region/Country: Europe (ATEX)
    Approval Agency: DEKRA
    Protection: Ex ia IIC T6 Gb, Ex ia IIC T6...T3 Ga, Ex ia IIC T6...T4 Ga

    Explosion Protection
    German , English
  • Memocheck, Memosens

    Product Code: CYP02E-, CPS97E-, CPS97D-, CPS92E-, CPS91E-, CPS77E-, CPS77D-, CPS72E-, CPS71E-, CPS61E-, CPS47E-, CPS47D-, CPS42E-, CPS41E-, CPS31E-, CPS12E-, CPS11E-
    Region/Country: Japan

    Explosion Protection
    Japanese
  • Memocheck, Memosens

    Product Code: CYP02E-, CPS97E-, CPS97D-, CPS92E-, CPS91E-, CPS77E-, CPS77D-, CPS72E-, CPS71E-, CPS61E-, CPS47E-, CPS47D-, CPS42E-, CPS41E-, CPS31E-, CPS12E-, CPS11E-, CLS82E-, CLS21E-, CLS16E-, CLS15E-
    Region/Country: Canada, USA
    Approval Agency: CSA

    Explosion Protection
    English
  • Memocheck, Memosens

    Product Code: CPS11E-, CPS12E-, CPS41E-, CPS91E-, CYP02E-
    Region/Country: Brazil
    Approval Agency: INMETRO
    Protection: Ex ia IIC T6 Gb, Ex ia IIC T6...T3 Ga, Ex ia IIC T6...T4 Ga

    Explosion Protection
    Portuguese
  • Memocheck, Memosens

    Product Code: CYP02E-, CPS97E-, CPS97D-, CPS96E-, CPS92E-, CPS91E-, CPS77E-, CPS77D-, CPS76E-, CPS72E-, CPS71E-, CPS62E-, CPS61E-, CPS47E-, CPS47D-, CPS42E-, CPS41E-, CPS31E-, CPS16E-, CPS12E-, CPS11E-
    Region/Country: International (IECEx)
    Approval Agency: DEKRA
    Protection: Ex ia IIC T6 Gb, Ex ia IIC T6...T3 Ga, Ex ia IIC T6...T4 Ga

    Explosion Protection
    English
  • Memocheck, Memosens

    Product Code: CYP02E-, CPS97D-, CPS91E-, CPS77D-, CPS71E-, CPS61E-, CPS47D-, CPS41E-, CPS12E-, CPS11E-
    Region/Country: China
    Approval Agency: NEPSI
    Protection: Ex ia IIC T6 Gb, Ex ia IIC T6...T3 Ga, Ex ia IIC T6...T4 Ga

    Explosion Protection
    Chinese
