Laboratory turbidity meter
Turbimax CUE23

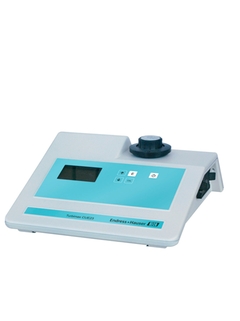

Laboratory turbidity meter Turbimax CUE23 ©Endress+Hauser

Lab system for quality control and research in drinking and process water applications

Turbimax CUE23 is a reliable turbidity meter for grab sample measurement compliant to EN ISO 7027. It offers verification of your online turbidity measurements and lab-based control of your processes. Operation is simple: fill the cuvette, insert it into the measuring chamber and get an instant reading. In addition, Turbimax CUE23 provides guided calibration according to predefined standards, helping to streamline maintenance.

  • Pricing after login and configuration

Quick selection

Choose from our suggested options
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

CUE23
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Optional add-ons
Please use the individual configurator to continue.
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • Easy verification of your entire process

    • Easy verification of your online measurement loops

    • Guided calibration according to predefined standards

  • Field of application

    Turbimax CUE23 is a laboratory turbidity meter for:

    • Drinking and process water:
      - Verification of processes
      - Verification of online measurement loops
      - Water quality monitoring in water works and distribution networks

    • Utilities of all industries:
      -...

Features and specifications

Back

Details

  • Measuring principle

    Single beam scattered light

  • Application

    Turbidimeter for laboratory measurement

  • Characteristic

    " Versions with infrared light source
    " Auto ranging 0 ... 1000 NTU
    " Automatic alert when calibration is needed
    " Simple calibration procedures
    " RS-232 output for printing or recording of measured values
    " Reusable calibration standards

  • Measurement range

    0 - 1000 NTU

  • Measuring principle

    Turbidity measurement using standardised 90° scattered light method acc. to ISO 7027/EN27027(Infrared Light)

  • Design

    The transmitted infrared light beam is scattered by the solid matter particles in the medium. The scattered light beams are detected by scattered light receivers which are arranged at an angle of 90° to the light source.

  • Material

    Housing: ABS
    Sample cuvette: Borosilicate glass

  • Dimension

    95 x 254 x 273 mm / 3.75 x 10 x 10.75 inches

  • Process temperature

    0 ... 50 °C / 32 ... 122 °F

  • Process pressure

    Ambient pressure

  • Output

    Uni-directional RS-232 output for recorder

Documents / Manuals / Software

  • Technical Information Turbimax CUE23 / CUE24

    Turbidimeter for laboratory measurement

    Technical Information (TI)
  • Technical Information Turbimax CUE23 / CUE24

    Turbidimeter for laboratory measurement

    Operating Instruction (BA)
  • Innovationsbroschüre Turbimax CUE21 - CUE26

    Kompaktlinie zur Trübungsmessung für Prozess-, Labor- und Feldeinsatz

    Innovations (IN)
    05/05
    German
  • Innovation brochure Turbimax CUE21 - CUE26

    Compact line for turbidity measurement for process, laboratory and field
    application

    Innovations (IN)
    05/05
    English
  • 51518580 (Hungary)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Hungarian
  • 51518580 (Latvia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Czech Republic)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Czech
  • 51518580 (Poland)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Polish
  • 51518580 (South Africa)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    English
  • 51518580 (Estonia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Ireland)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    English
  • 51518580 (China)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Chinese
  • 51518580 (Slovenia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Belgium (Dutch))

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Dutch
  • 51518580 (Canada)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    English
  • 51518580 (United Arab Emirates)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Belgium)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    fr
  • 51518580 (Australia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    English
  • 51518580 (Sweden)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Swedish
  • 51518580 (Spain)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Spanish
  • 51518580 (France)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    fr
  • 51518580 (Portugal)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Portuguese
  • 51518580 (Finland)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Finnish
  • 51518580 (Croatia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Romania)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Romanian
  • 51518580 (Italy)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Italian
  • 51518580 (Japan)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Japanese
  • 51518580 (Austria)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    German
  • 51518580 (Ukraine)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Russia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Russian
  • 51518580 (Netherlands)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Dutch
  • 51518580 (India)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    English
  • 51518580 (United Arab Emirates)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    English
  • 51518580 (Canada (French))

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    fr
  • 51518580 (United Kingdom)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    English
  • 51518580 (USA)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    English
  • 51518580 (Bulgaria)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Bulgarian
  • 51518580 (Switzerland (French))

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    fr
  • 51518580 (Greece)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Greek
  • 51518580 (Norway)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Norwegian
  • 51518580 (South Korea)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Lithuania)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Germany)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    German
  • 51518580 (Switzerland (Italian))

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Italian
  • 51518580 (Denmark)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Danish
  • 51518580 (Slovakia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Switzerland)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    German
  • 51518580 (Mexico)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Spanish
  • 51518580 (Turkey)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Turkish
  • 51518580 (Malta)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    English
  • 51518580 (Saudi Arabien)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (European Union)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    English

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 51518580

      Calibration kit CUE21/CUE23/CUE24

      Ready-for-use solutions: 0,02 NTU, 10 NTU and 1000 NTU Accessory turbidity measurement

    • Order code 51518581

      Set sample cuvettes CUE23/CUE24

      incl. caps, 3 pcs. Accessory turbidity measurement

    • Order code 71030108

      Lamp module CUE23

      Light source: Infrared LED (850 nm) Spare part: turbidity measurement
