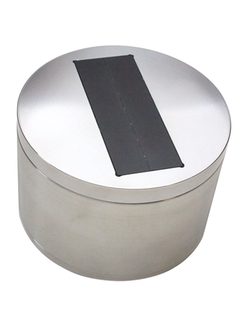

Solitrend MMP40 – Moisture measurement in conductive media

Guided radar solution for continuous inline moisture measurement ©Endress+Hauser

For continuous and batch processes in conductive bulk solids and slurries

Our guided radar moisture sensor offers a unique wear performance and durable technology with a minimized need for recalibration and process costs through providing information on moisture content at any time. Increase your product quality and reduce energy efforts due to reliable moisture measurement.

Extended selection
  • F
  • L
  • E
  • X

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
Loading alternative products

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

MMP40
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • Easy commissioning in challenging processes

    • Deep material permeation (35 mm)

    • Wide moisture range from 0-100 % possible

    • Variant mounting accessories

    • Integrated transmitter for simple plant integration

  • Field of application

    • For moisture measurement in bulk solids with density from 1...3 g / cm³ like fresh concrete, sewage sludge, slurries and other conductive materials

Features and specifications

Back

Details

  • Measuring principle

    Guided radar

  • Application

    Moisture measurement in heterogeneous bulk solids with the density from 1...3 g/ cm³ like fresh concrete, sewage sludge, slurries and other conductive materials

  • Measuring method

    Contact inline measurement

  • Measurement range

    Recommended moisture range %/ vol.: 0...100 %

  • Material permeation depth

    Up to 35 mm

    (0.11 ft)

  • Consistency of the sample

    Conductivity range:

    0…max. 20 mS/ cm

  • Temperature sensor

    Yes

  • Process temperature

    0…+70°C

    (+32°F...+158°F)

  • Accuracy

    Up to +/-0.1 % abs.

  • Output / communication

    0...20 mA

    4...20 mA

  • Options

    Remote display

    Sensor cables

    Baffle plate

    Universal holder

    Sliding carriage
