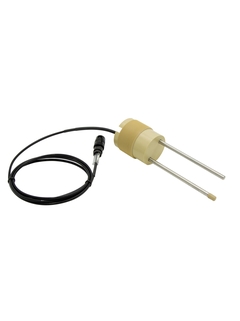

Solitrend MMP44 – Reliable inline moisture measurement

Guided radar solution for continuous inline moisture measurement ©Endress+Hauser

For grain and seed handling and mainly in continuous drying processes and malting

Avoid under- and over- drying of grains and seeds through our guided radar moisture sensor which provides information on the moisture content at any time. Increase your product quality and reduce energy efforts due to reliable moisture measurement

Extended selection
  • F
  • L
  • E
  • X

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
Loading alternative products

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

MMP44
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • Easy commissioning in challenging processes

    • Deep material permeation (130 mm)

    • Large measuring field volume (up to 1,5 l)

    • Optional sensors for high moisture, steamy processes or abrasive media.

      Ambient temperature up to 120 °C due to remote electronic

    • Wide moisture range from 0-100 % possible

    • Calibration...

  • Field of application

    • For moisture measurement in grain dryers, grain handling, seeds, malthouse

Features and specifications

Back

Details

  • Measuring principle

    Guided radar

  • Application

    Moisture measurement in grain and similar heterogeneous bulk solids with the density from 0.3...1 g/ cm³

    Possible applications: Grain dryers, grain handling, seed handling or malthouse

  • Measuring method

    Contact inline measurement with two rods sensor and transmitter

  • Measurement range

    Recommended moisture range %/ vol.: 0...50 %

  • Material permeation depth

    Up to 130 mm (0.43 ft)

  • Consistency of the sample

    Conductivity range:

    0…max. 2 mS/ cm

  • Temperature sensor

    Yes

  • Process temperature

    0…+120°C

    (+32°F...+248°F)

  • Accuracy

    Up to +/-0.3 % abs.

  • Output / communication

    0...20 mA

    4...20 mA

  • Options

    Remote display

    Sensor cables
