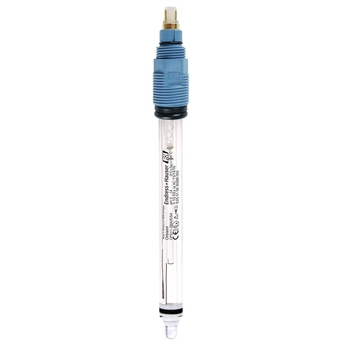

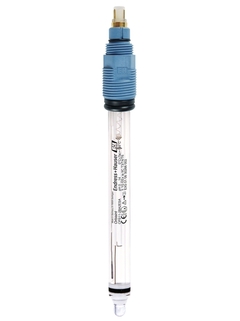

Orbisint CPS11 - Analog pH sensor with dirt-repellent PTFE diaphragm

Analog pH sensor
Orbisint CPS11

Glass electrode for standard applications

CPS11
please wait
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-

Specs at a glance

  • Measurement range

    pH 0-14

  • Process temperature

    max. 135°C (274°F)

  • Process pressure

    max. 16 bar (230 psi)

Field of application

Orbisint CPS11 is the all-rounder for pH measurement in process and environmental applications. It performs reliably and accurately even in highly alkaline media or hazardous areas. Designed for low maintenance and a long operating life, the sensor offers you best value for money.

  • Long-term monitoring and limit monitoring of processes with stable process conditions:
    - Chemical industry
    - Pulp & paper industry
    - Power plants (e.g. flue gas washers, boiler feed water)
    - Incineration plants

  • Water treatment:
    - Drinking water
    - Cooling water
    - Well water

With ATEX, FM, CSA approval for use in hazardous areas.

Benefits

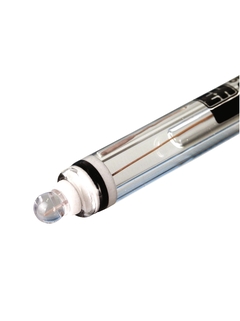

  • Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm

  • Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)

  • Optional salt ring for low conductivity applications such as boiler feed water and water for injection
