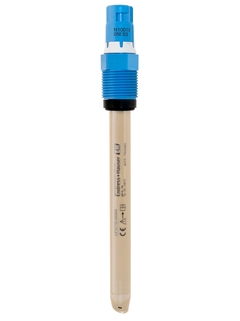

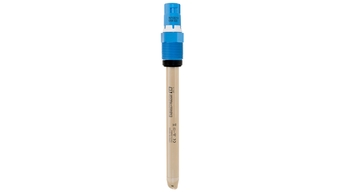

Digital non-glass pH sensor Memosens CPS77D

Memosens CPS77D – Digital ISFET sensor for food and life sciences industries ©Endress+Hauser

Memosens CPS77D with improved CIP stability

The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

  • Memosens CPS77D – Digital ISFET sensor for food and life sciences industries

Memosens ISFET electrode for food and life sciences industries

Memosens CPS77D is the digital specialist for hygienic applications. Its bacteria-proof reference with contamination-resistant gel guarantees stable measurements. The sensor is sterilizable with hot steam, autoclavable and features an unbreakable PEEK shaft assuring highest product safety. In addition, the Memosens digital technology combines maximum process and data integrity with simple handling. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.

Extended selection
  • F
  • L
  • E
  • X

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Measurement range

      pH 0 to 14

    • Process temperature

      -15 to 135°C (5 to 275°F)

    • Process pressure

      Max. 11 bar abs at 100 °C
      (Max. 160 psi at 212 °F)

Loading alternative products

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

CPS77D
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

Additional components

  • The buffers CPY20 are produced in the permanent DAkkS-accredited calibration laboratory. The buffers CPY20 are produced in the permanent DAkkS-accredited calibration laboratory.

    pH buffers
    CPY20

    Highly precise pH buffers for all industries

    Loading price
    Prices temporarily unavailable
    from CHF 803.-
  • Liquiline M CM42 offers safe measurement in all process applications – even in hazardous areas. Liquiline M CM42 offers safe measurement in all process applications – even in hazardous areas.
    • F
    • L
    • E
    • X

    1-channel transmitter
    Liquiline M CM42

    Two-wire field device for hazardous and non-hazardous area use in chemicals, life sciences and food

    Loading price
    Prices temporarily unavailable
    from CHF 803.-
  • Liquiline CM442 is a digital transmitter for pH, ORP, conductivity, oxygen, turbidity and more. Liquiline CM442 is a digital transmitter for pH, ORP, conductivity, oxygen, turbidity and more.
    • F
    • L
    • E
    • X

    1-/2-channel transmitter
    Liquiline CM442

    Expandable multiparameter field device for all industries

    Loading price
    Prices temporarily unavailable
    from CHF 803.-
  • Liquiline Compact CM82 is the smallest transmitter for Memosens sensors Liquiline Compact CM82 is the smallest transmitter for Memosens sensors
    • F
    • L
    • E
    • X

    1-channel transmitter
    Liquiline Compact CM82

    Multiparameter field device for hazardous and non-hazardous applications in all industries

    Loading price
    Prices temporarily unavailable
    from CHF 803.-
  • Liquiline CM442R is a compact DIN-Rail transmitter for pH, ORP, conductivity, oxygen, turbidity ... Liquiline CM442R is a compact DIN-Rail transmitter for pH, ORP, conductivity, oxygen, turbidity ...
    • F
    • L
    • E
    • X

    1-/2-channel transmitter
    Liquiline CM442R

    Compact multiparameter DIN-rail and cabinet device for all industries

    Loading price
    Prices temporarily unavailable
    from CHF 803.-

  • Benefits

    • Unbreakable for highest product safety

    • Certified biocompatibility

    • Suitable for hot steam sterilization and autoclaving

    • Low maintenance thanks to long calibration intervals

    • Six times higher CIP stability compared to conventional ISFET pH sensors

    • Optional...

  • Field of application

    Hygienic and sterile applications:


    • Food industry
    • Life sciences
    • Biotechnology


    With all relevant approvals for hygienic applications such as EHEDG, 3A, EU1935/2004, USP 87/88.

Features and specifications

Back

Details

  • Measuring principle

    ISFET

  • Application

    Hygienic and sterile applications, food industry, pharmaceutical industry, biotechnology

  • Characteristic

    Sterilizable and autoclavable ISFET sensor for pH measurement
    Digital with Memosens technology

  • Reference

    Double chamber reference system

  • Measurement range

    pH 0 to 14

  • Material

    Sensor shaft: PEEK
    Seals: FFKM
    Junction: ceramic

  • Dimension

    Diameter: 12 mm (0.47 inch)
    Shaft lengths: 120, 225 and 360 mm
    (4.72, 8.86 and 14.2 inch)

  • Process temperature

    -15 to 135°C (5 to 275°F)

  • Process pressure

    Max. 11 bar abs at 100 °C
    (Max. 160 psi at 212 °F)

  • Temperature sensor

    Pt1000

  • Connection

    Inductive, digital connection head with Memosens technology

  • Ingres protection

    IP 68 (10 m (33 ft) water column, 25 °C (77 °F), 45 days

  • Additional certifications

    3-A, FDA compatible
    EHEDG Typ EL Class I aseptic
    ASME BPE-2018
    Regulation (EC) No. 1935/2004
    USP <87>, USP <88> Class VI, 121 °C (250 °F)
