Specs at a glance
-
Process temperature
0 .. 85°C
-
Process pressure
0 .. 10 bars
Field of application

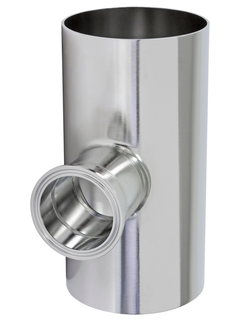

Flowfit CUA262 is a turbidity flow assembly for all drinking and process water applications. Its hygienic design allows direct welding in your skid, your pipeline or your plant – no more need for bypass installations. The ruggedized stainless steel material withstands high pressure and temperature and is fully suitable for drinking water. Thus, you preserve each drop of water in the process. Its easy to use Clamp connection and automatic venting speed up sensor installation and commissioning.

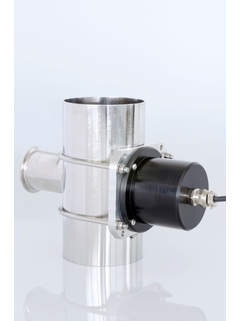

Flowfit CUA262 is a flow assembly for welding in skids, pipelines and plants. It is used with the Turbimax CUS52D sensor in:
Drinking and process water:
- All measuring points from inlet to outlet of water plants
- Abstraction and raw water control
- All quality control points in water productionWastewater treatment plants:
- Reuse of outlet waterUtilities of all industries:
- All measuring points from inlet to outlet of water production
- All measuring points in distribution networks
Benefits
Turbidity measurement without product loss: Hygienic inline measurement preserves each drop of water in the process.
-
No more need for bypass installations: Hygienic design allows direct welding in your pipeline, your skid or your plant.
-
Optimized footprint: Small dimensions save space in skids.
-
Fast sensor installation and commissioning: Easy to use Clamp connection and automatic venting speed up integration into your process.
Robust design: Suitable for process pressures up to 6 bar (87 psi) and temperatures up to 85°C (185°F).
