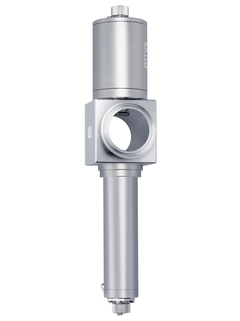

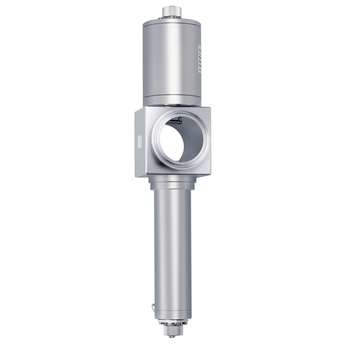

Inline turbidity sensor
OUSTF10

Turbidity and suspended solids measurement by light scattering and absorbance

The OUSTF10 scattered light turbidity sensor is used for measurement of suspended solids, emulsions and immiscible fluids in process liquids. It provides you with all desired information from product purity to filter blocking. As a result, you gain more control over the quality of your products and processes. OUSTF10 is ready for all kinds of environments, such as very high temperatures, hazardous areas (ATEX, FM) and hygienic processes (CIP/SIP).

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue.

Individual configuration

Continue your selection from all possible options

Configure

Additional components

Multichannel transmitter
Liquiline CM44P

Multiparameter device for process photometers and Memosens sensors
More information
Compare

Benefits
Accurate and highly sensitive purity monitoring for better product quality
Low-maintenance sensor with long service life and stable operation
Optional long pass NIR filter to minimize color related measurement errors
Reliable detection of heat exchanger leaks
Suitable for cleaning-in-place (CIP)...

Show more
Accurate and highly sensitive purity monitoring for better product quality
Low-maintenance sensor with long service life and stable operation
Optional long pass NIR filter to minimize color related measurement errors
Reliable detection of heat exchanger leaks
Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
Approved for hazardous area use

Show less

Field of application
The OUSTF10 sensor measures turbidity for:

Quality control / Purity monitoring

Filter monitoring

Condensate monitoring

Turbidity in breweries

Heat exchanger leakage detection

Turbidity in brine

With its international explosion-protection...

Show more
The OUSTF10 sensor measures turbidity for:

Quality control / Purity monitoring

Filter monitoring

Condensate monitoring

Turbidity in breweries

Heat exchanger leakage detection

Turbidity in brine

With its international explosion-protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.

Show less

Features and specifications

Back

Details

Measuring principle

NIR absorbance
Application

Turbidity and suspended solids measurement for filter control and quality measurement
Measurement range

0 to 200 FTU
0 to 200 ppm DE
Material

Sensor housing: 316L
Process temperature

0 to 90 °C (32 to 194 °F) continuous
Max. 130 °C (266 °F) for 2 hours
Process pressure

Max. 100 bar (1450 psi)
(depending on flow through assembly)
Ex certification

ATEX II 2G Ex db IIC T5 Gb
FM Cl.1, Div. 1, Group B, C, D
Ingres protection

IP 65 (NEMA 4)
Additional certifications

FDA

Show more
Show less
