J22 TDLAS Gas Analyzer

Proven technology for accurate and reliable measurement of H₂O in natural gas

J22

Compare

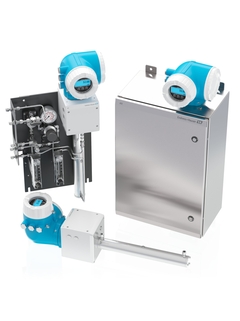

Product picture of three: J22 TDLAS panel mount, enclosure, J22 gas analyzer, top view — Configuration flexibility with a variety of features

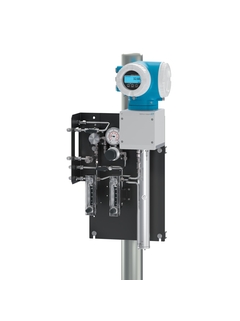

Product picture J22 TDLAS gas analyzer panel mounted to pole — J22 with sample system installed on a post

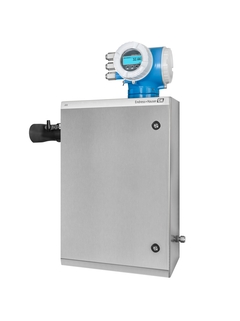

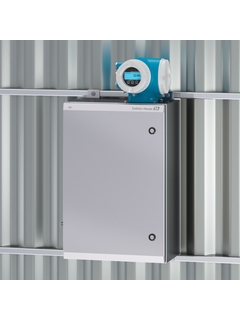

Product rendering of J22 TDLAS gas analyzer enclosure mounted to wall — J22 with enclosed sample system, wall mounted

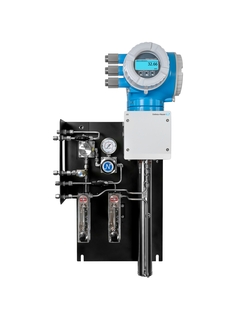

Product picture J22 TDLAS gas analyzer mounted on a panel, front view — J22 analyzer with panel mounted sample conditioning system

J22 TDLAS Gas Analyzer for H₂O process monitoring and control

Specs at a glance

Measured Variables

Concentration
Dew Point
Cell Pressure
Cell Temperature
Hazardous area approvals

ATEX / IECEx /UKEx Zone 1
PESO / KTL / CML Zone 1
INMETRO Zone 1
CSA Class I, Division 1
CSA Class I, Zone 1

See all specifications

Field of application

The J22 Gas Analyzer uses patented tunable diode laser absorption spectroscopy (TDLAS) technology to provide accurate measurement of H₂O in natural gas. Featuring the reliable diagnostic capabilities of Heartbeat Technology, the J22 analyzer determines the concentration of a gas without coming into physical contact with streams. It allows pipeline operators and suppliers to meet quality specifications, prevent pipeline corrosion, and stop hydrate formation to ensure safety and asset integrity.

For use in natural gas for quality measurements in production, storage, transportation, and distribution

Monitoring and control in the natural gas pipeline, processing plant, compressor station, gathering site, and distribution

Ideal for custody transfer measurements to ensure gas quality

Measurable ranges of up to 0-6000 ppm (0-284 lb/mmscf) H2O

Benefits

Ensures highest availability for production, transmission, storage and distribution of natural gas
User-friendly interface with intuitive menu and web server software
Integrated diagnostic and verification with Heartbeat Technology
Automatically-stored historical data and spectrum logging
NIST-traceable calibration providing superior accuracy and repeatability
Robust design for easy installation, commissioning, and repair
Field serviceable components and modules for minimal downtime
