Gauge pressure

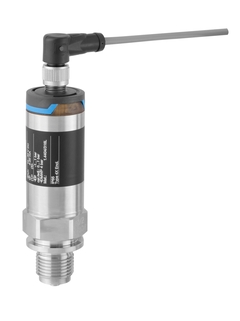

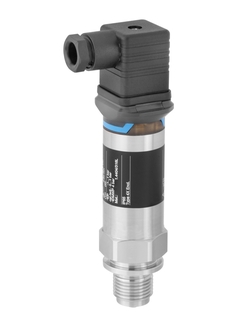

Cerabar PMP11
Cerabar PMP11: Part of a strong team for standard applications - Liquiphant, Liquipoint, Cerabar, Ceraphant
Pressure measuring principle
Cost-effective pressure transducer with metal sensor for measurement in gases or liquids
The Cerabar PMP11 is the most price-attractive compact pressure transmitter in its segment. It features a piezo-resistive sensor and is able to measure gauge pressure from 400mbar up to 40bar. The PMP11 is designed to withstand the conditions in the process industry with the use of high quality materials like 316L. It can be used for standard applications in the process industry.
- F
- L
- E
- X
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
Specs at a glance
-
Accuracy
0.5%
-
Process temperature
-25…+85°C
(-13…+185°F) -
Pressure measuring range
400 mbar...+40 bar
(6 psi...+600 psi) -
Measuring cell
400 mbar...+40 bar
(6 psi...+600 psi)
-
Loading alternative products
Additional components
-
Benefits
Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges
Reference accuracy of 0.5% together with high long- term stability and repeatability ensures a high quality of process...
-
Field of application
Pressure transducer with fully welded metal sensor to measure gauge pressure in gases or liquids.
Process connections: Threads
Process temperature: -25 to +85°C (-13 to +185°F)
Process pressure: 400mbar to +40bar (6 to 600psi)
Accuracy: ±0.5% of span
Documents / Manuals / Software
-
Cerabar PMC11, PMC21, PMP11, PMP21
Process pressure measurement
Technical Information (TI) -
Weld-in adapter, process adapter and flanges
Level and pressure measurement
Technical Information (TI) -
Cerabar PMC11, PMC21, PMP11, PMP21, PMP23
Process pressure measurement
Operating Instruction (BA) -
Cerabar PMC11, PMC21, PMP11, PMP21, PMP23
Process pressure measurement
Short Instruction (KA)04/21English -
Sealing kit
Installation Instruction
Cerabar
Installation Instructions (EA) -
Mechanical accessories for pressure measuring devices
Pressure measurement
Special Documentation (SD) -
M12 socket
Accessories for Liquipoint, Liquitrend, Liquiphant, Ceraphant, Cerabar,
Deltabar, GammapilotSpecial Documentation (SD) -
Pressure Equipment Directive (PED)
Pressure measurement
Special Documentation (SD) -
Pressure devices that fit
American version: Cerabar PMP11, PMP21 and PMP23
Competence Brochure (CP)10/16English -
Komplettpaket Druckmesstechnik
Ein Ansprechpartner - spart Zeit und reduziert Kosten
Competence Brochure (CP)05/15German -
Druckmesstechnik: Auswahlhilfe zur Druck-, Differenzdruck-, Füllstands- und Durchflussmessung
Druckmesstechnik: Auswahlhilfe zur Druck-, Differenzdruck-, Füllstands- und Durchflussmessung
Competence Brochure (CP)03/21German -
Pressure instrumentation: Selection guide for pressure, differential pressure, level and flow measurement
Pressure instrumentation: Selection guide for pressure, differential pressure, level and flow measurement
Competence Brochure (CP)03/21English -
Cerabar, PMP11
Druckmessumformer mit vollverschweißtem Metallsensor zur
Relativdruckmessung in
Gasen oder FlüssigkeitenTender Text02/21German -
Pressebild PressEHM07
Endress+Hauser SE+Co. KG, Cerabar PMP11
Picture12/16Language neutral -
Cerabar, Ceraphant
Product Code: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-, PTC31B-, PTP31B-, PTP33B-
Declaration Number: HE_00360_01.16
Manufacturer Specification: RoHSManufacturer DeclarationGerman , English -
Cerabar
Product Code: PMP11-
Declaration Number: HE_00837_01.17
Manufacturer Specification: RoHSManufacturer DeclarationChinese -
Cerabar
Product Code: PMP11-
Declaration Number: HE_00562_01.17
Manufacturer Specification: RoHSManufacturer DeclarationChinese -
Cerabar, Cerabar M, Cerabar S, Levelflex, Micropilot, Micropilot S
Product Code: FMR56-, FMR57-, FMR60-, FMR62-, FMR67-, PMC11-, PMC21-, PMC71B-, PMP11-, PMP21-, PMP23-, PMP51-, PMP51B-, PMP55-, PMP71-, PMP71B-, PMP72-, PMP75-, FMR540-, FMR54-, FMR533-, FMR532-, FMR531-, FMR530-, FMR53-, FMR52-, FMR51-, FMR50-, FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-
Declaration Number: HE_01158_01.19Manufacturer DeclarationEnglish -
Cerabar
Product Code: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-
Declaration Number: EC_00402_02.16EU DeclarationGerman , English , French -
Waterpilot, Deltapilot S, Deltapilot M, Deltabar S, Deltabar M, Deltabar, Ceraphant, Cerabar S, Cerabar M, Cerabar
Product Code: PTP33B-, PTP31B-, PTC31B-, PMP75-, PMP71B-, PMP71-, PMP55-, PMP51B-, PMP51-, PMP23-, PMP21-, PMP11-, PMD78B-, PMD75B-, PMD75-, PMD55B-, PMD55-, PMC71B-, PMC71-, PMC51B-, PMC51-, PMC21-, PMC11-, FMX21-, FMD78-, FMD77-, FMD72-, FMD71-, FMB70-, FMB53-, FMB52-, FMB51-, FMB50-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: EAEC N RU D-DE.DE02.B.11894/20MiscellaneousRussian -
SYSTEM, Levelflex, Deltabar S, Deltabar M, Deltabar, Ceraphant T, Ceraphant, Cerabar T, Cerabar S, Cerabar M, Cerabar
Product Code: PTP31B-, PMP75-, PMP71-, PMP55-, PMP51-, PMP21-, PMP11-, PMD78B-, PMD75B-, PMD75-, PMD55B-, PMD55-, NMS81-, FMP54-, FMD78-, FMD77-
Approval Agency: TÜVPressure EquipmentGerman , English -
Waterpilot, SYSTEM, Gammapilot M, Gammapilot, Deltapilot S, Deltapilot M, Deltabar S, Deltabar M, Deltabar, Ceraphant T, Ceraphant, Cerabar T, Cerabar S, Cerabar M, Cerabar
Product Code: PMC71B-, PMD55-, PMD75-, PMD75B-, PMD78B-, PMP11-, PMP21-, PMP23-, PMP51-, PMP51B-, PMP55-, PMP71-, PMP71B-, PMP75-, PTC31B-, PTP31B-, PTP33B-, FMB50-, FMB53-, FMB70-, FMD71-, FMD72-, FMD77-, FMD78-, FMG60-, FMX21-, FTG20-, NMS80-, NMS83-, PMC11-, PMC21-, PMC51-, PMC51B-, PMC71-
Approval Agency: TÜVPressure EquipmentGerman , English -
Cerabar, Ceraphant
Product Code: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-, PTC31B-, PTP31B-, PTP33B-
Region/Country: Canada (CRN)
Approval Agency: CRNPressure EquipmentEnglish -
Cerabar, Cerabar M, Cerabar S, Cerabar T, Ceraphant T
Product Code: PTP35-, PTP31-, PTC31-, PMP75-, PMP71-, PMP55-, PMP51-, PMP23-, PMP21-, PMP135-, PMP131-, PMP11-, PMC71-, PMC51-, PMC21-, PMC131-, PMC11-
Region/Country: Uzbekistan
Approval Agency: UZS
Approval Number: 02.6582MetrologyRussian -
Cerabar, Cerabar M, Cerabar S
Product Code: PMC11-, PMC21-, PMC51-, PMC71-, PMP11-, PMP21-, PMP23-, PMP51-, PMP55-, PMP71-, PMP75-
Region/Country: Belarus
Approval Agency: BELGIM
Approval Number: 13477MetrologyRussian -
Cerabar
Product Code: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: DE.C.30.004.A NO 67871/1MetrologyRussian -
Cerabar, Ceraphant, Ceraphant T
Product Code: PMC11-, PMP11-, PTC31-, PTC31B-, PTP31-, PTP31B-
Region/Country: Malaysia
Approval Agency: SPAN
Approval Number: SPAN/BPI/2699-2019Metrology -
Product family: Cerabar
Product Code: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-
Region/Country:
Approval Agency:
Approval Number: 3148MetrologyRussian -
Cerabar, Cerabar M
Product Code: PMC21-, PMC51-, PMP11-, PMP51-, PMP55-
Region/Country: International
Approval Agency: RM RSMarineRussian
Accessories / Spare parts
-
-
Order code 52009800
Flat gasket 18,5x23,9x1,5 FKM, 5 pieces
Process gasket FKM Viton. Usage: Cerabar M/S, Cerabar PMP11/PMP21, metal cell.
-
Order code 71286350
Sealing kit PMPx1, PTP31B, FKM, 2 pcs.
Consists of: gasket 18.5x23.9x1.5 FKM. O-ring 14x1.78, FKM. Usage: PMP11, PMP21, PMP51, PTP31B.
-
Order code 71280307
Valve Plug ISO4400 M16, 4-pole
Consists of: plug connector, screw, seal, valve plug ring, adapter ring. Usage: FTL31/FTL33, FTW33, PMC11, PMC21, PMP11, PMP21/PMP23.
-
Order code 71280349
Valve plug ISO4400 NPTF1/2, 4-pole
Consists of: plug connector, screw, seal, valve plug ring, adapter ring. Usage: FTL31/FTL33, FTW33, PMC11, PMC21, PMP11, PMP21/PMP23.
-
Order code 52010285
M12-female plug connec., 90deg, 5m cable
M12 plug socket, cable side. 5m cable PVC, Cu Sn/Ni lock. Usage: FMB50/FMB51/FMB52/FMB53, FTL31/FTL33, FTL51B, FTL62/FTL64, FTW23, FTW33, PMC11, PMC21, PMC51, PMP11, PMP21/PMP23, PMP51/PMP55, PTC31B, PTP31B/PTP33B, QMW43.
-
Order code 71114212
M12-female plug connec.,90deg,cable side
Self confectionery connection. Usage: M12 plug socket, cable side.
-
Order code 52006263
M12-female plug connector, cable side
M12 plug socket, cable side Self confectionery connection. Usage: FMB50/FMB51/FMB52/FMB53, FMB70, FTL31/FTL33, FTW23, FTW33,PMP11, PMP21, PMP51, PTC31B, PTP31B, QMW43.
-
-
