The HAW562 surge protective device is used to protect electronic components from being destroyed by overvoltage. It ensures that overvoltage surges which occur in signal cables (e.g. 4 to 20 mA), in communication lines (fieldbuses) and in power lines are safely limited or passed into the ground. The functionality of the transmitter or the electronics component to be protected is not affected.
Surge arresters are used to weaken residual currents from upstream lightning protection steps and to limit system-induced or -generated overvoltage surges.
HAW562 units are primarily used in process automation and in measuring and communication technology within the water & wastewater, chemical, oil & gas as well as power & energy industry.
Increased plant availability as surge arrester is perfectly matched to the electronic components involved in process automation and process measuring technology
Application in Ex areas - optionally available with SIL2 intrinsically safe approvals
Vibration and shock tested according to EN 60068-2
Surge arresters are applied to protect electronic components of a plant against overvoltage! Due to this investment intensive measuring instruments are protected and the plant availability is increased.
Application
Surge protection for power supply or signal / communication cables
Betriebsanleitung HAW562-AAB/-AAC für Versorgungsleitungen
Operating instructions HAW562-AAB/-AAC for supply lines
English version - 04/2014
New version available in English

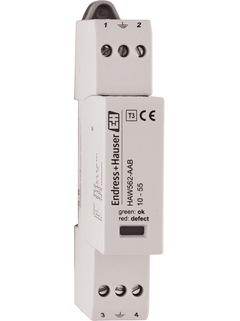

HAW562-AAB/-AAC Überspannungsschutz zur Montage auf Hutschiene
zum Schutz von Versorgungsleitungen 10-55 V / 90-230 V
HAW562-AAB/-AAC surge arrester for top hat rail mounting for the
protection of supply lines 10-55 V / 90-230 V
Betriebsanleitung HAW562-AAB/-AAC für Versorgungsleitungen
Operating instructions HAW562-AAB/-AAC for supply lines
Operating Instruction (BA)
English version - 04/2014
New version available in English
HAW562-AAB/-AAC Überspannungsschutz zur Montage auf Hutschiene zum Schutz von Versorgungsleitungen 10-55 V / 90-230 V HAW562-AAB/-AAC surge arrester for top hat rail mounting for the protection of supply lines 10-55 V / 90-230 V
Betriebsanleitung HAW562-AAA/-AAD/-8DA für Signalleitungen
Operating instructions HAW562-AAA/-AAD/-8DA for signal lines
Operating Instruction (BA)
English version - 12/2010
New version available in English

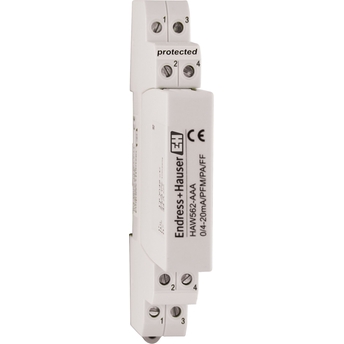

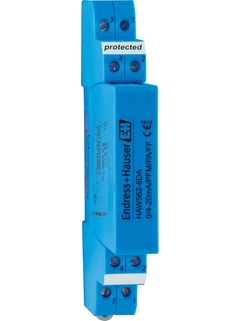

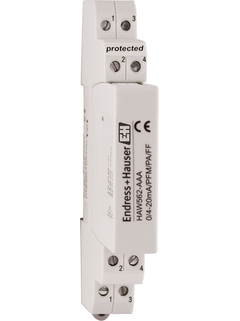

HAW562-AAA/-AAD/-8DA Überspannungsschutz zur Montage auf Hutschiene zum Schutz von Signalleitungen 0/4-20mA, PFM, PA, FF, RS485, Modbus, DP HAW562-AAA/-AAD/-8DA Surge arrester for top hat rail mounting for the protection of signal lines 0/4-20mA, PFM, PA, FF,RS485, Modbus, DP
Betriebsanleitung HAW562-AAE für Prosonic FM9x
Operating instructions HAW562-AAE for Prosonic FMU9x
Operating Instruction (BA)
English version - 12/2010
New version available in English
HAW562-AAB/-AAC Überspannungsschutz zur Montage auf Hutschiene zum Schutz von Prosonic FMU9x HAW562-AAB/-AAC surge arrester for top hat rail mounting for the protection of FMU9x
