Average temperature measurement

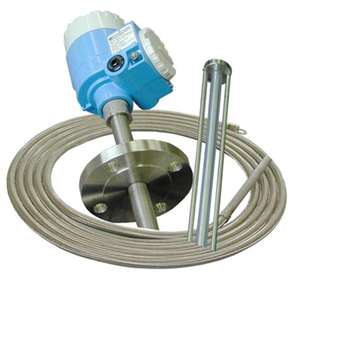

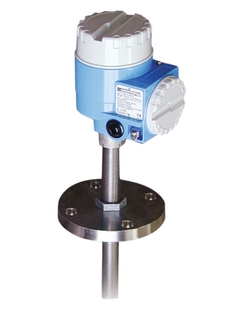

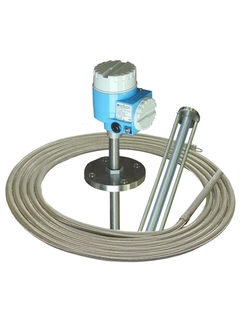

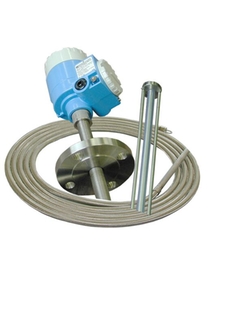

Prothermo NMT539

High precision average temperature measurement

NMT539

Compare

Specs at a glance

Accuracy

+/- 0.1 °C
Max. process pressure (static)

0 bar...0.5 bar
(0 psi...7.25 psi)
Operating temperature range

Standard:
-40 °C...100 °C
Optional:
-55 °C...235 °C
Water Bottom spec.:
-40 °C...100 °C
Cyrogenic:
-170 °C...60 °C
Max. immersion length on request

40 m (131.2 ft)

See all specifications

Field of application

Prothermo NMT539 is an intelligent HART signal converter, with a combined average temperature sensor and water bottom interface probe. For average temperature measurement consists of precision multispot Pt100 elements. The NMT539 is a highly capable solution for constant average temperature data and water interface data via HART communication. For custody transfer and accurate inventory measurement, it is best suited connected to Proservo NMS5 or Tank Side Monitor NRF590 with Micropilot.

For precision average temperature and water bottom measurement.

Process connection: Flanges
Temperature: -40 to +100°C (-40 to +212°F)
Measuring distance: 40m (131.2ft)
Accuracy: ± 0.1°C
International explosion protection certificates

Benefits

Intrinsically safe device allowing for the safest electrical configuration possible
Available in four different versions based on customer requirements:
Converter only
Converter and temperature probe
Converter and water bottom probe
Converter, temperature and water bottom probe
Converter is compatible with various element types in third party manufacturer temperature probes
Compatible with Endress+Hauser's user friendly FieldCare
Variety of process connections and cable entries available to meet worldwide classifications
High reliability and easy installation
Maintenance free
