Average temperature measurement Prothermo NMT81

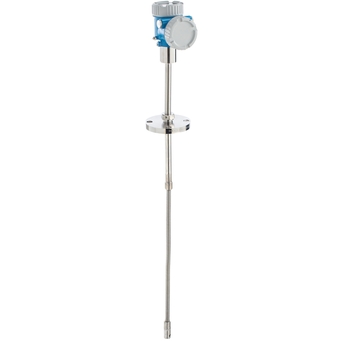

Prothermo NMT81 - Average temperature measurement ©Endress+Hauser

Precise average temperature measurement

Prothermo NMT81 measures the average temperature of a medium and can optionally identify the water level. With an optional 2m long capacitance sensor, the water level is measured continuously delivering current water level information at any time. With its highly precise average temperature measurement, the NMT81 is perfectly suitable for custody transfer and inventory monitoring together with tank gauging such as Proservo NMS80, NMS81, NMS83, Micropilot NMR81, NMR84 and TankSideMonitor NRF81.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

please wait Loading alternative products

Quick selection

Choose from our suggested options
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Precise asset management thanks to up to 24 RTDs

    • Corrosion-resistant process parts

    • Minimize tank construction cost through 1-1/4” sized nozzle

    • Easy installation

    • Waterproof and dust proof housing

    • Reduced downtime thanks to redundant...

  • Field of application

    • For precision average temperature and water bottom measurement

    • Process connection: Flanges from 1-1/4“

    • Temperature: -40 to +60°C (-40 to +140°F)

    • Measuring distance: 100m (328.08ft)

    • Total accuracy: ± 0.036°C(±0.06°F) with 5pt. temperature calibration

    • ...

Features and specifications

Back

Details

  • Measuring principle

    Level radar

  • Characteristic / Application

    Lens antenna, 80GHz: High precision measurement for for storage tanks up to 30 m (98ft)

  • Specialities

    Custody transfer level measurement

    Measurement close to tank wall

  • Supply / Communication

    85-264VAC

  • Accuracy

    up to 0.5 mm

  • Ambient temperature

    Standard:

    -40°C…60°C

    (-40°F...140°F)

    For calibration to regulatory
    standards:

    -25°C…55°C

    (-13°F...131°F)

  • Process temperature

    -40°C...200°C

    (-40°F...392°F)

  • Process pressure absolute / max. overpressure limit

    Vacuum.....16 bar abs

  • Main wetted parts

    316L, PTFE

  • Process connection

    Flange:

    DN50/2"…DN300/12"

    Flange w/ Alignment tool:

    DN100/4"…DN300/12"


    UNI-Flange:

    DN150/6"…DN300/12"

    UNI-Flange w/ Alignment tool:

    DN150/6"…DN300/12"

  • Max. measurement distance

    70 m (230 ft)

    For calibration to regulatory standards:

    30 m (98 ft)

  • Communication

    Outputs:

    Fieldbus: Modbus RS485, V1, HART

    Analog 4-20mA output (Exi/ Exd)

    Relay output (Exd)


    Inputs:

    Analog 4-20mA input (Exi/ Exd)

    2-, 3-, 4-wire RTD input

    Discrete input (Exd, passive/active)

  • Certificates / Approvals

    ATEX, FM, IEC Ex, EAC, JPN Ex

  • Safety approvals

    Overfill protection WHG

    SIL

  • Design approvals

    EN 10204-3.1

    NACE MR0175, MR0103

    AD2000

  • Metrological approvals and certificates

    OIML, NMi, PTB

  • Options

    Redundant fieldbus

    Alu-coated or 316L housing

    Weather protection cover

    Adjustable mounting seals

  • Application limits

    Maximum measuring range is

    dependent on the tank form and/
    or application

    Strong condensate or build-up
    formation

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • 21
    • Nr 21 Order code 71312582

      O-ring, housing, 177.39x3.53, TG

      Material: FVMQ, PTFE coated. Usage: housing F35/36/37/38, NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 19
    • Nr 19 Order code 71312589

      Housing filter, PTFE, NMR8x, 2 pcs.,TG

      Consists of: 1x pressure compensation plug M18, 316L. 1x filter plug metal M12, 316L. 1x pressure compensation filter. Usage: housing F36/38, NMR81/NMR84.

  • 14
    • Nr 14 Order code 71312592

      Blind plug, M20, 316L, O-ring EPDM, TG

      Consists of: blind plug, O-ring 18.0x2.0. Usage: housing F35/36/37/38, NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 15
    • Nr 15 Order code 71312594

      O-ring, blind plug, M20, EPDM, 5pcs., TG

      Usage: housing F35/36/37/38, NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 20
    • Nr 20 Order code 71312596

      Front cover Alu, sight glas, gasket

      Material: aluminum. Consists of: cover, O-ring FVMQ, PTFE coated. Usage: housing F35/36, NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

    • Nr 20 Order code 71312607

      Front cover 316L, sight glas, gasket

      Material: 316L. Consists of: O-ring EPDM, clotted. Usage: housing F37/38. NMR81/NMR84, NRF81, NMS81/NMS83.

  • 17
    • Nr 17 Order code 71312627

      Cover clamp, 2 pcs., TG

      Usage: housing F35/36/37/38. NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 37
    • Nr 37 Order code 71324756

      Terminal set, I/O module, Push-in, TG

      Consists of: complete terminal set. Usage: NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

    • Nr 37 Order code 71324757

      Terminal set, I/O module, screw type, TG

      Consists of: complete terminal set. Usage: NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 40
    • Nr 40 Order code 71312638

      Display set, RS485, holder, TG

      Consists of: operation-module, A300, optical buttons, display holder, fixing ring, cover. Usage: NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 41
    • Nr 41 Order code 71312640

      Display holder, fixing ring, TG

      Consists of: fixing ring, holder. Usage: NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 31
    • Nr 31 Order code XPN0036-

      Electronics, mainboard

      Usage: NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • 33
    • Nr 33 Order code XPN0031-

      I/O Module NMR81/84, NRF81, NMS80/81/83

      Usage: NRF81, NMR81/NMR84, NMS80/NMS81/NMS83.

  • .
    • Nr . Order code 71067434

      Modification name plate, non Ex

      Blank. To fill in the new order code when a non Ex instrument has been modified. Usage: FMB50/FMB51/FMB52, FMR230/FMR231, FMR240/FMR244/FMR245, FMR250,FMR530/FMR532,FTL50/FTL50H/FTL51/ FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/ FTL85, NMR81, PMC51, PMC71, PMP51/PMP55.

  • 0
    • Nr 0 Order code 71285499

      Seal, adjustable, DN50, FKM

      DN50 PN10-16. Material: FKM. Usage: NMR81.

    • Nr 0 Order code 71285501

      Seal, adjustable, DN80, FKM

      DN80 PN10-40. Material: FKM. Usage: NMR81.

    • Nr 0 Order code 71285503

      Seal, adjustable, ASME 3"/JIS 80A, FKM

      ASME 3" 150lbs / JIS 80A 10K. Material: FKM. Usage: NMR81.

    • Nr 0 Order code 71292751

      Weather protection cover NMR8x, NRF8x

      Material: 316L. Usage: NMR81/NMR84, NRF80/NRF81.
