Specs at a glance
-
Accuracy
+/- 0.1 °C
-
Max. process pressure (static)
0 bar...0.5 bar
(0 psi...7.25 psi) -
Operating temperature range
Standard:
-40 °C...100 °C
Optional:
-55 °C...235 °C
Water Bottom spec.:
-40 °C...100 °C
Cyrogenic:
-170 °C...60 °C -
Max. immersion length on request
40 m (131.2 ft)
Field of application

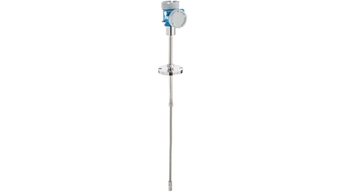

Prothermo NMT539 is an intelligent HART signal converter, with a combined average temperature sensor and water bottom interface probe. For average temperature measurement consists of precision multispot Pt100 elements. The NMT539 is a highly capable solution for constant average temperature data and water interface data via HART communication. For custody transfer and accurate inventory measurement, it is best suited connected to Proservo NMS5 or Tank Side Monitor NRF590 with Micropilot.
For precision average temperature and water bottom measurement.
Process connection: Flanges
Temperature: -40 to +100°C (-40 to +212°F)
Measuring distance: 40m (131.2ft)
Accuracy: ± 0.1°C
International explosion protection certificates
Benefits
Intrinsically safe device allowing for the safest electrical configuration possible
Available in four different versions based on customer requirements:
Converter only
Converter and temperature probe
Converter and water bottom probe
Converter, temperature and water bottom probeConverter is compatible with various element types in third party manufacturer temperature probes
Compatible with Endress+Hauser's user friendly FieldCare
Variety of process connections and cable entries available to meet worldwide classifications
High reliability and easy installation
Maintenance free
Xpert selection
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
81 documents
-
-
Technical Information (TI)
Tankvision NXA820, NXA821, NXA822
Inventory Management System with completely integrated software for operation via standard web browser
EN 03/04/2008Language:
English
Version:
03/04/2008
File size:
2.7 MB
File name:
TI419FEN_05.08.pdf
-
-
-
Technical Information (TI)
Prothermo NMT539 - Technical Information
Available in four different versions based on customer requirements: Converter Only Converter & Temp. probe Converter & Water bottom probe Converter, temp. & water bottom probe Converter is compatible with various element types in third party manufacturer temp. probe.
EN 18/05/2011Language:
English
Version:
18/05/2011
File size:
2.4 MB
File name:
TI00042G08EN14.11.pdf
-
-
-
Technical Information (TI)
Prothermo NMT539 Technical Information
Combined HART converter, average temperature sensor and water bottom interface
EN 01/08/2005Language:
English
Version:
01/08/2005
File size:
945.4 KB
File name:
TI042NEN_NMT539.pdf
-
-
-
Technical Information (TI)
Prothermo NMT539 Technical Information
Tank gauging
EN 06/06/201926/04/201917/04/201810/08/201723/12/2015Language:
English
Version:
06/06/2019
File size:
2 MB
File name:
TI01005GEN_0919.pdf
-
-
-
Operating Instruction (BA)
Prothermo NMT539 Operating Instructions
Tank gauging
EN 26/04/201917/04/201810/08/201723/12/201504/03/2015Language:
English
Version:
26/04/2019
File size:
1013.4 KB
File name:
BA01026GEN_2219.pdf
-
-
-
Operating Instruction (BA)
Prothermo NMT 539 Operating Instructions and Description of Instrument Function
Average temperature and water bottom sensor
EN 01/10/2005Language:
English
Version:
01/10/2005
File size:
726.1 KB
File name:
BA026NEN.pdf
-
-
-
Operating Instruction (BA)
Prothermo NMT539-Operating Instructions and Description of Instrument FunctiInstallation Instruction
The Prothermo NMT539 is an intelligent HART signal converter, with a combined average temperature sensor and water bottom interface probe. For average temperature measurement, it consists of precision multi-spot Pt100 elements.
EN 01/04/2008Language:
English
Version:
01/04/2008
File size:
1.2 MB
File name:
BA1026N08en04.08.pdf
-
-
-
Operating Instruction (BA)
Prothermo NMT539 Operating Instructions
Tank gauging
EN 26/04/201917/04/201810/08/201723/12/201504/03/2015Language:
English
Version:
26/04/2019
File size:
2.3 MB
File name:
BA01025GEN_2319.pdf
-
-
-
Operating Instruction (BA)
Prothermo NMT 539 Installation Instructions
Average temperature and water bottom sensor
EN 01/10/2005Language:
English
Version:
01/10/2005
File size:
1.6 MB
File name:
BA025NEN.pdf
-
-
-
Operating Instruction (BA)
Prothermo NMT539 - Installation Instructions
The Prothermo NMT 539 is multi-spot Pt100 average thermometer combined with a HART signal converter to meet the demand of temp. measurement for both custody transfer and inventory control applications.
EN 01/03/2011Language:
English
Version:
01/03/2011
File size:
3.6 MB
File name:
BA1025N08en12.08.pdf
-
-
-
Short Instruction (KA)
Prothermo NMT539 Gas -tight feed through- Installation Instructions
The Prothermo NMT 539 is multi-spot Pt100 average thermometer combined with a HART signal converter to meet the demand of temp. measurement for both custody transfer and inventory control applications.
EN 14/03/2011Language:
English
Version:
14/03/2011
File size:
725.9 KB
File name:
KA00297G08en01.11.pdf
-
-
-
Ex Safety Instruction (XA)
Prothermo NMT539 - Safety Instruction
Safety Instructions for Electrical Apparatus Certified for Use in Explosion-hazardous Areas Designation according to IECEx 02
EN 14/11/201418/05/2011Language:
English
Version:
14/11/2014
File size:
351.4 KB
File name:
XA00583G-B08EN02.14.pdf
-
-
-
Ex Safety Instruction (XA)
Average Temperature Prothermo NMT539
NEPSI: Ex ia IIB T6…T2 Ga/Gb Ex ia IIB T6…T2 Gb
EN 15/02/202107/08/2014Language:
English
Version:
15/02/2021
File size:
532.1 KB
File name:
XA01259G-A00EN02.21.pdf
-
-
-
Ex Safety Instruction (XA)
NMT539-7... Ex461-850 Rev. 2
Control drawing of the NMR539-7... for usein U.S.A Ex461-850 Rev. 2
EN 14/12/201725/07/2017Language:
English
Version:
14/12/2017
File size:
42.8 KB
File name:
XA01648G-A08EN01.17_NMT539-7X_FMus.pdf
-
-
-
Ex Safety Instruction (XA)
NMT539-7... Ex462-711 Rev. 3
Control drawing of the NMT539-7... for usein Canada. (English) Ex462-711 Rev. 3
EN 14/12/201725/07/2017Language:
English
Version:
14/12/2017
File size:
49.5 KB
File name:
XA01674G-A08EN01.17_NMT539-7X_cFM.pdf
-
-
-
Ex Safety Instruction (XA)
Prothermo NMT539 - Safety Instruction KEMA 03 ATEX 1448 X
Safety Instructions for Electrical Apparatus Certified for Use in Explosion-hazardous Areas Designation according to Directive 94/9/EC
EN 14/11/201418/05/2011Language:
English
Version:
14/11/2014
File size:
495.4 KB
File name:
XA00585G-B08EN02.14.pdf
-
-
-
Ex Safety Instruction (XA)
Prothermo NMT539
INMETRO: Ex ia IIB T6…T2 Ga/Gb Ex ia IIB T6...T2 Gb
EN 29/07/2021Language:
English
Version:
29/07/2021
File size:
746.8 KB
File name:
XA02656GEN_0121.pdf
-
-
-
Ex Safety Instruction (XA)
NMT539_70.... Ex462-712 Rev. 3
Control drawing of the NMT539_70.... for use in Canada. Ex462-712 Rev. 3
EN 14/12/201725/07/2017Language:
English
Version:
14/12/2017
File size:
49 KB
File name:
XA01675G-A08EN01.17_NMT539-70_cFM.pdf
-
-
-
Ex Safety Instruction (XA)
NMT539-70... Ex461-851 Rev.2
Control drawing of the NMT539-70.....(converter only version) for use in U.S.A. Ex461-851 Rev.2
EN 14/12/201725/07/2017Language:
English
Version:
14/12/2017
File size:
42.2 KB
File name:
XA01672G-A08EN01.17_NMT539-70_FMus.pdf
-
-
-
Ex Safety Instruction (XA)
Average Temperature Prothermo NMT539
Tank Gauging ATEX: II 1/2G Ex ia IIB T6…T2 Ga/Gb II 2G Ex ia IIB T6...T2 Gb IECEx: Ex ia IIB T6…T2 Ga/Gb Ex ia IIB T6…T2 Gb
EN 30/11/202104/09/2018Language:
English
Version:
30/11/2021
File size:
737 KB
File name:
XA01790GEN_0221-00.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
O-ring, terminal box, small, CR
-
Sealing
Drawing numberOrder code1152017174 -
-
O-ring, electric cover, NBR
-
Sealing
Drawing numberOrder code11017803-0043 -
-
O-ring, terminal housing, NBR
-
Sealing
Drawing numberOrder code11017803-0044 -
-
Cover, connection housing
-
Cover
Drawing numberOrder code2152017175 -
-
Cover, terminal box, Alu, NMT
-
Cover
Drawing numberOrder code21017802-0008 -
-
Cover, E-housing NMT532/9, M88 long type
-
Cover
Drawing numberOrder code2170106024 -
-
NMT539Module, Exia, Temp.+WB 1m, v.186
-
Electronic
Drawing numberOrder code3170108674 -
-
Module assembly, FM, Temp., WB 2m v.185
-
Electronic
Drawing numberOrder code3170108675 -
-
Module assembly, FM, Temp., WB 1m v.185
-
Electronic
Drawing numberOrder code3170108676 -
-
NMT539/532Module,Exia, Temperature,v.184
-
Electronic
Drawing numberOrder code3170108677 -
-
NMT539Module, Exia, Temp.+WB 2m, v.186
-
Electronic
Drawing numberOrder code3170108679 -
-
NMT539Module, Exia,W&M,Temp.+WB 1m,v.186
-
Electronic
Drawing numberOrder code3171086630 -
-
NMT539Module,Exia,W&M,Temperture, v.184
-
Electronic
Drawing numberOrder code3171086631 -
-
NMT539Module, Exia,W&M,Temp.+WB 2m,v.186
-
Electronic
Drawing numberOrder code3171086632 -
-
NMT539Module,TIIS Exd[ia],Temp.,v.184
-
Electronic
Drawing numberOrder code3171114398 -
-
NMT539Module,TIIS Exd[ia],T+WB1m,v.186
-
Electronic
Drawing numberOrder code3171114400 -
-
NMT539Module,TIIS Exd[ia],T+WB2m,v.186
-
Electronic
Drawing numberOrder code3171114401 -
-
Terminal, EMC filter assembly
-
Terminal module
Drawing numberOrder code3458020200 -
-
Terminal + EMC filter ass. TIIS Exd[ia]
-
Terminal module
Drawing numberOrder code3471114402 -
-
O-ring, terminal box, small, CR
Order code017880-5026 -
Input module NMT539
Order code71130913 -
Simulator NMT539
Order code71130915
