TW13

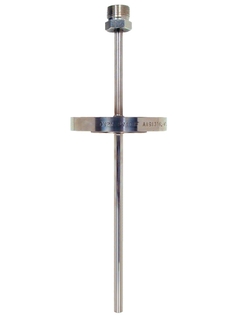

Protection tube for temperature sensors

Designed for use in processes with heavy thermal and mechanical stresses

This protection tube is an important component for temperature measurement points for almost all industrial processes, especially for fine chemicals industries. It is used to protect the measuring insert or sensor elements from aggressive process media, high pressures and flow rates from the temperature sensor itself and thereby enables the thermometer to be exchanged during operation.

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configuratorto continue
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue

Individual configuration

Continue your selection from all possible options

Configure

Benefits
Extension, immersion length and total length can be chosen according to process requirements
A wide choice of dimensions, materials and process connections is available
Special versions can be manufactured according to customer requirements

Field of application

TW13 protection tubes are important components for temperature measurement points for almost all industrial processes, especially for fine chemicals industries.

Features and specifications

Back

Details

Measuring principle

Fabricated Thermowell
Characteristic / Application

metric style

DIN 43772 Form 2F/3F

langed process connection

with neck
Head connection

external thread:

M24 x 1.5

'1/2" NPT
Maximum standard immersion length

4.000 mm (157,48")
Max. immersion length on request

10.000 mm (393,7")
Process connection

flange:

DN15 PN40 B1

DN25 PN40 B1

DN40 PN40 B1

DN50 PN40 B1

ASME 1" 150 RF

ASME 1" 300 RF

ASME 1 1/2" 150 RF

ASME 2" 150 RF

ASME 2" 300 RF
Thermowell root diameter

9 mm (0,35")

11 mm (0,43")

12 mm (0,47")

15 mm (0,59")
Medium contact material

1.4404 (316L)

1.4571 (316Ti)

2.4816 (Alloy 600)

2.4819 (Alloy C276)

PTFE

PVDF

Tantal
Wetted part finishing (Ra)

< 1.6 µm (63.00 µin)
Tip shape

straight

reduced

tapered
Temperature range

-200...1.100 °C (-328...2.012 °F)
Max. process pressure (static)

50 bar (725 psi)
Max. process pressure at 400 °C

depends on process connection
