LNG baseload custody transfer facility

LNG composition measurement for baseload custody transfer

High accuracy with lower maintenance for reliable baseload custody transactions

Reliable analysis of LNG composition is challenging during baseload custody transfer. Traditional gas chromatograph (GC)/vaporizer systems can struggle to generate accurate measurements in cryogenic conditions. Because these systems transport vaporized gas to the analyzer, need costly vaporizer maintenance, and require sample conditioning, GCs/vaporizers have higher OPEX. Endress+Hauser’s Raman analyzer system solves these issues.

  • Largely maintenance-free

    with equivalent accuracy as top-performing GC/vaporizers

    Our Raman analyzer systems provide accurate composition measurement of LNG in the liquid phase without the maintenance burden of traditional GC/vaporizer systems. Enjoy a compact analyzer footprint with easy installation and no analyzer consumables or sample conditioning. By avoiding the need to maintain a vaporizer with vacuum-jacketed tubing, Raman can deliver equally accurate results while reducing your overall OPEX.

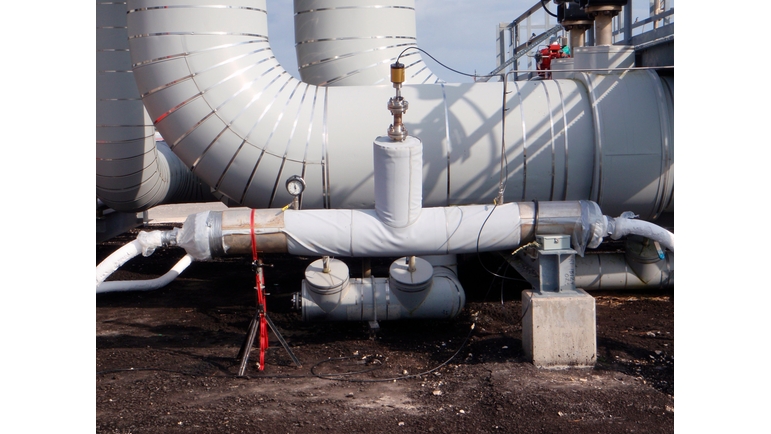

Raman Rxn-41 probe installed at LNG baseload custody transfer facility ©Endress+Hauser
Raman Rxn-41 probe installed ©Endress+Hauser
Raman Rxn4 analyzer for LNG ©Endress+Hauser
Stainless steel Rxn-41 cryogenic probe ©Endress+Hauser

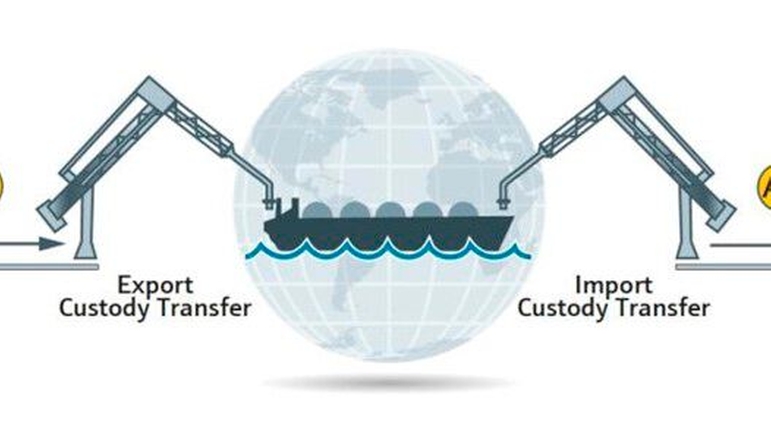

LNG baseload custody transfer ©Endress+Hauser
  • Raman Rxn-41 probe installed at LNG baseload custody transfer facility
  • Raman Rxn-41 probe installed
  • Raman Rxn4 analyzer for LNG
  • Stainless steel Rxn-41 cryogenic probe
  • LNG baseload custody transfer

How we can help

Accurately measure your LNG composition and energy content at key baseload custody transfer measurement points without costly vaporizer installation and maintenance.

  • Utilize a safe, proven LNG measurement technique - verified by the GERG

  • Reduce your carbon footprint - eliminate emissions from sample venting or flaring due to vaporization

  • Measure the full transfer of LNG – immune to LNG flow, pressure, or temperature variations

  • Reduce OPEX - Simplify maintenance with easy annual verification - internal automated calibration; no moving parts or insulated transfer lines to maintain

  • Eliminate consumables such as calibration and carrier gases

Success stories

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • What we offer

    Endress+Hauser Raman analyzer systems deliver the rapid, precise, and highly accurate composition measurements needed for high value baseload LNG custody transactions. Our decades of experience in process automation enables us to offer customers turnkey...

  • Hardware & Software

    • Raman Rxn4 analyzer – with Raman RunTime embedded controller - Modbus, TCP/IP or RS485 - compatible with 19” rack mount hardware

    • Raman Rxn-41 probe

    • Up to 500 m fiber optic cable

    • Kit for surrogate validation

  • Services

    • Application consultancy & onsite inspection

    • Project management & engineering

    • FAT & SAT

    • Project commissioning

    • System performance verification services

    • Customer training

Offering highlights

  • Product Picture Raman Rxn4 analyzer front facing left corner view Product Picture Raman Rxn4 analyzer front facing left corner view
    • F
    • L
    • E
    • X

    Raman Rxn4 analyzer

    Rugged, reliable Raman analyzer ensuring 24/7 process and quality monitoring

    Loading price
    Prices temporarily unavailable
    Price on request
    activating price
    price: provide information
    from CHF ??.-
  • Product picture Raman Rxn-41 probe, top view aiming up left Product picture Raman Rxn-41 probe, top view aiming up left
    • F
    • L
    • E
    • X

    Raman Rxn-41 probe

    Offering simplified, reduced cost installation in the process environment

    Loading price
    Prices temporarily unavailable
    Price on request
    activating price
    price: provide information
    from CHF ??.-
  • Product photo Raman electro-optical (EO) fiber cable with EO connector and Rxn-10 probe Product photo Raman electro-optical (EO) fiber cable with EO connector and Rxn-10 probe
    • F
    • L
    • E
    • X

    Raman electro-optical (EO) fiber optic cables

    Innovative Raman fiber optics designed for maximum laser safety and easy installation

    Loading price
    Prices temporarily unavailable
    Price on request
    activating price
    price: provide information
    from CHF ??.-

Downloads

    • White paper (WP)
    Raman technology for LNG

    Raman technology for LNG

    • White paper (WP)

    Read about the benefits of our Raman spectroscopic analyzer systems for the LNG industry.

    File size:

    File name:

    • White paper (WP)
    Raman Rxn4 analyzer

    Raman Rxn4 analyzer - LNG custody transfer analyzer

    • White paper (WP)

    Discover the key facts about the Raman Rxn4 analyzer, a Raman spectroscopic analyzer for LNG custody transfer in the Oil & Gas industry.

    File size:

    File name:

    • White paper (WP)
    Raman Rxn-41

    Raman Rxn-41 - Cryogenic liquid probe

    • White paper (WP)

    Learn about the key facts about the Raman Rxn-41 probe, a Raman spectroscopy probe for cryogenic liquid measurement in the LNG industry.

    File size:

    File name:

    • White paper (WP)
    Raman method for custody transfer measurements of LNG

    Raman method for custody transfer measurements of LNG

    • White paper (WP)

    Check out the findings from the GERG report on the use of a Raman Rxn4 analyzer and Raman Rxn-41 cryogenic probe for reliable chemical composition in LNG custody transfer applications.

    File size:

    File name:

Get in touch with our solutions consultants

Get in touch with our solutions consultants

For specific questions, please fill in the form and our solutions consultants will contact you. If you want, you can share more detailed information in the message field.

Please let us know as detailed as possible how we can help you. That way we can get back to you with the best possible answer.

Explore other applications for this industry

  • Oil & Gas plant with metering skids from Endress+Hauser for loading and offloading liquids

    Metering skid for loading and unloading in Oil & Gas

    Metering skid for loading and unloading in Oil & Gas

    Discover Endress+Hauser Oil and Gas industry solutions for accurate and safe truck and railcar custody transfer applications for liquid petroleum products.

  • Tank gauging in the Oil and Gas industry

    Tank gauging system for the Oil & Gas industry

    Tank gauging system for the Oil & Gas industry

    Enhance your oil and gas bulk liquid custody transfer and storage with Endress+Hauser tank gauging solutions.

  • Make your transaction more efficient and more reliable with custody transfer metering systems.

    Oil tanker loading and unloading systems

    Oil tanker loading and unloading systems

    Learn how Endress+Hauser solutions boost jetty throughput and enhance the offloading of liquids from ships in the Oil and Gas industry.

  • Mass flow meter bunkering system installed on a vessel

    Mass flow meter bunkering systems for marine fuels

    Mass flow meter bunkering systems for marine fuels

    Vast quantities of bunker oil are pumped into the fuel tanks of vessels daily. Even the slightest measurement inaccuracy causes shortages in the "cash register". Our solution provides transparency.

  • Workers at the wastewater treatment plant of a refinery

    Accurate wastewater effluent monitoring in Oil & Gas

    Accurate wastewater effluent monitoring in Oil & Gas

    Discover our monitoring solutions for oily wastewater and oily surface water that help you safely meet your refinery's regulatory discharge limits and reduce your operating costs.

  • Steam generation in Oil and Gas

    Steam and Water Analysis System (SWAS) for Oil & Gas

    Steam and Water Analysis System (SWAS) for Oil & Gas

    How do you maintain the water quality of your steam generation? Discover our smart, reliable steam and water analysis systems (SWAS)!

  • Water monitoring systems for oil and gas industry

    Water monitoring for utilities in oil and gas production

    Water monitoring for utilities in oil and gas production

    Enable efficient, simple and compliant water quality monitoring for oil and gas processes with Endress+Hauser turnkey solutions.

  • LNG tank gauging in the Oil and Gas industry

    World-class LNG tank gauging for the Oil and Gas industry

    World-class LNG tank gauging for the Oil and Gas industry

    Tank gauging and operational safety for LNG inventory management

  • Operational Terminal Management for Liquids in the Oil and Gas Industry

    Data collection and transmission at Oil and Gas terminals

    Data collection and transmission at Oil and Gas terminals

    Improving everything from inventory transparency to logistics at your Oil and Gas terminal

  • Master meter prover by Endress+Hauser

    Coriolis master meter provers for the Oil industry

    Coriolis master meter provers for the Oil industry

    Learn how our turnkey master meter provers allow you to check your duty meters easily, quickly and reliably. Gain maximum accuracy while complying with regulations and minimizing operational costs.

  • H2O analyzer for glycol dehydration

    Moisture analyzer for natural gas glycol dehydration

    Moisture analyzer for natural gas glycol dehydration

    See how the fast, reliable measurements of our TDLAS H2O analyzer enhance gas dehydration processes, sustaining compliance to quality specifications with increased throughput, safety, and efficiency.

  • Natural gas sweetening process

    H2S analyzer for natural gas sweetening

    H2S analyzer for natural gas sweetening

    Discover how Endress+Hauser H2S and CO2 analyzer solutions bring efficiency, lower costs, and greater long-term operational stability to the gas sweetening processes of the oil and gas industry.

  • Gas pipeline in Oil and Gas industry

    Detection of H2O in natural gas pipelines

    Detection of H2O in natural gas pipelines

    Find out how Endress+Hauser’s TDLAS moisture measurement solutions help to optimize throughput in your natural gas pipeline while maximizing safety and uptime.

  • TDLAS gas analyzer installed at plant

    Detection of H2S in natural gas pipelines

    Detection of H2S in natural gas pipelines

    Discover how Endress+Hauser’s TDLAS H2S analyzers help to boost the safety of your natural gas pipeline network by preventing corrosion and minimizing explosion risk.

  • Natural gas processing plant

    Detection of H2O in molecular sieve dryers

    Detection of H2O in molecular sieve dryers

    Learn how to increase efficiency and reduce costs in your LNG and NGL plant with Endress+Hauser’s TDLAS measurement solution for detecting H2O in molecular sieve dryers.

  • Clean water through exhaust gas wash water monitoring

    Monitoring of wash water from ship exhaust gas scrubbers

    Monitoring of wash water from ship exhaust gas scrubbers

    Do you or your customers need to monitor the wash water quality of a marine exhaust gas cleaning system (EGCS)? Discover our robust and compliant scrubber water monitoring system.

  • LNG composition measurement in tank run-down

    LNG composition measurement in tank run-down

    LNG composition measurement in tank run-down

    Discover how LNG composition measurement with Endress+Hauser Raman analyzer systems can optimize the liquefaction process and improve storage safety.
