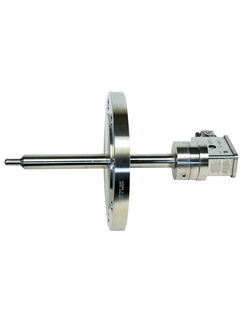

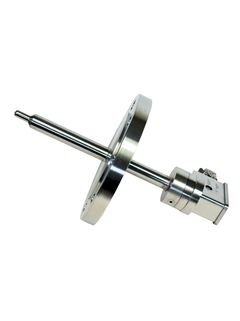

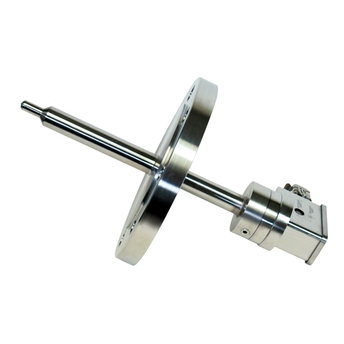

Product picture Raman Rxn-41 probe, top view aiming up left

Raman Rxn-41 probe

Offering simplified, reduced cost installation in the process environment

KR41
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-

This product is not available in this market.

Specs at a glance

  • Laser wavelength


    532 nm, 785 nm, 1000 nm

  • Wetted materials

    316L option
    Metal: 316L stainless steel
    Window: High-purity sapphire
    C276 option
    Metal: C276 alloy
    Window: High-purity sapphire
    Titanium option
    Metal: Grade 2 titanium
    Window: High-purity sapphire
    Hybrid metal combination option
    Metal: 316L stainless steel, C276 alloy
    Window: High-purity sapphire

  • Hazardous area certifications

    ATEX, CSA, IECEx

Field of application

The Raman Rxn-41 probe is a rugged, process insertion probe with no sample handling system. Its single cable design streamlines installation, eliminates risk scenarios, and minimizes installation cost for long fiber runs in the process environment. The Rxn-41 probe is ideally suited for use in chemical plants and refineries to measure batch or continuous flow production.  For direct measurements in cryogenic fluids, an optimized cryogenic version of the Raman Rxn-41 probe is available.

  • Chemical: reaction monitoring, blending, feed and final product monitoring

  • Polymer: polymerization reaction monitoring, polymer blending

  • Pharmaceutical: API reaction monitoring, crystallization, polymorph, drug substance production unit operation

  • Oil & Gas: fuel blending, fuel characterization

Benefits

  • Constructed to individual site requirements

  • Sealed probe design

  • Integrated “laser on” indicator

  • One in/one out fiber optics

  • Direct insertion compatibility

  • Meets Category 1 pressure equipment safety standards

  • Suitable for hazardous area/classified environments
