Oil leak detector
Transmitter NRR261

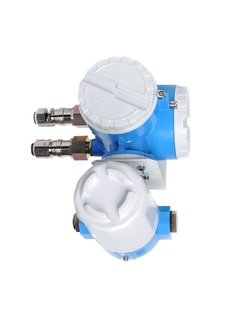

Oil leak detector - Transmitter NRR261 ©Endress+Hauser

Oil leak detection system provides excellent leak detection of petrochemicals, vegetable oils, etc.

Outdoor installed transmitter to output relay contact to receive the detection signal from the NAR300 float sensor.

  • Benefits

    • Outdoor installed transmitter to output relay contact to receive the detection signal from the NAR300 float sensor.

    • Exd [ia] certified transmitter

    • Delay trimmer prevents false alarm and relieves operators from disturbance

    • No moving parts, long-life

  • Field of application

    Ambient temperature: -20 to +60°C (-4 to +140°F)

Documents / Manuals / Software

  • Oil Leak Detector NAR300 System High Temperature - Technical Information

    This system is designed to be installed in a pit within an oil retaining
    dike, a plant, or a sump pit near a pump yard, where it can provide the
    ultimate in
    leak detection function for oil, petrochemicals or vegetable oils.
    The Oil Leak Detector NAR300 Systemfor high temperature utilizes
    detection function, conductive, to monitor the condition.
    This NAR300 system for high temperatureissuitable for a pit using
    steam draining conduit for anti-freezing and high temperatures (≤100°C).
    The accurate and minimal equipment configuration ensures safe operation
    of tank yard.

    Technical Information (TI)
  • Technical Information - Oil Leak Detector NAR300 System

    This system is designed to be installed in a pit within an oil retaining
    dike, a plant, or a sump pit near a pump yard, where it can provide the
    ultimate in
    leak detection function for oil, petrochemicals or vegetable oils.
    The oil leak detector NAR300 systemutilizes two separate detection
    functions, a conduction sensor and a tuning fork sensor, to monitor
    conditions.
    Highly accuratealarm recognition is attained through a 2-stage logic
    process, which ensures safe tank yard operation, with minimal equipment
    configuration.

    Technical Information (TI)
  • Oil Leak Detector NAR300 System High Temperature - Operating Instruction

    This system is designed to be installed in a pit within an oil retaining
    dike, a plant, or
    a sump pit near a pump yard, where it can provide the ultimate in leak
    detection
    function for oil, petrochemicals or vegetable oils.
    The Oil Leak Detector NAR300 System for high temperature utilizes
    detection
    function, conductive, to monitor the condition.
    This NAR300 system for high temperatureis suitable for a pit using
    steam draining
    conduit for anti-freezing and high temperatures (≤100°C).
    The accurate and minimal equipment configuration ensures safe operation
    of tank
    yard.

    Operating Instruction (BA)
  • NAR300 system - Operating Instruction

    Tank Gauging

    Operating Instruction (BA)
  • NAR300 system - Operating Instruction

    Tank Gauging

    Operating Instruction (BA)
  • Oil leak detector NAR300 System - Operating Instructions

    This system is designed to be installed in a pit within an oil retaining
    dike, a plant, or a
    sump pit near a pump yard, where it can provide the ultimate in leak
    detection function
    for oil, petrochemicals or vegetable oils.

    Operating Instruction (BA)
  • Safety Instructions NRR261

    FM

    Ex Safety Instructions (XA)
  • Converter NRR262 for Oil Leak Detector - Safety Instructions

    Converter NRR262 for Oil Leak Detector
    TIIS Ex ia IIB T4

    Ex Safety Instructions (XA)
  • Safety Instruction for NRR261 (ZB; 9001/01-280-85); ATEX/IECEx Applicable from orders after 1st Oct. 2018.

    Safety Instruction for NRR261 (ZB; 9001/01-280-85); ATEX/IECEx
    Applicable from orders after 1st Oct. 2018.

    Ex Safety Instructions (XA)
  • Oil Leak Detector NAR300 System - Safety Instructions

    Oil Leak Detector NAR300 System
    TIIS Ex ia IIB T4

    Ex Safety Instructions (XA)
  • Safety Instructions NRR261

    ATEX/IECEx

    Ex Safety Instructions (XA)
  • Converter NRR261 for Oil Leak Detector - Safety Instructions

    Converter NRR261 for Oil Leak Detector
    TIIS Ex d[ia] IIB T4

    Ex Safety Instructions (XA)
  • Converter NRR261 for oil leak detector NAR300 Ex db ia [ia Ga] (NRR261-4) Ex db [ia Gb] (NRR261-5) Safety Instructions

    Oil leak detector
    Converter NRR261 for NAR300 Oil leak detector for JPN Ex.
    If it export to outside of Japan, attach this XA.

    Ex Safety Instructions (XA)
  • Safety Instruction for NRR261 (ZB; 9001/01-280-85); FM Applicable from orders after 1st Oct. 2018.

    Safety Instruction for NRR261 (ZB; 9001/01-280-85); FM
    Applicable from orders after 1st Oct. 2018.

    Ex Safety Instructions (XA)
  • Tank Gauging

    Система коммерческого и оперативного учета продуктов
    в резервуарных парках.

    Competence Brochure (CP)
    07/15
    Russian

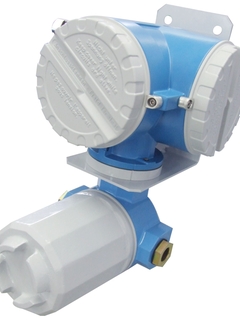

  • NRR261_picture

    Tank gauge _ Oil Leak Detector NAR300 System
    NRR261

    10/07
    English , Japanese
  • Sakura

    Product Code: NAR300-, NRR261-, NRR262-
    Declaration Number: EC_00736_01.19

    EU Declaration
    English
  • Sakura

    Product Code: NAR300-, NRR261-, NRR262-
    Declaration Number: EC_00541_01.17

    EU Declaration
    German , English , fr
  • Sakura, System&Gauging

    Product Code: NRR261-
    Approval Agency: TIIS
    Protection: Ex d [ia] IIB T4

    Explosion Protection
    Japanese
  • Sakura

    Product Code: NAR300-, NRR261-, NRR262-
    Region/Country: Japan
    Approval Agency: CML
    Protection: [Ex ia] IIB Txxx°C, Ex d [ia] IIB T6 Gb, Ex ia IIB T5 Ga, Ex db [ia Ga] IIB T4 Gb

    Explosion Protection
    Japanese
  • Sakura, System&Gauging

    Product Code: NRR261-
    Approval Agency: TIIS
    Protection: Ex d [ia] IIB T4

    Explosion Protection
    Japanese
  • Sakura

    Product Code: NAR300-, NRR261-, NRR262-
    Region/Country: Europe (ATEX)
    Approval Agency: FM
    Category: II 2 G, II 1/2 G
    Protection: [Ex ia] IIB Txxx°C Gb, Ex d [ia] IIB T4 Ga/Gb, Ex ia IIB T4 Ga/Gb

    Explosion Protection
    English
  • Sakura

    Product Code: NAR300-, NRR261-, NRR262-
    Region/Country: Europe (ATEX)
    Approval Agency: FM
    Category: II 2 G, II 1/2 G
    Protection: [Ex ia] IIB Txxx°C Gb, Ex d [ia] IIB T4 Ga/Gb, Ex ia IIB T4 Ga/Gb

    Explosion Protection
    English
  • Sakura

    Product Code: NAR300-, NRR261-, NRR262-
    Region/Country: USA
    Approval Agency: FM
    Category: I/1/C,D,E,F,G/T5, I/zone 0
    Protection: AIS, IS, XP/AIS, AEx [ia] IIB Txxx°C, AEx d [ia] IIB T4 Ga/Gb, AEx ia IIB T5 Ga

    Explosion Protection
    English
  • Sakura

    Product Code: NAR300-, NRR261-, NRR262-
    Region/Country: Europe (ATEX)
    Approval Agency: FM
    Category: II 2 G, II 1/2 G
    Protection: [Ex ia] IIB Txxx°C Gb, Ex d [ia] IIB T4 Ga/Gb, Ex ia IIB T4 Ga/Gb

    Explosion Protection
    English
  • Sakura

    Product Code: NAR300-, NRR261-, NRR262-
    Region/Country: Europe (ATEX)
    Approval Agency: FM
    Category: II 2 G, II 1/2 G
    Protection: [Ex ia] IIB Txxx°C Gb, Ex d [ia] IIB T4 Ga/Gb, Ex ia IIB T4 Ga/Gb

    Explosion Protection
    English
  • Sakura

    Product Code: NAR300-, NRR261-, NRR262-
    Region/Country: International (IECEx)
    Approval Agency: IECEx
    Protection: Ex d [ia] IIB T4 Ga/Gb

    Explosion Protection
    English
  • Sakura

    Product Code: NAR300-, NRR261-, NRR262-
    Region/Country: USA
    Approval Agency: FM
    Category: I/1/C,D,E,F,G/T5, I/zone 0
    Protection: AIS, IS, XP/AIS, AEx [ia] IIB Txxx°C, AEx d [ia] IIB T4 Ga/Gb, AEx ia IIB T5 Ga

    Explosion Protection
    English
  • Sakura

    Product Code: NAR300-, NRR261-, NRR262-
    Region/Country: International (IECEx)
    Approval Agency: IECEx
    Protection: Ex d [ia] IIB T4 Ga/Gb

    Explosion Protection
    English
  • Sakura

    Product Code: NAR300-, NRR261-, NRR262-
    Region/Country: International
    Approval Agency: TÜV

    Safety Integrity Level (SIL)
    English

Accessories / Spare parts

Nr
Order code
Specification
  • 11
    • Nr 11 Order code 017880-5026

      O-ring, terminal box, small, CR

      Size: D100mm, d3mm. Material: CR (Chloroprene Rubber). Part: terminal box, small. Usage: AT1/AT500, DRM9700, DU, NRR261/NRR263, NMT539 Converter, TGM5.

    • Nr 11 Order code 017803-0030

      O-ring, display cover, HNBR

      Size: D113.90mm, d3.53mm. Material: HNBR. Part: terminal/elec. compartment. Part: NMS/NRF display. Part: NRF/NRR/NAB terminal. Usage:NMS5/NMS7, NRF560, NRR261, NAB560.

  • 15
  • 21
    • Nr 21 Order code 56004306

      Cover NRR261/Ex Interface Box

      Small terminal box cover, AC, E+H gray. Usage: NRR261/Ex Interface Box.

    • Nr 21 Order code 017801-0133

      Cover, terminal box, Alu, NRF

      Terminal box cover. Color: E+H gray. Material: aluminium casting. Usage: NRF560, NRR261.

  • 31
    • Order code 56004438

      Internal assembly Ex I/F box, TIIS

      Usage: NAR300.

    • Order code 71276647

      NAR300 Sensor I/F assembly,FM/ATEX/IECEx

    • Order code 71409781

      Internal assy. NRR261, AC, ATEX IECEx FM

      Usage: NRR261.

    • Order code 71409782

      Internal assy. NRR261, DC, ATEX IECEx FM

      Usage: NRR261.

    • Order code 71420126

      Module NRR261, AC, Stahl

      Usage: NRR261. ATEX/IECEx/FM ordered from Nov. 2018. TIIS ordered from Feb. 2019.

    • Order code 71420127

      Module NRR261, DC, Stahl

      Usage: NRR261. ATEX/IECEx/FM ordered from Nov. 2018. TIIS ordered from Feb. 2019.
