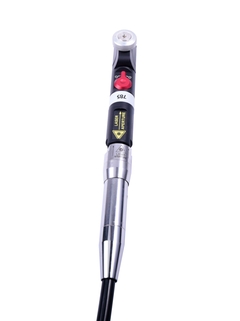

Product picture Raman Rxn-10 probe on side aiming right

Raman Rxn-10 probe

A versatile probe for your Raman spectroscopy needs

KR10
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-

This product is not available in this market.

Specs at a glance

  • Laser wavelength

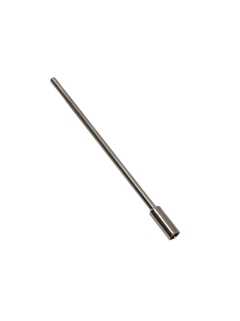

    With immersion optic:
    532 nm, 785 nm, 1000 nm
    With bIO-Optic:
    785 nm, 1000 nm
    With Raman optic system for single use:
    785 nm, 1000 nm

  • Body and window materials

    Rxn-10 probe body: 6061 aluminum, 316L stainless steel, and 303 stainless steel

Field of application

Designed for product and process development, the Rxn-10 probe is the workhorse of the Raman probe portfolio. It is trusted to deliver high performance Raman measurements across a wide spectral range. It is also compact, lightweight, and flexible, offering multi-purpose convenience for solids and liquids analysis in the laboratory environment. The Rxn-10 probe accepts a variety of interchangeable optics, making it a highly versatile and easily adaptable instrument in your laboratory toolbox.

  • Chemical: reaction monitoring, blending, catalysis, hydrocarbon speciation, process unit optimization

  • Polymer: polymerization reaction monitoring, extrusion monitoring, polymer blending

  • Pharmaceutical: API reaction monitoring, crystallization

  • Biopharmaceutical: cell culture and fermentation monitoring, optimization, control

  • Food & Beverage: zonal heterogeneity mapping of meats and fish

Benefits

  • Multipurpose use for both solids and liquids measurement

  • Lightweight and compact

  • Integrated laser safety interlock, including “laser on” indication and probe shutter

  • Flexible output compatible with a range of sampling options

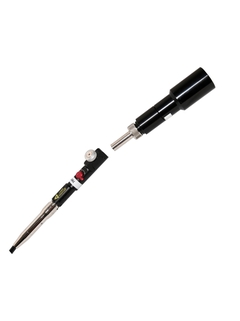

  • Easy switching of non-contact, immersion, and bioprocessing optics to suit a variety of applications

  • Wide spectral range, including access to the critical low-wavenumber region
