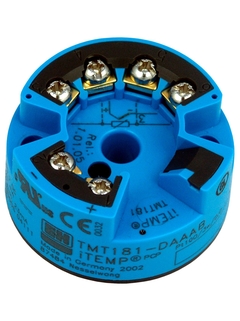

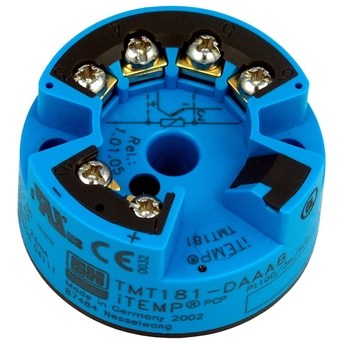

iTEMP TMT181
Temperature head transmitter

Transformation of sensor signals into stable and standardized output signals for all industries

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers converted signals from resistance thermometers (RTD) and thermocouples (TC), it also transfers resistance and voltage signals. The standardized output signal used for process measurement is a 4 to 20 mA signal. Swift and easy operation, visualization and maintenance by PC using operating software.

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue.

Individual configuration

Continue your selection from all possible options

Configure

Additional components

RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
More information
Compare
RIA14
Loop-powered field indicator

Excellent readable indication of a 4…20 mA signal on-site for a better process overview!
More information
Compare
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
More information
Compare
RB223
Loop powered passive barrier

One or two-channel barrier for the safe separation of 4...20 mA standard signal circuits
More information
Compare

Benefits
High accuracy in total ambient temperature range
Ex certification: ATEX Ex ia and dust ex zone 22 in compliance with EN 50281-1; FM IS; CSA IS
Fault signal on sensor break or short circuit, NAMUR NE 43 compliant

EMC to NAMUR NE 21, CE
Configuration...

Show more
High accuracy in total ambient temperature range
Ex certification: ATEX Ex ia and dust ex zone 22 in compliance with EN 50281-1; FM IS; CSA IS
Fault signal on sensor break or short circuit, NAMUR NE 43 compliant

EMC to NAMUR NE 21, CE
Configuration during measurement using configuration kit
Galvanic isolation
Output simulation

Marine approval

Show less

Field of application
PC programmable (PCP) temperature head transmitter for converting various input signals into a scalable 4 to 20 mA analog output signal
Input: Resistance thermometer (RTD), thermocouple (TC), resistance transmitter (Ω), voltage transmitter (mV)
...

Show more
PC programmable (PCP) temperature head transmitter for converting various input signals into a scalable 4 to 20 mA analog output signal
Input: Resistance thermometer (RTD), thermocouple (TC), resistance transmitter (Ω), voltage transmitter (mV)
Configuration using a PC with configuration kit (PC-software ReadWin^® 2000)

Show less

Features and specifications

Back

Details

Measuring principle

Head transmitter
Input

1 x RTD, TC, Ohm, mV
Output

1 x analog 4...20 mA
Auxiliary power supply

8...35 V DC (standard-version)

8...30 V DC (Ex-version)
Communication

PCP (pc-programmable)
Installation

Terminal head form B
Accuracy

(Pt100, -50...200 °C) <= 0,2 K

(Pt100, -58...392 °F) <= 0,4 °F
Galvanic isolation

yes
Certification

UL Ex IS, NI

Marine approval

GOST Ex i

FM IS,NI,Class I,Div.1+2,Group ABCD

CSA IS,NI,Class I,Div.1+2,Group ABCD

ATEX II3G Ex nA IIC T4/T5/T6

ATEX II1G EEx ia IIC T4/T5/T6

ATEX II3D

ATEX II1G EEx ia IIC T6, II3D

ATEX II3G Ex nA IIC T6, II3D

FM+CSA IS,NI,Class I,Div.1+2,Group ABC

CSA General Purpose

NEPSI Ex ia IIC T4-T6

NEPSI Ex nA II T4-T6

GL (German Lloyd)

Show more
Show less

Documents / Manuals / Software

Download type

Filter

Temperature head transmitter iTEMP PCP TMT 181
Universal head transmitter for resistance thermometers (RTD),
thermocouples, resistance and voltage transmitters, settable using aPC,
for installation in a sensor head (Form B)

Technical Information (TI)
Operating Manuals ReadWin 2000 (GB)
Operating Manuals ReadWin 2000

Operating Instruction (BA)
iTEMP® PCP TMT 181 Manuale operativo
iTEMP® PCP TMT 181

Operating Instruction (BA)
ReadWin® Quick Setup
Operating Manual
ReadWin® Quick Setup Temperature
PC Software

Operating Instruction (BA)
iTEMP® TMT181 PCP Operating instructions
Temperature head transmitter

Short Instruction (KA)

08/10

German , English , fr
ATEX Sicherheitshinweise ATEX Safety instructions
PC-programmierbarer Temperaturkopftransmitter iTEMP PCP TMT181; Montage
im Anschlusskopf Form B

Ex Safety Instructions (XA)
ATEX Safety instructions iTEMP®
Temperature head transmitter iTEMP® TMT181, TMT187, TMT188 Safety
instructions for electrical apparatus certified for use in explosi
on-hazardous areas (II 3D).

Ex Safety Instructions (XA)
iTEMP TMT181, TMT187, TMT188 ATEX: II 1G: Ex ia IIC T6/T5/T4 Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
Temperature transmitter 0ExiaIICT6...T4 X Safety Instructions
Safety Instructions EAC: 0ExiaIICT6...T4 X, iTEMP TMT181, TMT182,
TMT187, TMT188 temperature transmitter

Ex Safety Instructions (XA)
iTEMP TMT181, TMT187/188, TMT182 ATEX: II 3D: Ex ia IIIC T85 °C...T120 °C Dc II 3D: Ex tc IIIC T120 °C Dc II 3G: Ex nA IIC T6...T4 Gc Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
Control Drawing CSA iTEMP® 181, TMT187, TMT188
Temperature head transmitter iTEMP® TMT181, TMT187, TMT188
Installation Notes for hazardous locations

Certificate FM/CSA (ZD)
Control drawing FM iTEMP® TMT181, TMT187, TMT188
Temperature head transmitter iTEMP® TMT181, TMT187 TMT188
Installation Notes for hazardous locations

Certificate FM/CSA (ZD)
Control Drawing FM iTEMP 181, TMT187, TMT188
Temperature head transmitter iTEMP TMT181, TMT187, TMT188
Installation Notes for hazardous locations

Certificate FM/CSA (ZD)
温度测量
过程工业用温度传感器和温度变送器

Fields of Activities (FA)

12/14

Chinese
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznych

Fields of Activities (FA)

10/14

Polish
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.

Fields of Activities (FA)

06/13

Russian
Mesure de température
Capteurs et transmetteurs pour les industries de process

Fields of Activities (FA)

04/18

fr
Temperature measurement
Thermometers and transmitters for the process industry

Fields of Activities (FA)

04/18

English
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso

Fields of Activities (FA)

04/18

Spanish
Misura della temperatura
Termometri e trasmettitori
per l'industria di processo

Fields of Activities (FA)

04/18

Italian
Temperature measurement
Thermometers and transmitters for the process industry

Fields of Activities (FA)

03/19

English
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie

Fields of Activities (FA)

03/19

German
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry

Fields of Activities (FA)

03/13

English
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler

Fields of Activities (FA)

03/13

Turkish
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли

Competence Brochure (CP)

08/11

Russian
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленности

Competence Brochure (CP)

04/10

Russian
Ein Tankschiff schlägt Wellen
Solutions und Messtechnik (Füllstand und Temperatur). Problemstellung:
altes Schiff wurde umgebaut zu einem modernen, alte Technikdurch
neue ersetzt. E+H = Komplettlieferant: Gesamtverantwortung des
Projektmanagements für Engineering-Dienstleistungen inklusive
Programmierung der Steuerung und Visualisierungssystem, Lieferung der
Steuerung, Lieferung der Sensoren und Inbetriebnahme des gesamten
Systems. Erfasst u. visualisiert die Tankbefüllung sowie das
Tankmanagement und den Tiefgang des Schiffes. Automatische
Auswertung der Ladung. Vorteil: Zeitersparnis, Eliminierung von
Fehlerquellen.

Case Studies (CS)

01/11

German
A river barge makes waves
Befrag AG´s inland waterway tanker Brienzersee stationed in Birsfelden,
Switzerland, transports liquid goods reliably and safely over the Rhine
river.

Case Studies (CS)

01/11

English
Temperature transmitters and components (IN)
A new generation of transmitters and components offers simple
operation and greater control

Innovations (IN)

03/11

English
Kopftransmitter TMT181
Temperatur - Kopftransmitter (2-Draht) mit programmierbarem
Messbereich
und kundenspezifischer Linerarisierung, zur Montage im Anschlusskopf
Form DIN B

Tender Text

12/12

German
head transmitters
Product Code: TMT181-, TMT181L-
Declaration Number: HE_00462_01.17
Manufacturer Specification: RoHS

Manufacturer Declaration

English
ACCESSORIES: TC INSERT, head transmitters, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
Product Code: TMT85-, TPC100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
Declaration Number: HE_00237_03.15
Manufacturer Specification: Explosion protection, EMC

Manufacturer Declaration

Russian
head transmitters
Product Code: TMT181-, TMT187-, TMT188-
Declaration Number: EC_00181_01.16

EU Declaration

German , English , fr
head transmitters
Product Code: TMT181-, TMT182-, TMT187-, TMT188-
Declaration Number: EC_00160_01.16

EU Declaration

German , English , fr
ACCESSORIES, DIN Rail Transmitter, Field transmitter, head transmitters
Product Code: TMT127-, TMT128-, TMT142-, TMT162-, TMT180-, TMT180L-, TMT181-, TMT181L-, TMT182-, TMT182L-, TMT187-, TMT188-, TMT80-, TMT82-, TMT84-, TMT85-, OTMT127-, OTMT128-, OTMT187-, OTMT188-, OTMT80-, OTMT82-, OTMT84-, OTMT85-, TID10-, TMT111L-, TMT112-, TMT112L-, TMT121-, TMT121L-, TMT122-, TMT125-
Declaration Number: EC_00567_01.17

EU Declaration

German , English , fr
head transmitters
Product Code: TMT181-, TMT187-, TMT188-
Declaration Number: EC_00321_01.16

EU Declaration

German , English , fr
DIN Rail Transmitter, Field transmitter, head transmitters, RTD-thermometer, Process TC Heavy duty, Process RTD Heavy duty, process displays, power supply and barrier, contactors / transmitters
Product Code: TMT85-, TMT84-, TMT82-, TMT80-, TMT188-, TMT187-, TMT182-, TMT181-, TMT180-, TMT162-, TMT142-, TMT128-, TMT127-, TMT125-, TMT122-, TMT121-, TMT112-, TMT111-, TTR35-, TTR31-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR31-, TMR35-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC № RU D-DE.AG95.B.00650

Miscellaneous

Russian
DIN Rail Transmitter, Field transmitter, head transmitters, Process RTD Heavy duty, Process TC Heavy duty
Product Code: TMT82-, TMT80-, TMT188-, TMT187-, TMT182-, TMT181-, TMT180-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT111-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC BY_112 11.01. TP020 003 126

Miscellaneous

Russian
head transmitters
Product Code: TMT180-, TMT181-, TMT182-
Region/Country: China
Approval Agency: ACMA
Approval Number: MD-17038A/09/EN

Miscellaneous

English
head transmitters
Product Code: TMT188-, TMT187-, TMT181-
Region/Country: USA
Approval Agency: FM
Category: I/1,2/ABCD
Protection: NI, IS, AEx

Explosion Protection

English
head transmitters
Product Code: TMT188-, TMT187-, TMT181-
Region/Country: USA, Canada
Approval Agency: CSA
Category: I/1,2/ABCD
Protection: NI, IS, GP

Explosion Protection

English
DIN Rail Transmitter, Field transmitter, head transmitters, Process RTD direct in contact, Process RTD Heavy duty
Product Code: TMT85-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TMT162-, TMT142-, TMT128-, TMT127-, TMT125-, TMT122-, TMT121-, TMT112-, TMT111-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Protection: Ex d IIC T6...T4 Gb, Ex tb IIIC Txxx°C Db, Ex ia/d [ia] IIC T6...T4 Gb

Explosion Protection

Russian
head transmitters
Product Code: TMT181-, TMT187-, TMT188-
Region/Country: China
Approval Agency: NEPSI
Protection: Ex nA IIC T6...T4 Gc

Explosion Protection

Chinese
head transmitters
Product Code: TMT181-, TMT187-, TMT188-
Region/Country: China
Approval Agency: NEPSI
Protection: Ex ia IIC T6...T4 Ga/Gb

Explosion Protection

Chinese
DIN Rail Transmitter, Field transmitter, head transmitters
Product Code: TMT188-, TMT187-, TMT182-, TMT181-, TMT162-, TMT142-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT111-, OTMT85-, OTMT84-, OTMT82-
Protection: [Ex ia Ga] IIC T6...T4 Gb, Ex d IIC T6...T4 Ga, Ex d IIC T6...T4 Ga/Gb, Ex d IIC T6...T4 Gb, Ex ia IIC T6...T4 Ga, Ex tb IIIC IIIC

Explosion Protection

Russian
head transmitters
Product Code: TMT188-, TMT187-, TMT181-
Region/Country: Europe (ATEX)
Approval Agency: ZelmEx
Category: II1G
Protection: Ex ia IIC T6

Explosion Protection

German , English
DIN Rail Transmitter, Field transmitter, Low cost RTD General purpose, Process RTD Direct contact, Process RTD Explosion proof, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process RTD direct in contact, Process TC Explosion proof, RTD complete assembly, RTD thermometer Zone "0", RTD-thermometer, head transmitters
Product Code: TR44-, TR45-, TR47-, TR48-, TSM187-, TSM470-, TSM487-, TST310-, TST40N-, TST410-, TST414-, TST41N-, TST90-, TR15-, TMT121-, TMT122-, TMT127-, TMT128-, TMT162-, TMT180-, TMT181-, TMT182-, TMT188-, TR10-, TR11-, TR12-, TR13-
Region/Country: China
Approval Agency: NEPSI
Approval Number: CN_SMB_2004-T180

Metrology

Chinese
DIN Rail Transmitter, Field transmitter, head transmitters
Product Code: TMT85-, TMT84-, TMT82-, TMT80-, TMT188-, TMT187-, TMT182-, TMT181-, TMT180-, TMT162-, TMT142-, TMT128-, TMT127-, TMT125-, TMT122-, TMT121-, TMT112-, TMT111-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: OC.C.32.004.A NO 74639

Metrology

Russian
head transmitters
Product Code: TMT180-, TMT181-, TMT182-, TMT187-, TMT188-
Region/Country: International
Approval Agency: DNVGL

Marine

English
RTD-thermometer, process displays, Memo-Graph, Field transmitter, Ecograph, contactors / transmitters, head transmitters, DIN Rail Transmitter
Product Code: TMT162-, TMT142-, RIA14-, RIA16-, RIA45-, RIA46-, RMA42-, RSG35-, RSG45-, TMR31-, TMR35-, TMT85-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT111-, TMT180-
Region/Country: Canada, USA
Approval Agency: UL

Ordinary Location Product Safety

English

Show more
Show less

Accessories / Spare parts

Filter

Order code

Specification

- Order code

  The unit is not repairable

  Show details Show less
- Order code 51001112

  Spare part set for TMT181/187/188/182

  (4 screws, 6 springs, 10 spring rings)

  Show details Show less
- Order code 51000856

  DIN rail clip

  according to IEC 60715 for temperature head transmitters.

  Show details Show less
- Order code TXU10-

  Configuration kit TXU10-

  for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

  Show details Show less
- Order code READWIN-

  Readwin 2000 Operation + Read. software

  Show details Show less
- Order code TAF10-

  Field housing TAF10

  Application: E+H Head transmitter. Housing: Alu IP66, 100x100x60mm.

  Show details Show less

Show more
Show less

Predecessor
- THT1
- TMC134
- TMC138
- TMD831

Success stories

News
Protection of pumps... and people

Adding a few sensors to a pump system can help make pumps run more efficiently and help discover problems before they get too serious – and, they may also save a life
Read the full story
Upcoming events
18.05.2020 - 21.05.2020

APPEA 2020 Conference and Exhibition

Visit Endress+Hauser at the APPEA 2020 Conference and Exhibition

Upcoming events
22.06.2020 - 26.06.2020

Certified Training for PROFIBUS DP/PA Engineer

With the help of actual hands-on tasks you will learn how PROFIBUS fieldbus technology works in detail. At the end of the course you will be able to design and commission a PROFIBUS fieldbus network.

Upcoming events
21.07.2020 - 23.05.2020

QME 2020 - Queensland Mining & Engineering Expo

Visit Endress+Hauser at QME 2020

Upcoming events
25.08.2020 - 28.08.2020

ACPS 18th Biennial Conference

Visit Endress+Hauser at the 18th ACPS Conference in Tamworth

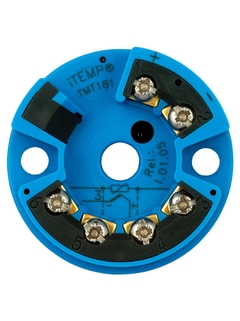

iTEMP TMT181
Temperature head transmitter
