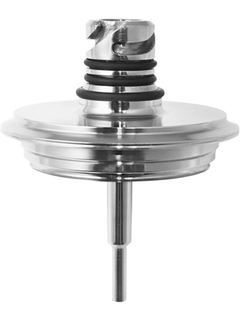

Product picture protection tube TT411

iTHERM ModuLine TT411
Welded thermowell

Metric thermowell for hygienic and aseptic applications in the food & beverages and pharmaceutical industries

TT411
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Max. process pressure (static)

    40 bar (580 psi)

  • Maximum standard immersion length

    4.000 mm (157,48")

  • Max. immersion length on request

    Not defined

Field of application

Best applicable for use in hygienic or aseptic pipes and containers or tanks even with very small immersion lengths. It meets increased protection requirements of the temperature sensor regarding physical and chemical effects. Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes.

Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

  • Pressure range up to 40 bar (580 psi)

  • For increased protection requirements of the temperature sensor regarding physical and chemical effects

  • For use in pipes and containers or tanks

  • Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes

Benefits

  • iTHERM QuickNeck – cost and time savings thanks to simple, tool-free
    recalibration of the insert used

  • Over 50 hygienic process connections

  • Global portfolio with metric and imperial versions

  • International certification: hygiene standards as per 3-A®, EHEDG, ASME BPE,
    FDA, TSE Certificate of Suitability

  • Optional: 1.4435 material, delta ferrite content < 1%

  • Fast response time owing to reduced tips with thin walls

  • State of the art Tee and Elbow elements, without welds and dead legs and with best in class hygienic design
