Conductive
Point level detection

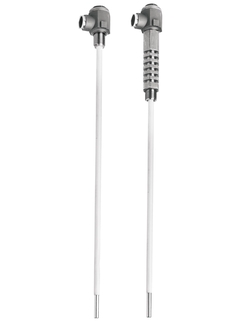

One rod probe 11375Z

Probe 11375Z ©Endress+Hauser

Simple point level detection of conductive liquids with higher temperatures

The 11375Z is a cost-effective and reliable solution for conductive point level detection in process or storage tanks for all kinds of liquids.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Process temperature

      -40 °C ... 135 °C
      (-40 °F ... 275 °F)

    • Process pressure absolute / max. overpressure limit

      Vacuum ... 50 bar
      (Vacuum ... 725 psi)

    • Min. conductivity of medium

      20 µS/cm

please wait Loading alternative products

Quick selection

Choose from our suggested options
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Long operating life and reliable function without wear since no moving parts in the tank

    • Cost-effective probe for conductive liquid

    • Probe can be shortened as required

    • Cooling adapter for higher fluid temperatures, as of 100°C

  • Field of application

    For conductive point level detection in process or storage tanks, for conductivity as of 0.02mS/cm. As overfill prevention with line monitoring even in Ex-area Zone 0 or as pump protection in pipes and two-point control.

    • Process connection: Thread

    • ...

Features and specifications

Back

Details

  • Measuring principle

    Conductive

  • Characteristic / Application

    One rod probe for high temperature and high pressure. corrosion resistant

  • Supply / Communication

    Relay

  • Ambient temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process temperature

    -40 °C ... 135 °C
    (-40 °F ... 275 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 50 bar
    (Vacuum ... 725 psi)

  • Min. conductivity of medium

    20 µS/cm

  • Main wetted parts

    PTFE, 316TI

  • Process connection

    G1/2

  • Sensor length

    0.05m ... 2m
    (2" ... 79")

  • Communication

    Relay

  • Certificates / Approvals

    ATEX

  • Components

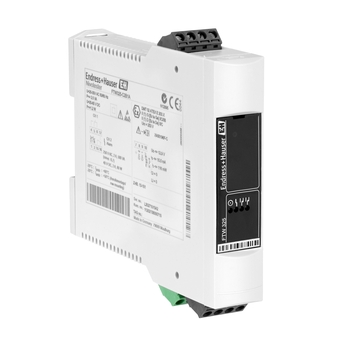

    Transmitter: FTW325

  • Application limits

    observe min. medium conductivity

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • Predecessor
