Name: Thermocouple TC62
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

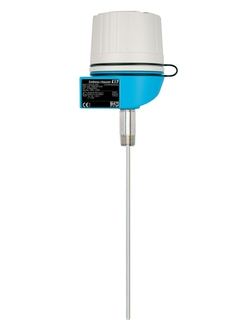

Product picture of thermocouple thermometer TC62

Predecessor

Omnigrad S TSC262
Omnigrad S TSC264
Omnigrad S TSC280

Omnigrad S TSC281
TC71

Successor

F

L

E

X
iTHERM ModuLine TM131

Metric RTD/TC thermometer with protection tube for a wide range of industrial applications
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

US style
modular temperature assembly
for heavy duty applications
suitable for hazardous areas
threaded process connection
with neck
to use with thermowell
Thermowell / protection tube

to use with thermowell
Insert / probe

replaceable (without process interruption)
Outer diameter protection tube / Insert

Insert Diameter
6,0 mm (0,24'')
Max. immersion length on request

up to 30.000,00 mm (1.181,10'')
Material protection tube/ thermowell

Not defined
Optional coating

Not defined
Process connection

male thread:
NPT1/2"
Tip shape

straight
Surface roughness Ra

0,8 μm (31,5 μin.)
Operating temperature range

Type K:
-40 °C ...1.100 °C
(-40 °F ...2.012 °F)
Type J:
-40 °C ...750 °C
(-40 °F ...1.382 °F)
Max. process pressure (static)

at 20 °C: 500 bar (7.252 psi)
Accuracy

class 1 acc. to IEC 60584
Response time

depending on configuration
t50 = 3 s
t90 = 7 s
Integration head transmitter

yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
Ex - approvals

ATEX II
IECEx
NEPSI
EAC Ex
Explosion proof
Certification

Gost Metrology
SIL (transmitter only)

Filter

Search spare parts by number in drawing

- Show drawing (PDF)

60 spare parts & accessories

Fixing kit cpl. TMT8x/7x (european)

further parts

Order code

71044061
Insert TPC100

Sensoric

Drawing number

Order code

A

TPC100-
Insert TPC300

Sensoric

Drawing number

Order code

A

TPC300-
Terminal head TA21H

Housing/housing accessories

Drawing number

Order code

D

TA21H-
iTEMP TMT85, Transmitter FF

Electronic (sensor)

Drawing number

Order code

B

TMT85-
iTEMP TMT84, Transmitter PA

Electronic (sensor)

Drawing number

Order code

B

TMT84-
iTEMP TMT82, Transmitter HART

Electronic (sensor)

Drawing number

Order code

B

TMT82-
iTEMP TMT85, Transmitter FF

Electronic (sensor)

Drawing number

Order code

B

TMT85-
iTEMP TMT84, Transmitter PA

Electronic (sensor)

Drawing number

Order code

B

TMT84-
iTEMP TMT82, Transmitter HART

Electronic (sensor)

Drawing number

Order code

B

TMT82-
Display Unit Head Transmitter

Electronic (sensor)

Drawing number

Order code

B

TID10-
Readwin 2000 Operation + Read. software

further parts

Order code

READWIN-
Spare parts kit 5xO-Ring 74x3 VMQ 75

further parts

Order code

71182599
Terminal Head TA30H

Housing/housing accessories

Drawing number

Order code

D

TA30H-
iTEMP TMT181, Head Transmitter PCP

Electronic (sensor)

Drawing number

Order code

B

TMT181-
Commubox FXA191

further parts

Order code

FXA191-
Commubox FXA195

further parts

Order code

FXA195-
iTEMP TMT184, headtransmitter PA

Electronic (sensor)

Drawing number

Order code

B

TMT184-
iTEMP TMT182, Head Transmitter HART

Electronic (sensor)

Drawing number

Order code

B

TMT182-
Thermo-conductive paste FDA-conform 30g

Order code

71249291
Thermoconductive Paste HSC 340, 100g

Order code

71312729
Term.block DIN B (42mm) 2 term. Spc 5 pc

Drawing number

Order code

C

71111510
Term.block DIN B (42mm) 4 term. 5 pc

Drawing number

Order code

C

71111514
Configuration Kit TXU10

Order code

TXU10-
